TQP4M9072 高线性串行控制6位, 31.5dB数字步进衰减器
The TriQuint TQP4M9072 is a high linearity, low insertion loss, 6-bit, 31.5 dB digital step attenuator (DSA) operating over the DC to 4 GHz frequency range. The digital step attenuator uses a single positive 5 V supply and has a serial periphery interface (SPITM) for changing attenuation states. This product maintains high attenuation accuracy over frequency and temperature. No external matching components are needed for the DSA. The product has an added feature of not requiring external AC ground capacitors for operation above 700 MHz. The part is available in a standard lead-free / green / RoHS-compliant 24-pin 4 x 4 mm QFN package. The TQP4M9071 is also available from TriQuint as a footprint and pin compatible DSA equivalent with a parallel control interface.
技术特性
- DC to 4 GHz
- 0.5 dB LSB steps to 31.5 dB
- +57 dBm Input IP3
- 1.7 dB insertion loss @ 2.2 GHz
- Serial control interface
- No requirement for external bypass capacitors for operation above 700 MHz
- 50 Ohm impedance
- +5V supply voltage
技术指标
| 频率(GHz) |
插入损耗(dB) |
范围(dB) |
P1dB(dBm) |
+V |
| 0 - 4 |
1.7 |
31.5 |
30 |
5 |

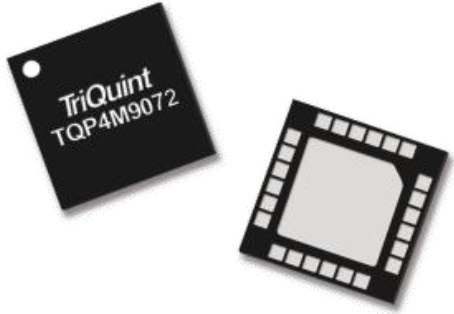

TQP4M9072 产品实物图
|
应用领域 APPLICATION
- 2G / 3G / 4G Wireless Infrastructure
- Base Stations
- Fixed Wireless
- General Purpose Wireless
- Repeaters
- Test Equipment and Sensors
订购信息 Ordering Information
| TQP4M9072 |
6-Bit, 31.5 dB DSA |
| TQP4M9072-PCB_ IF |
40-500MHz Evaluation Board |
| TQP4M9072-PCB_RF |
0.7-3.5GHz Evaluation Board |

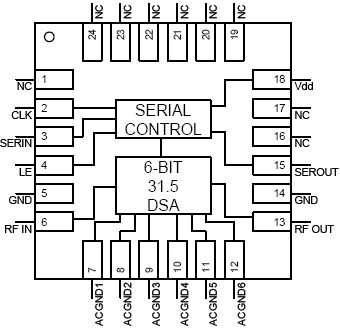

功能框图 Functional Block Diagram
|
