TQP8M9013 高线性 LNA 增益模块

The TQP8M9013 is a high dynamic range two-stage driver amplifier in a low-cost surface-mount package. The amplifier is able to achieve high performance across a broad range with +44 dBm OIP3, +28 dBm P1dB, and 2.9 dB Noise Figure while drawing 225 mA current at 2140 MHz. The product consists of a high linearity, low noise amplifier stage, followed by a ½W high linearity driver amplifier. The TQP8M9013 is available in a standard lead-free /green/RoHS-compliant 24-pin 4x4mm QFN package. All devices are 100% RF and DC tested. The TQP8M9013 is targeted for use as a driver amplifier in wireless infrastructure where high linearity, medium power, and high efficiency are required. Internal biasing allows the amplifier to maintain high linearity over temperature and operate directly off a single +5V supply. This combination makes the device an excellent candidate for transceiver line cards in current and next generation multi-carrier 3G/4G base stations or repeaters.

技术特性
  • 700-3800 MHz
  • 29.5 dB Gain @ 2140 MHz
  • +28 dBm P1dB
  • +44 dBm Output IP3
  • 2.9 dB Noise Figure
  • +5V Supply Voltage
  • MTTF > 1000 Years
应用领域 APPLICATION
  • Repeaters
  • Mobile Infrastructure
  • LTE / WCDMA / CDMA / EDGE
技术指标
频率(GHz) 增益(dB) P1dB (dBm) OIP3 (dBm) NF (dB) Vdd (V) Idd (mA) 封装信息
0.7 - 3.8 28.5 27.5 42 2.9 5 225 4x4mm QFN24
订购信息 Ordering Information
Part No.  Description
TQP8M9013  ½W5V 2-stage Amplifier
TQP8M9013-PCB900  900 MHz Evaluation Board
TQP8M9013-PCB2140  2140 MHz Evaluation Board

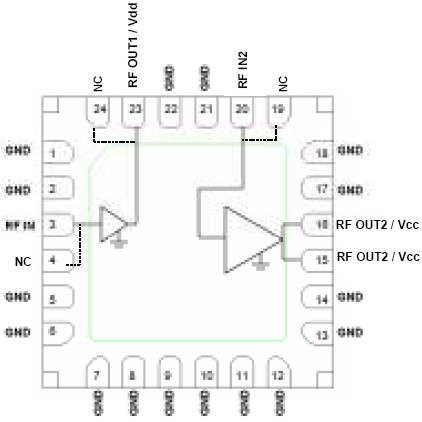

功能框图 Functional Block Diagram

TQP8M9013 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQP8M9013:S-参数
封装信息:pdf
材料清单 - TQP8M9013-PCB2140 :pdf
材料清单 - TQP8M9013-PCB900 :pdf
TQP8M9013布局文件
TQP8M9013 数据资料DataSheet下载:pdf Rev.V2 2 页
