TQS5202 双波段的802.11a/b/g系统多样性开关

The TriQuint TQS5202 is a dual-band double-pole double-throw switch configured for Tx-Rx and antenna diversity switching applications for the WLAN market. The device exhibits industry-leading insertion loss, isolation and power handling. It requires no fixed supply voltage and operates with a positive control voltage. The switch is manufactured using TriQuint's GaAs pHEMT process and is packaged in an industry standard 3.0 x 3.0 x 0.9 mm VQFN-12 lead-free package.

技术特性
  • Integrated Tx-Rx and diversity switch for dual-band 802.11 a / b / g WLAN systems
  • 1.0 to 6.0 GHz frequency coverage
  • Low insertion loss
  • High isolation
  • Positive control voltage
  • No supply voltage necessary
  • GaAs pHEMT technology
  • Leadless 3.0 x 3.0 x 0.9 mm lead-free SMT package
订购信息 Ordering Information
  • TQS5202
技术指标
频率(GHz) 插入损耗(dB) ISO(dB) P1dB(dBm) +V IQ(mA)
2.3 - 2.5
4.9 - 6.0		 0.8
0.95		 33
28		 33
29		 3V/0V -
应用领域 APPLICATION
  • 802.11a WLAN
  • 802.11b WLAN
  • 802.11g WLAN
  • Antenna Diversity Switching
  • TX-RX Switching

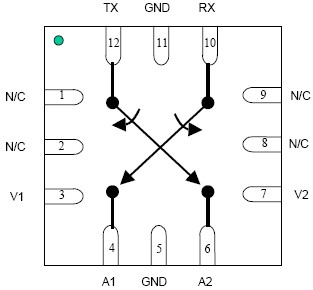

功能框图 Functional Block Diagram

TQS5202 功能框图
