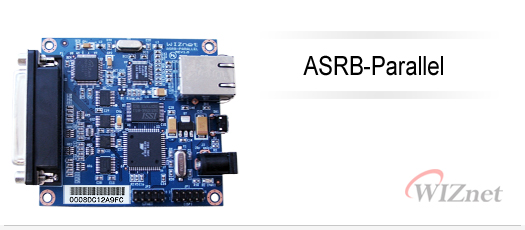

ASRB-Parallel Chip Evaluation Board
WIZnet Chip Evaluation Board
Feature
- Convert Parallel Printer to Ethernet Printer
- Support Compatibility mode(IEEE-1284)
- System Stability by using Fully Hardwired TCP/IP Chip
- ATmega 128 RISC AVR MCU - up to 16 MIPS throughput
- 128Kbyte In-System Programmable Flash ROM
- 32Kbyte External SRAM
- 4Kbyte In-System Programmable EEPROM
- Provide Schematics and Firmware Source Code
- Support DHCP
- Firmware upgrade through network
- Support Auto MDIX function (auto-detecting direct & crossover cable)
- RoHS Compliant
Specification
| Category | Specification | |
| Architecture | TCP / IP | W3150A+ |
| PHY | RTL8201CP (Ethernet PHY) | |
| MCU | ATMEL ATMEGA128 | |
| IEEE1284 | Using MCU I/O | |
| Network | Interface | 10/100 Mbps auto-sensing RJ-45 Connector |
| Protocol | TCP/IP, DHCP Client, HTTP | |
| Dimensions | 75mm x 70mm (PCB width x height) | |
| Input Voltage | 5V Adaptor | |
| Power Consumption | Under 500 mA | |
| Temperature | 0∩ ~ 70∩ (Operation), -40∩ ~ 85∩ (Storage) | |
| Humidity | 10 ~ 90 % | |
技术支持 Download
- ASRB Parallel - Hardware materials .zip
- ASRB Parallel - Firmware V1.0 .zip
- ASRB-Parallel Configuration Tool .zip
- ASRB-Parallel User's Guide V1.0 .zip
- How to capture the packet using Ethereal .PDF
