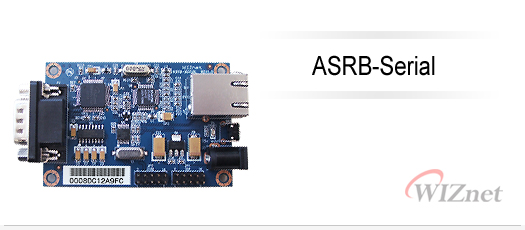

ASRB-Serial Chip Evaluation Board
WIZnet Chip Evaluation Board
Feature
-
All-made Reference Board for Serial Device
- Simple and quick network implementation
- Providing all source code, hardware schematic, and reference materials that are
dedicated to the function of Serial to Ethernet
- Available of firmware customization for various serial devices - Serial Command Support
- Simple command frame format
- Comprehensive & readable command set for network and serial settings
- On-site configuration without PC - High stability & reliability by using a W3150A+ WIZnet Chip, a fully-hardwired TCP/IP stack
- Easy and powerful configuration program
- 10/100Mbps Ethernet interface, Max. 230Kbps Serial interface
- RoHS compliant
Specification
| Category | Specification | |
| Architecture | TCP / IP | W3150A+ |
| PHY | RTL8201CP (Ethernet PHY) | |
| MCU | ATMEL ATMEGA128L | |
| Serial | RS-232(LVTTL) | |
| Network | Interface | 10/100 Mbps auto-sensing RJ-45 Connector |
| Protocol | TCP, UDP, IP, ARP, ICMP, MAC | |
| Serial | Signals | TXD, RXD, RTS, CTS, GND |
| Parameters | Parity : None, Even, Odd Data bits : 7, 8 Flow Control : RTS/CTS, XON/XOFF |
|
| Speed | Up to 230Kbps | |
| Dimensions | 75mm x 50mm (PCB width x height) | |
| Input Voltage | 5V Adaptor | |
| Power Consumption | 500 mA | |
| Temperature | 0∩ ~ 70∩ (Operation), -40∩ ~ 85∩ (Storage) | |
| Humidity | 10 ~ 90 % | |
技术支持 Download
- ASRB-Serial User's Guide V1.0.1 - ENG .PDF
- ASRB-Serial Hardware Materials .zip
- ASRB-Serial Firmware V1.0 .zip
- ASRB-Serial Device Terminal Program .zip
- ASRB-Serial Configuration Tool .zip
- How to capture the packet using Ethereal .PDF
