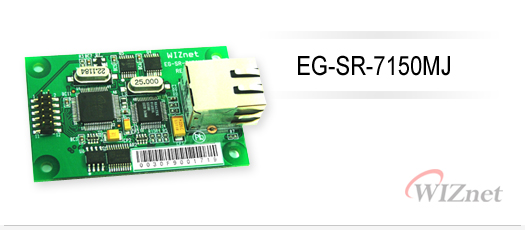

EG-SR-7150MJ Ethernet Gateway Serial-to-Ethernet
WIZnet Chip Network Module
Feature
- Ready-to-Go Serial to Ethernet Gateway module mounted with RJ-45 connector
- Serial
Command Support
* Simple Command Frame Format
* Comprehensive & Readable Command Set for Network and Serial Settings
* Available of on-site Configuration without PC - High Stability & Reliability by using W3150A WIZnet Chip (Fully Hardwired TCP/IP Stack)
- Easy and Powerful Configuration Program
- 10/100Mbps Ethernet Interface, Max, 230Kbps Serial Interface
Specification
| Architecture | TCP/IP | W3150A |
| PHY | RTL8201BL (Ethernet PHY) | |
| Serial | RS-232 (LVTTL) | |
| MCU | AT89C51RC2 (8bit MCU and 32K Flash) | |
| Memory | SRAM (32K Bytes) | |
| Network | Interface | 10/100 Mbps auto-sensing, RJ-45 Connector |
| Protocol | TCP, UDP, IP ARP, ICMP, MAC, PPPoE | |
| Serial | Signals | TXD, RXD, RTS, CTS, GND |
| Parameters | Parity : None, Even, Odd Data bits : 7, 8 Flow Control : RTS/CTS, XON/XOFF |
|
| Speed | Up to 230Kbps | |
| Dimensions | 40mm x 55mm x 17mm | |
| Connector Type | 2mm Pitch 12 pins, 55x40mm | |
| Input Voltage | 3.3V Internal Operation | |
| Power Consumption | 150mA | |
| Temperature | 0∩ ~ 70∩ (Operation), -40∩ ~ 85∩ (Storage) | |
| Humidity | 10 ~ 90 % |
Ordering information
| Model | Description |
| EG-SR-7150MJ | Serial-to-Ethernet Gateway Module |
| EG-SR-7150MJ-EVB | Evaluation Board for EG-SR-7150MJ |
技术支持 Download
- EG-SR-7150MJ F/W 1.4 .ZIP
- EG-SR-7150MJ F/W 1.3 .ZIP
- EG-SR-7150MJ F/W 1.2 (hex) .ZIP
- EG-SR-7150MJ F/W 1.2 .ZIP
- EG-SR-7150MJ F/W 1.1 .ZIP
- EG-SR-7150MJ User's Manual V1.1.PDF
- Differenes btw EG-SR-7100A EG-SR-7150MJ .PDF
- Configuration tool for EG-SR-7150MJ .ZIP
- Configtool source code .ZIP
- EG-SR-7150MJ Brochure .PDF
- How to capture the packet using Ethereal .PDF
