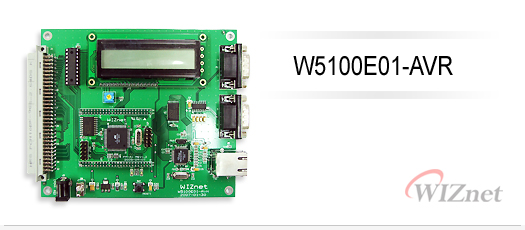

W5100E01-AVR Chip Evaluation Board

WIZnet Chip Evaluation Board
WIZ100SR-EVB Ethernet Gateway Serial-to-Ethernet Evaluation Board
Feature
  1. Data Transfer up to 12Mbps with Atmega128(16MHz)
  2. Internet Application Protocols : ANSI C Source Codes such as TCP, UDP, DHCP
  3. By using external 96pin connectors, AVR’s all pins can be used coping with developer’s needs
  4. Available of testing SPI Interface
  5. Provides various application source codes : Loopback,Webserver, Ping
  6. Support ISP JTAG Interface
Specification
  Category Specification
W5100E01-AVR UART RS232 2 Serial Port
Display 16X2 Text LCD
PAL Address Decoder
TCP/IP W5100 (PHY embedded)
MagJack RD-125BAG1A, Transformer Integrated (1:1).Link ACT LEDs
PM-A1 MCU Atmega128
- 128K Bytes Flash
- 4K Bytes EEPROM
CLOCK 8MHz Crystal
External Memory SRAM (32K Bytes)

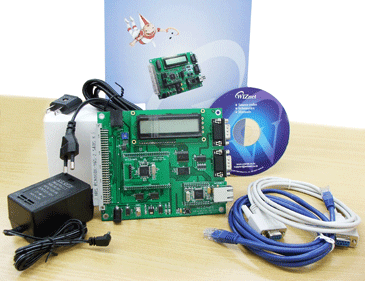

Contents
W5100E01-AVR - W5100E01- AVR +PM-A1
- CD (Source codes, Schematics, Manuals)
- 5V 2A Power Adapter
- Serial cable, UTP cable
- AVR ISP cable (Option)
Development Environment

Compiler : All source codes are developed by GCC Compiler
Firmware programming : ISP Cable

Ordering information
Part Number Description
W5100E01-AVR W5100E01-AVR + PM-A1
AVR ISP cable
技术支持 Download
  1. Firmware Source Code of W5100E01-AVR .zip
  2. The Partlist of W5100E01-AVR .zip
  3. The Address Decode Source of W5100E01-AVR .zip
  4. W5100E01-AVR Hardware Schematic .zip
  5. W5100E01-AVR User's Guide V1.0 Korean .zip
  6. W5100E01-AVR User's Guide V1.0 English .PDF
  7. How to capture the packet using Ethereal .PDF
  8. How to capture the packet using Ethereal .PDF
