ADXL193: Single-Axis, High-g, iMEMS® Accelerometers

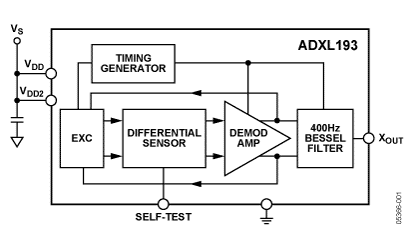

ADXL193 功能框图The ADXL193 is a small (5 mm x 5 mm x 2 mm ceramic LCC package), low power (1.5 mA current at 5V), single axis high-g iMEMS® accelerometer designed to sense shock and vibration at g-ranges of ±120g or ±250g.

Three models are available and include AD22282-A-R2 (±120g) and AD22283-B-R2 (±250g). These products are used in a variety of crash/impact detection applications which include automotive airbag crash detection systems as well as medical, industrial, and sports equipment.

技术特性
  • Complete acceleration measurement system on a single monolithic IC
  • Available ±120g or ±250g output full-scale ranges
  • Full differential sensor and circuitry for high rsistance to EMI/RFI
  • Environmentally robust packaging
  • Complete mechanical and electrical self-test on digital command
  • Output ratiometric to supply
  • Sensitive axes in the plane of the chip
  • High linearity (0.2% of full-scale)
  • Frequency response down to dc
  • Low noise
  • Low power consumption (1.5 mA)
  • 400 Hz, 2-pole Bessel filter
技术指标
  • # of Axes: 1
  • Range: +/- 250g
  • Sensitivity: 8 mV/g
  • Sensitivity Accuracy (%): �5n/a
  • Output Type: Analog
  • Typical Bandwidth (kHz): 0.4kHz
  • Noise Density (µg/rtHz): 5000
  • Supply Current : 1.5mA
应用领域
  • Crash or Impact Detection
  • Vibration Control and Monitoring
  • Shock Detection
订购指南
产品型号 封装 引脚 温度范围 包装和数量 报价*(100-499) 报价*1000 pcs RoHS
AD22282-A 产品状态: 量产 8 ld LCC 8 商业 Reel, 3000 $ 0.00 $ 6.68 E  材料信息
AD22282-A-R2 产品状态: 量产 8 ld LCC 8 商业 Reel, 250 $ 7.62 $ 6.68 E  材料信息
AD22283-B 产品状态: 联络BDTIC 8 ld LCC 8 商业 Reel, 3000 $ 0.00 $ 6.68 E  材料信息
AD22283-B-R2 产品状态: 量产 8 ld LCC 8 商业 Reel, 250 $ 7.62 $ 6.68 E  材料信息
AD22393Z-RL 产品状态: 量产 8 ld LCC 8 - Reel, 3000 - $ 6.68 E  材料信息
