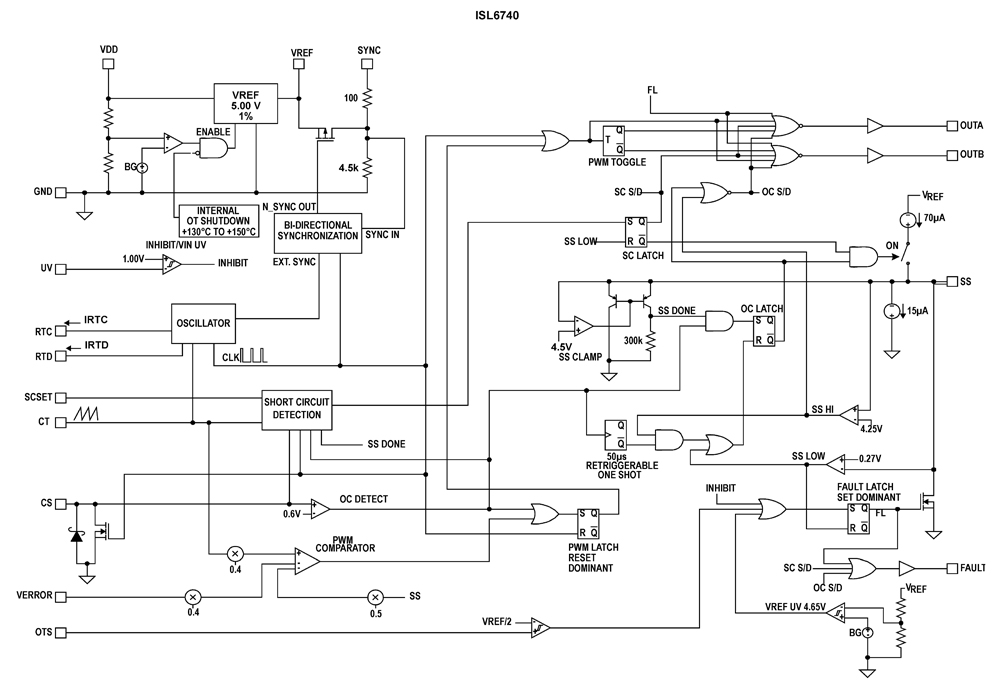

The ISL6740, ISL6741 family of adjustable frequency, low power, pulse width modulating (PWM) voltage mode (ISL6740) and current mode (ISL6741) controllers is designed for a wide range of power conversion applications using half-bridge, full bridge, and push-pull configurations. These controllers provide an extremely flexible oscillator that allows precise control of frequency, duty cycle, and deadtime.

This advanced BiCMOS design features low operating current, adjustable switching frequency up to 1MHz, adjustable soft-start, internal and external over-temperature protection, fault annunciation, and a bidirectional SYNC signal that allows the oscillator to be locked to paralleled units or to an external clock for noise sensitive applications.

Key Features

• Precision Duty Cycle and Deadtime Control
• 95µA Startup Current
• Adjustable Delayed Overcurrent Shutdown and Re-start (ISL6740)
• Adjustable Short Circuit Shutdown and Re-start
• Adjustable Oscillator Frequency Up to 2MHz
• Bidirectional Synchronization
• Inhibit Signal
• Internal Over-Temperature Protection
• System Over-Temperature Protection Using a Thermistor or Sensor
• Adjustable Soft-start
• Adjustable Input Undervoltage Lockout
• Fault Signal
• Tight Tolerance Voltage Reference Over Line, Load, and Temperature
• Pb-Free Available (RoHS Compliant)

Applications

• Telecom and Datacom Power
• Wireless Base Station Power
• File Server Power
• Industrial Power Systems
• DC Transformers and Buss Regulators
