ISL84524: Low-Voltage, Single Supply, 4 to 1 Multiplexer and DPDT Analog Switches

The Intersil ISL84524 and ISL84525 devices are precision, bidirectional, analog switches configured as a 4 channel multiplexer/demultiplexer (ISL84524) and a double pole/double throw (DPDT) switch (ISL84525) designed to operate from a single +2V to +12V supply. Both have an inhibit pin to simultaneously open all signal paths.

ON resistance is 200Ω with a +5V supply and 500Ω with a +3V supply. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25°C or 25nA at +85°C.

All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS logic compatibility when using a single +5V supply.

The ISL84524 is a 4 to 1 multiplexer device. The ISL84525 is a DPDT, which is perfect for use in 2-to-1 multiplexer applications.

Table 1 summarizes the performance of this family. For higher performance, see the ISL43640 and ISL43410 data sheets.

Key Features
  • Drop-in Replacements for MAX4524 and MAX4525
  • ON Resistance (RON) Max, VS = 5V: 200Ω
  • ON Resistance (RON) Max, VS = 3V: 500Ω
  • RON Matching Between Channels: <8Ω
  • Low Charge Injection: 5pC (Max)
  • Single Supply Operation: +2V to +12V
  • Low Power Consumption (PD): <3µW
  • Fast Switching Action (VS = 5V)
    • tON: 90ns
    • tOFF: 40ns
  • Guaranteed Max Off-leakage @ 5V: 25nA
  • Guaranteed Break-Before-Make
  • TTL, CMOS Compatible
  • Available in 10 Ld MSOP Package
  • Pb-free available
Applications
  • Battery Powered, Handheld, and Portable Equipment
  • Communications Systems
    • Radios
    • Telecom Infrastructure
    • ADSL, VDSL Modems
  • Test Equipment
    • Medical Ultrasound
    • Magnetic Resonance Image
    • CT and PET Scanners
    • ATE
    • Electrocardiograph
  • Audio and Video Signal Routing
  • Various Circuits
    • +3V/+5V DACs and ADCs
    • Sample and Hold Circuits
    • Operational Amplifier Gain Switching Networks
    • High Frequency Analog Switching
    • High Speed Multiplexing
    • Integrator Reset Circuits

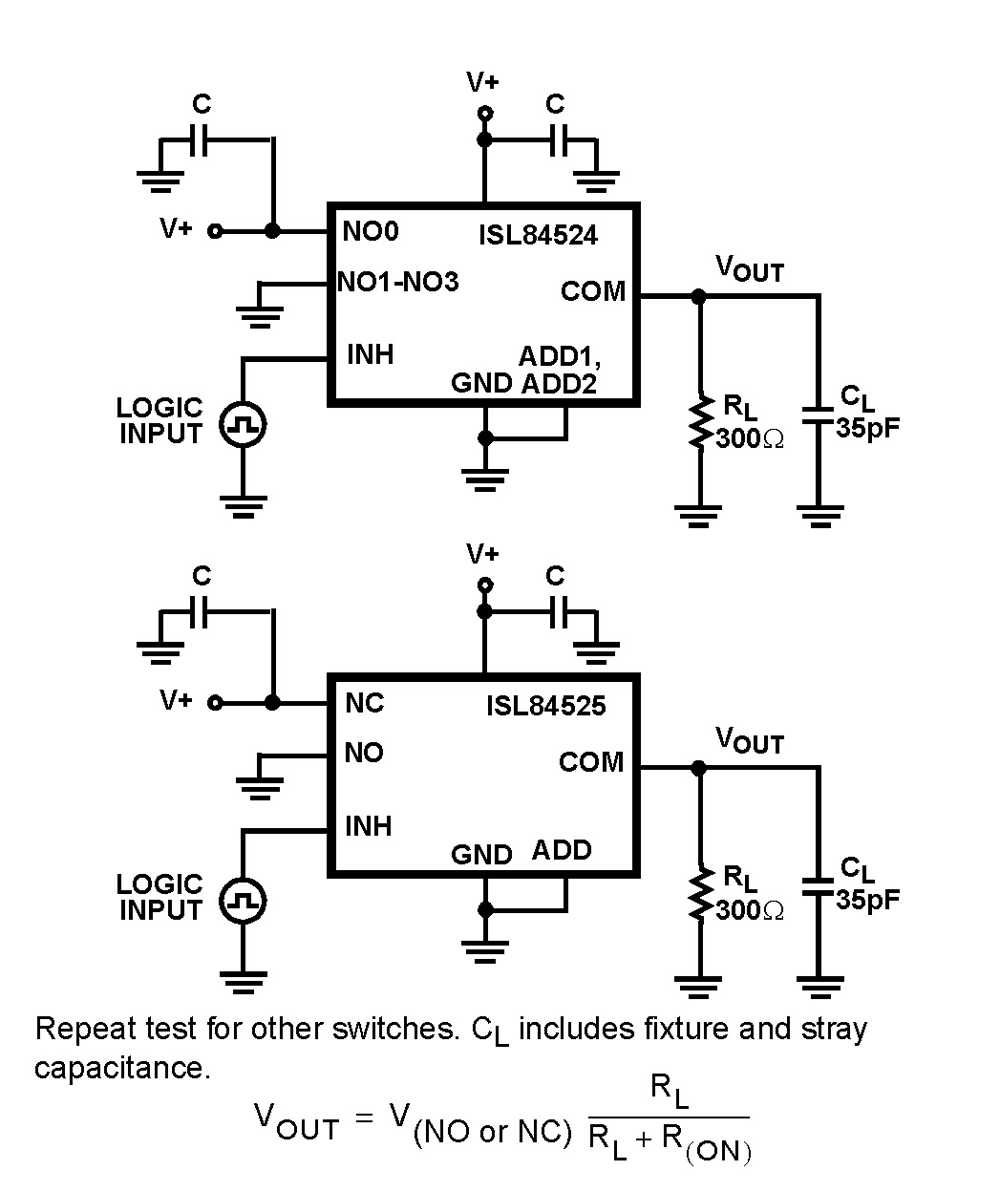

Typical Diagram
Application Notes
TitleTypeUpdatedSizeOther Languages
AN535: Design Considerations for a Data Acquisition System (DAS)PDF13 Nov 2014851 KB
Datasheets
TitleTypeUpdatedSizeOther Languages
ISL84524, ISL84525 DatasheetPDF17 Nov 2014444 KB
Order Information
Part NumberPackage TypeWeight(g)PinsMSL RatingPeak Temp (°C)RoHS Status
ISL84524IU10 Ld MSOP0.026101240
ISL84524IU-T10 Ld MSOP T+R0.026101240
ISL84524IUZ10 Ld MSOP0.026102260RoHS
ISL84524IUZ-T10 Ld MSOP T+R0.026102260RoHS
