LT1022 - High Speed, Precision JFET Input Operational Amplifier

The LT™1022 JFET input operational amplifier combines high speed and precision performance.

A 26V/µs slew rate and 8.5MHz gain-bandwidth product are simultaneously achieved with offset voltage of typically 80µV, 1.5µV/°C drift, bias currents of 50pA at 70°C, 500pA at 125°C. The output delivers 20mA of load current without gain degradation.

The 250µV maximum offset voltage specification represents less than 1/2 least significant bit error in a 14-bit, 10V system.

The LT1022A meets or exceeds all OP-16A and OP-16E specifications. It is faster and more accurate without stability problems at cold temperatures.

The LT1022 can be used as the output amplifier for 12-bit current output D/A converters, as shown below.

For a more accurate, lower power dissipation, but slower JFET input op amp, please refer to the LT1055 data sheet.

特点
  • Guaranteed Slew Rate 23V/µs Min.
  • Guaranteed Offset Voltage 250µV Max-55°C to 125°C 750µV Max.
  • Guaranteed Drift 5µV/°C Max.
  • Guaranteed Bias Current70°C 180pA Max.125°C 4nA Max.
  • Gain-Bandwidth Product: 8.5MHz Typ
  • Settling Time to 0.05% (10V Step): 0.9µs Typ
典型应用
LT1022 Typical Application

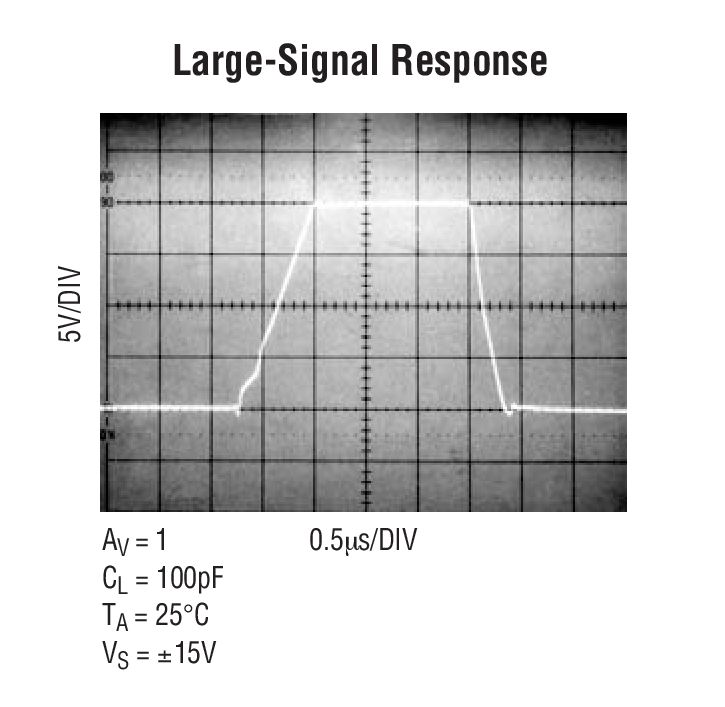

LT1022 Typical Application
应用
  • Fast D/A Output Amplifiers (12, 14, 16 Bits)
  • High Speed Instrumentation
  • Fast, Precision Sample and Hold
  • Voltage-to-Frequency Converters
  • Logarithmic Amplifiers
封装信息

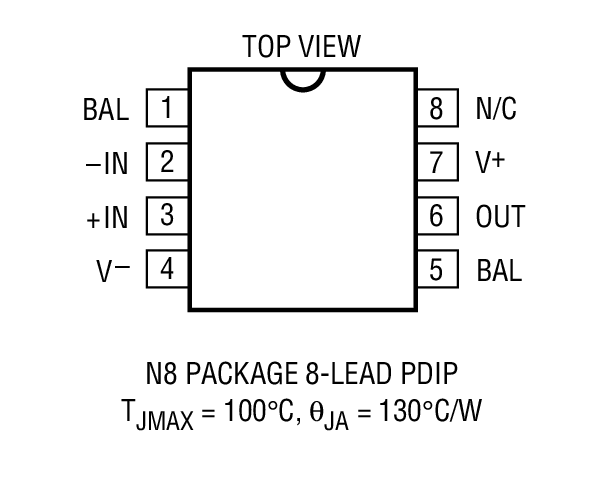

LT1022 Package Drawing
