LT1190 - Ultrahigh Speed Operational Amplifier

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download complete datasheet for Details

The LT®1190 is a video operational amplifier optimized for operation on ±5V, and a single 5V supply. Unlike many high speed amplifiers, this amplifier features high open-loop gain, over 85dB, and the ability to drive heavy loads to a full-power bandwidth of 20MHz at 7VP-P. In addition to its very fast slew rate, the LT1190 features a unity-gain-stable bandwidth of 50MHz and a 75° phase margin, making it extremely easy to use.

Because the LT1190 is a true operational amplifier, it is an ideal choice for wideband signal conditioning, fast integrators, active filters, and applications requiring speed, accuracy and low cost.

The LT1190 is available in 8-pin PDIP and SO packages with standard pinouts. The normally unused Pin 5 is used for a shutdown feature that shuts off the output and reduces power dissipation to a mere 15mW.

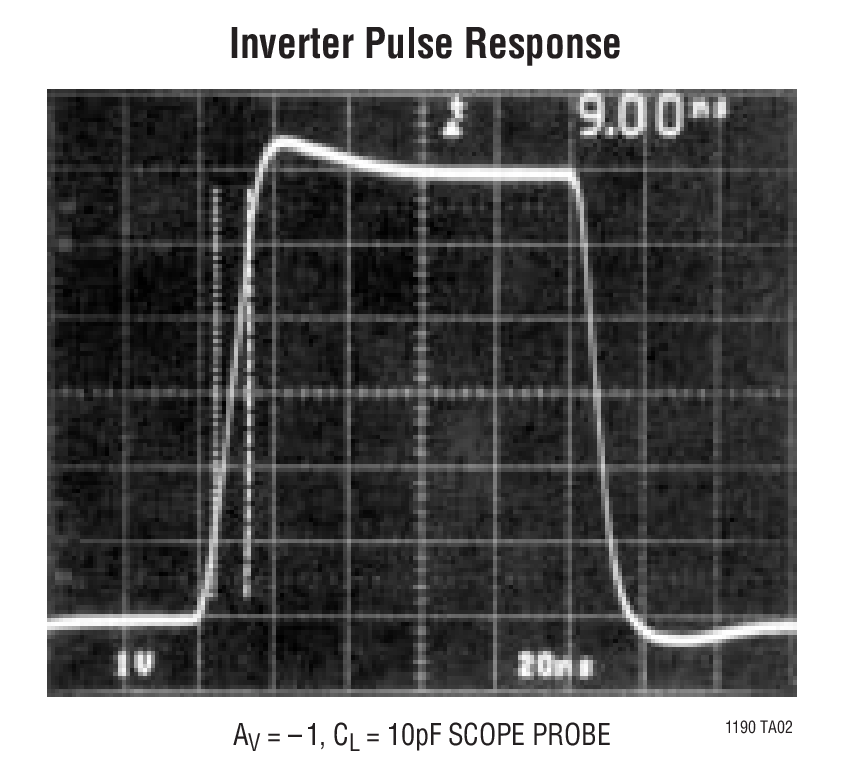

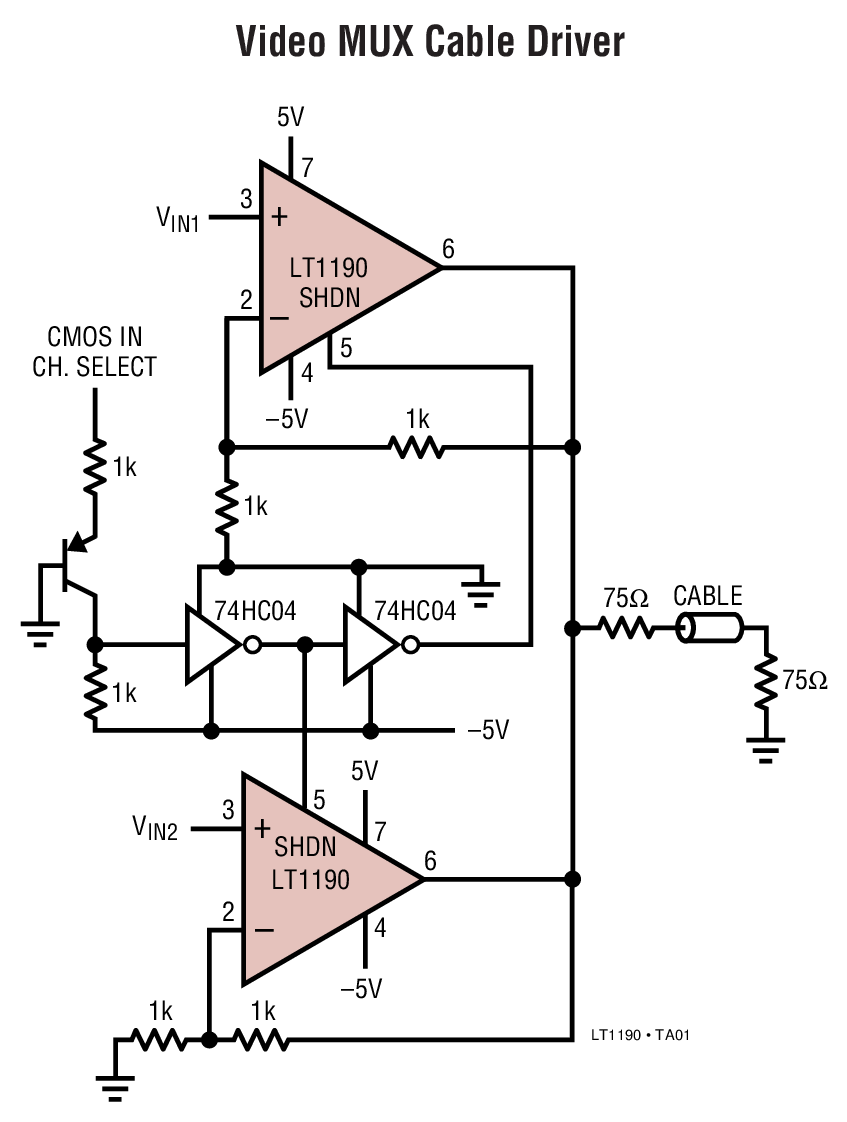

特点 Gain Bandwidth Product, AV=+1: 50MHz Slew Rate 450V/µs Low Cost Output Current ±50mA Settling Time 140ns to 0.1% Differential Gain Error 0.1%, (RL=1k) Differential Phase Error 0.06°, (RL=1k) High Open Loop Gain 15V/mV Min Single Supply +5V Operation Output Shutdown 典型应用

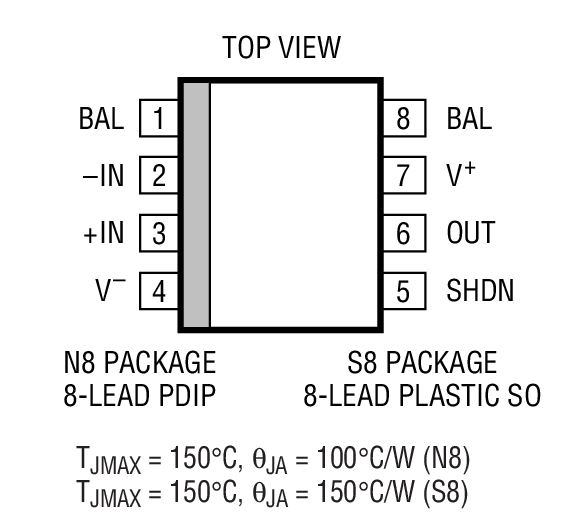

应用 Video Cable Drivers Video Signal Processing Fast Integrators Pulse Amplifiers D/A Current to Voltage Conversion 封装信息

演示电路板
