LT1193 - Video Difference Amplifier
The LT™1193 is a video difference amplifier optimized for operation on ±5V and a single 5V supply. This versatile amplifier features uncommitted high input impedance (+) and (�) inputs, and can be used in differential or single ended configurations. Additionally, a second set of inputs give gain adjustment and DC control to the differential amplifier.
The LT1193µs high slew rate, 500V/µs, wide bandwidth, 80MHz, and �50mA output current make it ideal for driving cables directly. The shutdown feature reduces the power dissipation to a mere 15mW and allows multiple amplifiers to drive the same cable.
The LT1193 is available in 8-pin PDIP and SO packages.
特点

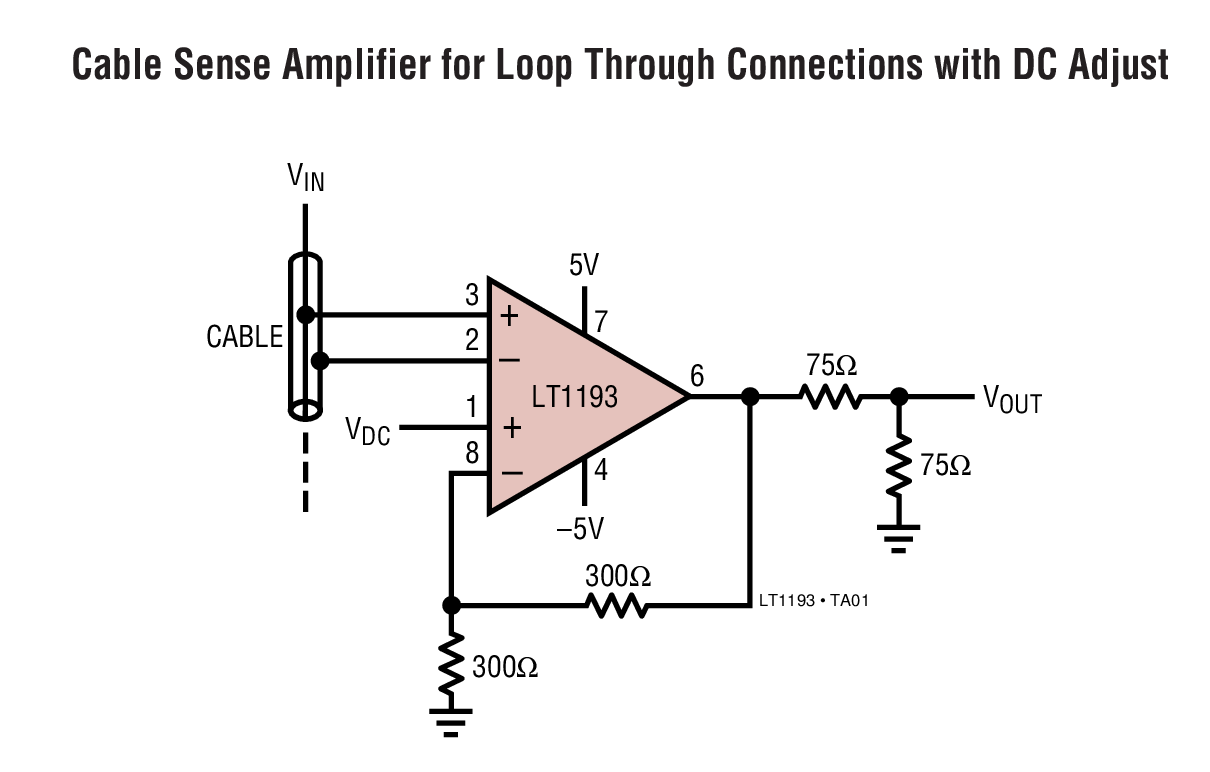

典型应用 | 应用

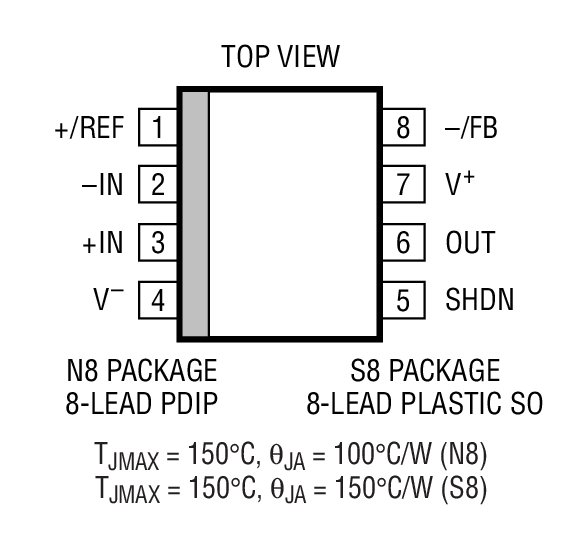

封装信息 |
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
|---|---|---|---|---|
| LT1193CN8#PBF | N-8 | C | $3.67 | $2.90 |
| LT1193CS8#PBF | SO-8 | C | $4.08 | $3.30 |
| LT1193CS8#TRPBF | SO-8 | C | $3.36 | |
| LT1193IS8#PBF | SO-8 | I | $4.10 | $3.65 |
| LT1193IS8#TRPBF | SO-8 | I | $3.71 |
演示电路板
| 器件型号 | 描述 | 价格 |
|---|---|---|
| DC417B | DIP8, MS8, S8, SOT23-6 | Multi-Footprint General Purpose Board for Single Op. Amp | $25.00 |
