LT1223 - 100MHz Current Feedback Amplifier

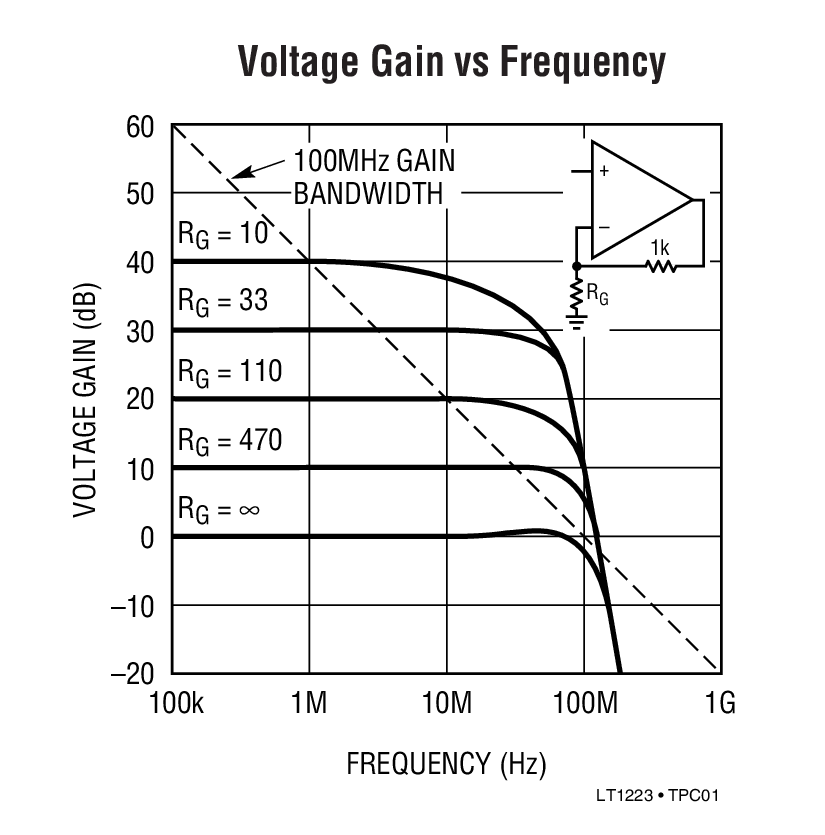

The LT®1223 is a 100MHz current feedback amplifier with very good DC characteristics. The LT1223's high slew rate, 1000V/µs, wide supply range, ±15V, and large output drive, ±50mA, make it ideal for driving analog signals over double-terminated cables. The current feedback amplifier has high gain bandwidth at high gains, unlike conventional op amps.

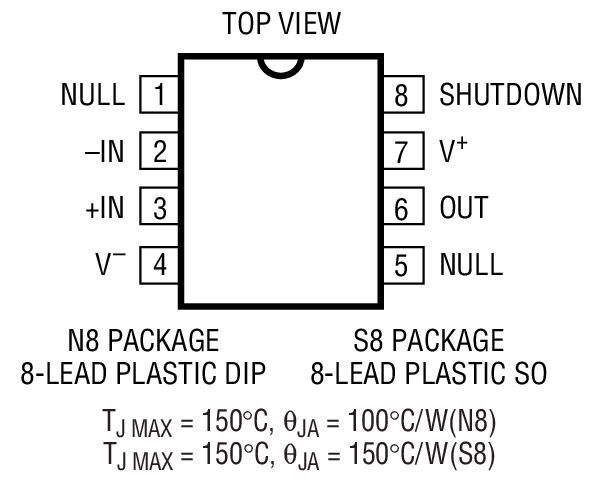

The LT1223 comes in the industry standard pinout and can upgrade the performance of many older products.
The LT1223 is manufactured on Linear Technology's proprietary complementary bipolar process.
特点

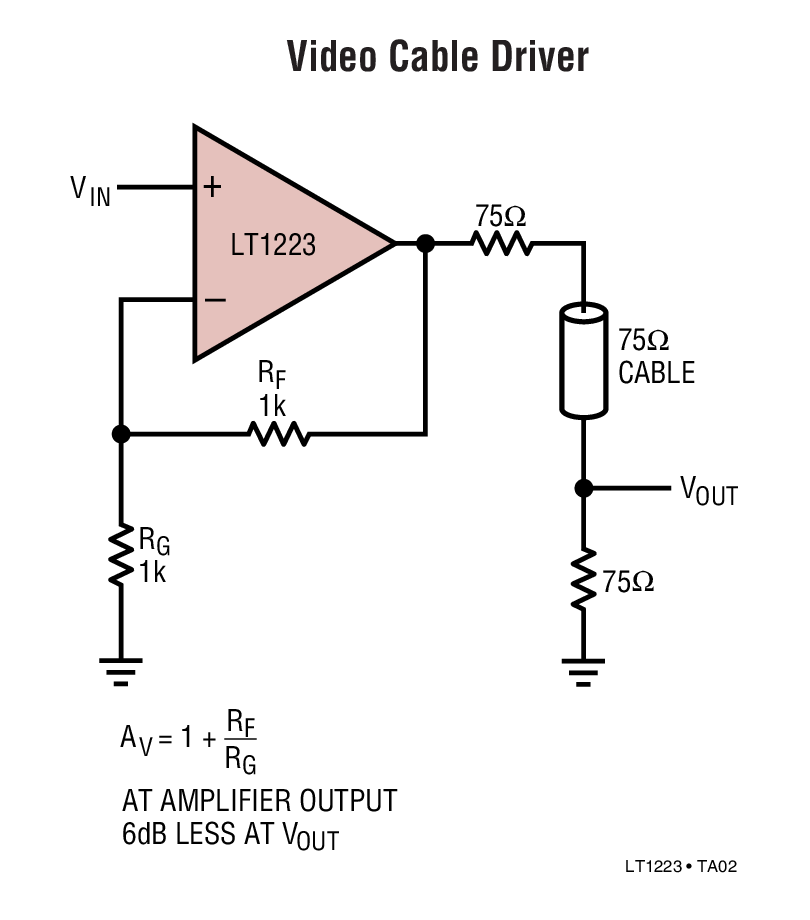

典型应用  | 应用
封装信息 |
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
|---|---|---|---|---|
| LT1223CN8#PBF | N-8 | C | $3.58 | $2.85 |
| LT1223CS8#PBF | SO-8 | C | $4.08 | $3.30 |
| LT1223CS8#TRPBF | SO-8 | C | $3.36 |
演示电路板
| 器件型号 | 描述 | 价格 |
|---|---|---|
| DC417B | DIP8, MS8, S8, SOT23-6 | Multi-Footprint General Purpose Board for Single Op. Amp | $25.00 |
- AN118 - High Voltage, Low Noise, DC/DC Converters
- AN47 - High Speed Amplifier Techniques
- AN57 - Video Circuit Collection
- AN70 - A Monolithic Switching Regulator with 100µV Output Noise
- DN101 - A Precision Wideband Current Probe for LCD Backlight Measurement
- DN46 - Current Feedback Amplifier Do's and Don'ts
- DN50 - High Frequency Amplifier Evaluation Board
- DN57 - Video Circuits Collection
- R164 Reliability Data
- LT1223 Footprints and Symbols
