LT1353 - Dual and Quad 250µA, 3MHz, 200V/µs Operational Amplifier

The LT™1352/LT1353 are dual and quad, very low power, high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit combines the slewing performance of a current feedback amplifier in a true operational amplifier with matched high impedance inputs. The high slew rate ensures that the large-signal bandwidth is not degraded. Each output is capable of driving a 1k Ohm load to �13V with ±15V supplies and a 500W load to �3.4V on ±5V supplies.

The LT1352/LT1353 are members of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation’s advanced complementary bipolar processing. For higher bandwidth devices with higher supply current see the LT1354 through LT1365 data sheets. Bandwidths of 12MHz, 25MHz, 50MHz and 70MHz are available with 1mA, 2mA, 4mA and 6mA of supply current per amplifier. Singles, duals and quads of each amplifier are available. The LT1352 is available in an 8-lead SO package. The LT1353 is offered in a 14-lead narrow surface mount package.

特点
  • 3MHz Gain Bandwidth
  • 200V/µs Slew Rate
  • 250µA Supply Current per Amplifier
  • C-Load™ Op Amp Drives All Capacitive Loads
  • Unity-Gain Stable
  • Maximum Input Offset Voltage: 600µV
  • Maximum Input Bias Current: 50nA
  • Maximum Input Offset Current: 15nA
  • Minimum DC Gain, RL = 2k: 30V/mV
  • Input Noise Voltage: 14nV/rt Hz
  • Settling Time to 0.1%, 10V Step: 700ns
  • Settling Time to 0.01%, 10V Step: 1.25µs
  • Minimum Output Swing into 1k: ±13V
  • Minimum Output Swing into 500 ohms: ±3.4V
  • Specified at ±2.5V, ±5V and ±15V
  • Available in SO-8 Package
  • LT1353 in Narrow Surface Mount Package
典型应用

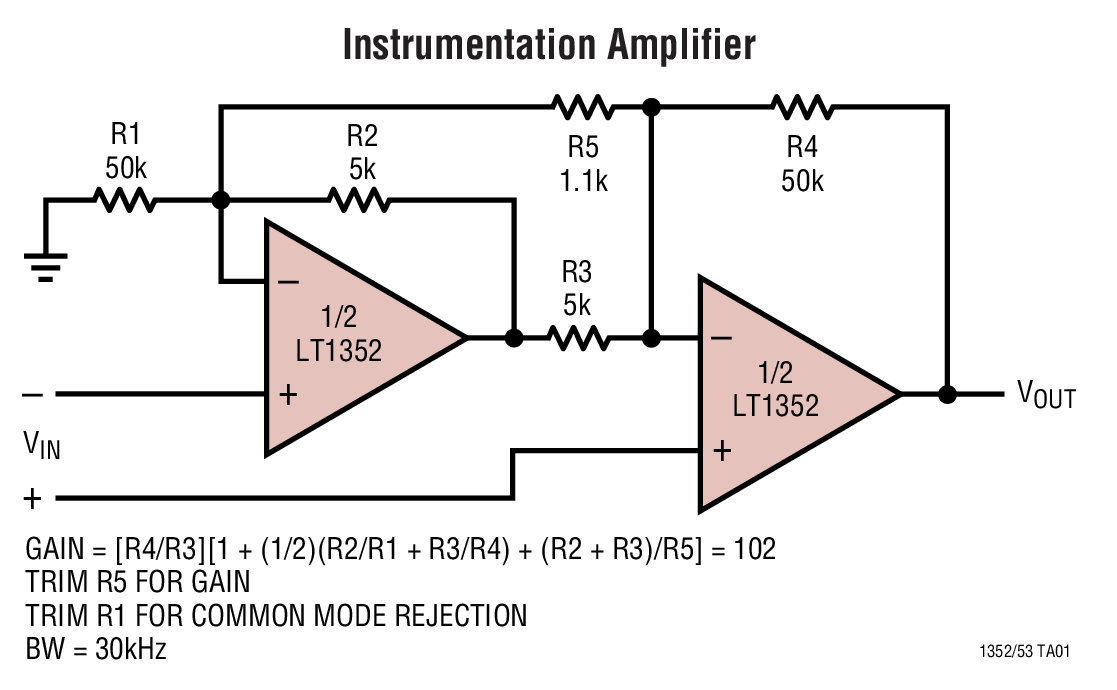

LT1353 Typical Application

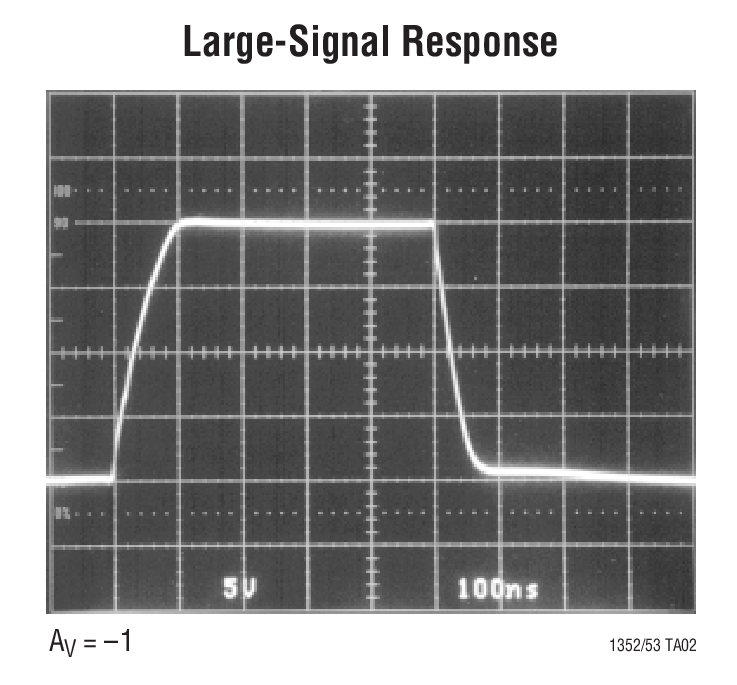

LT1353 Typical Application
应用
  • Battery-Powered Systems
  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Data Acquisition Systems
  • Photodiode Amplifiers
封装信息

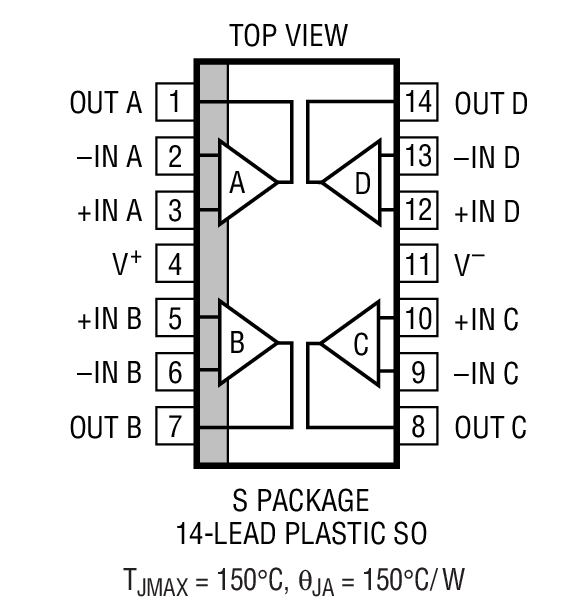

LT1353 Package Drawing
LT1353 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT1353CS#PBFSO-14C$8.40$6.70
LT1353CS#TRPBFSO-14C$6.76
