LT1537 - Advanced Low Power 5V RS232 Transceiver with Small Capacitors

The LT™1537 is a three-driver, five-receiver RS232 transceiver, pin compatible with the LT1137A, offering performance improvements and two shutdown modes. The LT1537µs charge pump is designed for extended compliance and can deliver over 35mA of load current. Supply current is typically 8mA, competitive with similar CMOS devices. An advanced driver output stage operates up to 250kbaud while driving heavy capacitive loads. The LT1537 is fully compliant with all RS232 specifications. Special bipolar construction techniques protect the drivers and receivers beyond the fault conditions stipulated for RS232. Driver outputs and receiver inputs can be shorted to �25V without damaging the device or the power supply generator. In addition, the RS232 I/O pins are resilient to multiple �5kV ESD strikes. The transceiver has two shutdown modes. One mode disables the drivers and the charge pump, the other shuts down all circuitry. While shut down, the drivers and receivers assume high impedance output states.

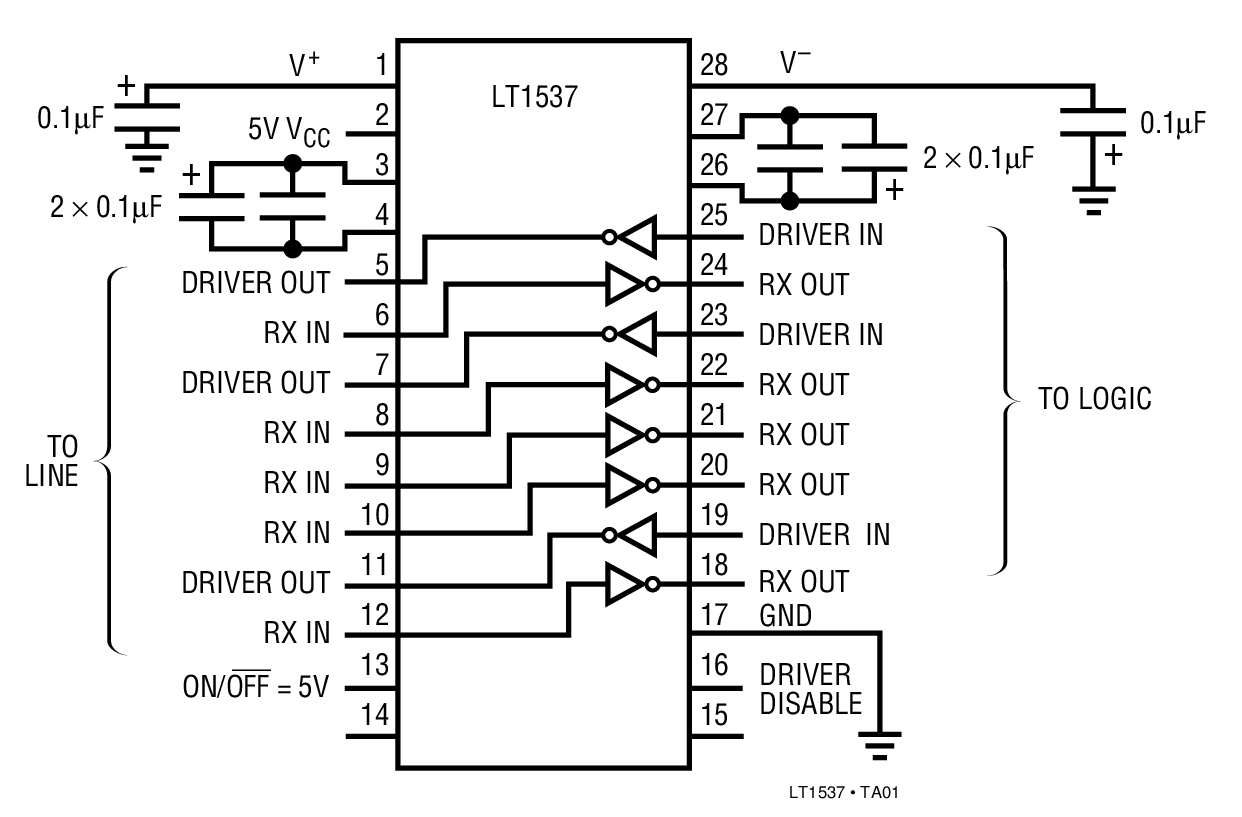

特点 Low Cost Uses Small Capacitors: 0.1µF, 0.2µF 1µA Supply Current in Shutdown 120kBaud Operation for RL = 3k, CL = 2500pF 250kBaud Operation for RL = 3k, CL = 1000pF CMOS Comparable Low Power: 40mW Operates from a Single 5V Supply Easy PC Layout: Flow-through Architecture Rugged Bipolar Design Outputs Assume a High Impedance State When Off or Powered Down Improved Protection: RS232 I/O Lines Can Be Forced to ±25V Without Damage Output Overvoltage Does Not Force Current Back into Supplies Absolutely No Latch-Up Available in SO Package 典型应用

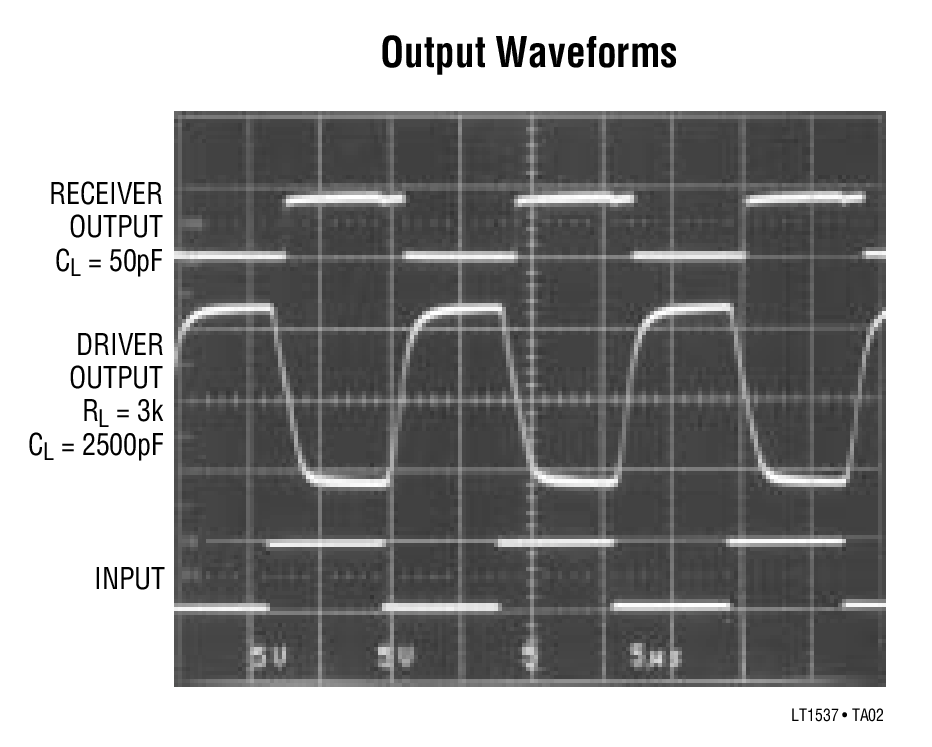

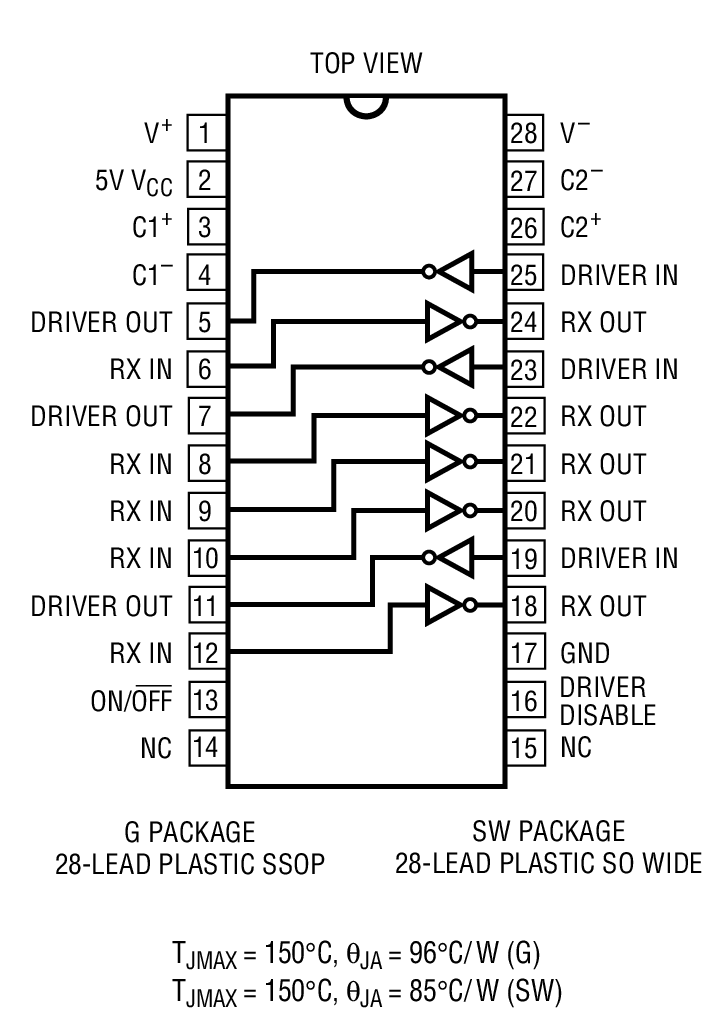

应用 Notebook Computers Palmtop Computers 封装信息
