LT1762 - 150mA, Low Noise, LDO Micropower Regulators

The LT1762 series are micropower, low noise, low dropout regulators. The devices are capable of supplying 150mA of output current with a dropout voltage of 300mV. Designed for use in battery-powered systems, the low 25µA quiescent current makes them an ideal choice. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. A key feature of the LT1762 regulators is low output noise. With the addition of an external 0.01µF bypass capacitor, output noise drops to 20µVRMS over a 10Hz to 100kHz bandwidth. The LT1762 regulators are stable with output capacitors as low as 2.2µF. Small ceramic capacitors can be used without the series resistance required by other regulators. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting and reverse current protection. The parts come in fixed output voltages of 2.5V, 3V, 3.3V and 5V, and as an adjustable device with a 1.22V reference voltage. The LT1762 regulators are available in the 8-lead MSOP package.

特点
  • Low Noise: 20µVRMS(10Hz to 100kHz)
  • Low Quiescent Current: 25µA
  • WideInput Voltage Range: 1.8V to 20V
  • Output Current: 150m
  • Very Low Shutdown Current: < 1µA
  • Low Dropout Voltage: 270mV
  • No Protection Diodes Needed
  • Fixed Output Voltages: 2.5V, 3V, 3.3V, 5V
  • Adjustable Output from 1.22V to 20V
  • Stable with 2.2µF Output Capacitor
  • Stable with Aluminum, Tantalum or Ceramic Capacitors
  • Reverse Battery Protection
  • No Reverse Current
  • Overcurrent and Overtemperature Protected
  • 8-Lead MSOP Package
典型应用

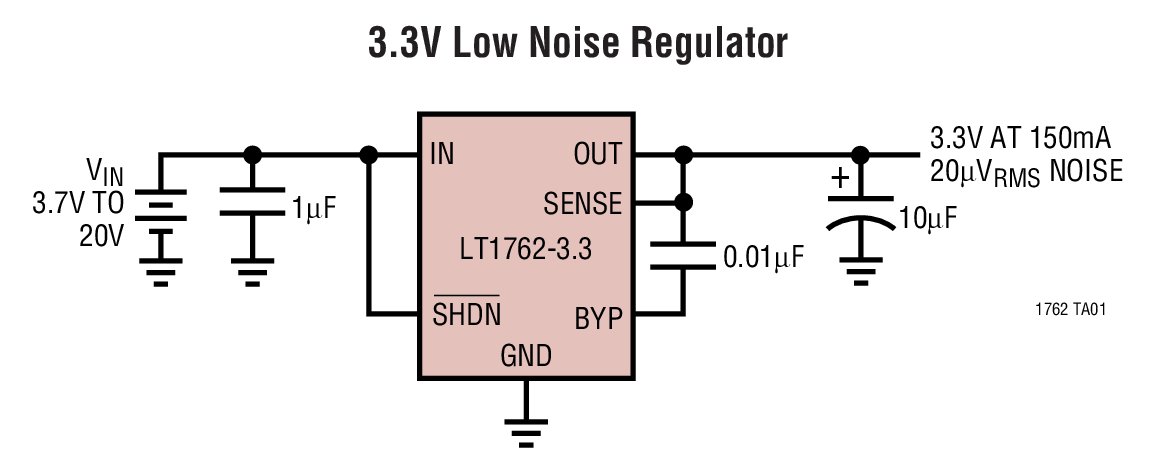

LT1762 Typical Application
LT1762 Typical Application
应用
  • Cellular Phones
  • Battery-Powered Systems
  • Frequency Synthesizers
  • Noise-Sensitive Instrumentation Systems
封装信息

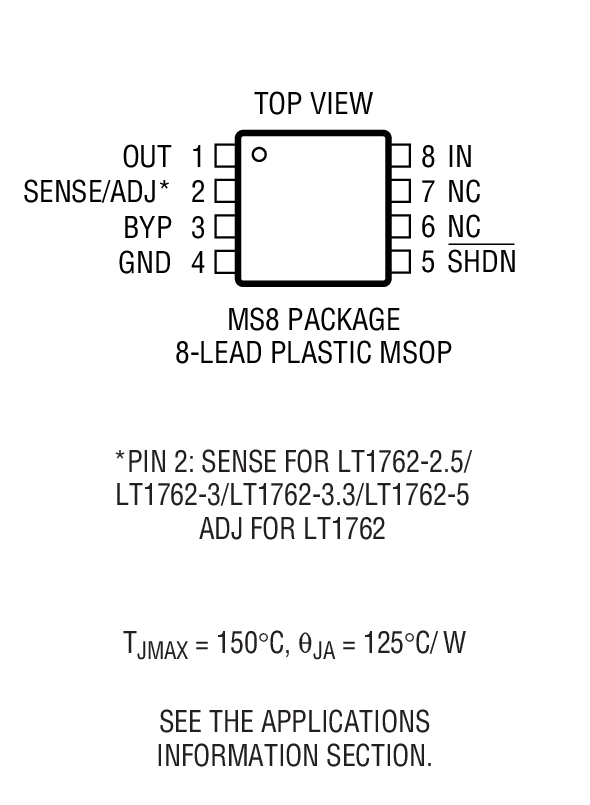

LT1762 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT1762EMS8-2.5#PBFMS-8E$1.30$1.10
LT1762EMS8-2.5#TRPBFMS-8E$1.16
LT1762EMS8-3.3#PBFMS-8E$1.30$1.10
LT1762EMS8-3.3#TRPBFMS-8E$1.16
LT1762EMS8-3#PBFMS-8E$1.30$1.10
LT1762EMS8-3#TRPBFMS-8E$1.16
LT1762EMS8-5#PBFMS-8E$1.30$1.10
LT1762EMS8-5#TRPBFMS-8E$1.16
LT1762EMS8#PBFMS-8E$1.30$1.10
LT1762EMS8#TRPBFMS-8E$1.16
演示电路板
器件型号描述价格
DC279A-BLTC1736, LTC1772, LTC1762 | Low Cost VRM (Intel), 7.5 to 24Vin, 1.3V to 1.6Vout @ 14A, 1.5Vout @ 0.12 to 2.5A, 2.5Vout @ 0.15A联系凌力尔特
DC339A-ALT1762EMS8 Demo Board | Micropower Low Noise LDO Regulator, 2.3V ≤ VIN ≤ 20V, Vout = 1.22V/2.5V/3V/3.3V/5V/Adj @ 150mA$75.00
