LT1769 - Constant-Current/Constant-Voltage 2A BatteryCharger with Input Current Limiting

A third control loop is provided to regulate the current drawn from the input AC adapter. This allows simultaneous operation of the equipment and battery charging without overloading the adapter. Charge current is reduced to keep the adapter current below specified levels.

The LT1769 can charge batteries ranging from 1V to 20V. Ground sensing of current is not required and the battery’s negative terminal can be tied directly to ground. A saturating switch running at 200kHz gives high charging efficiency and small inductor size. A blocking diode is not required between the chip and the battery because the chip goes into sleep mode and drains only 3µA when the wall adapter is unplugged.

特点
  • Simple Solution to Charge NiCd, NiMH and Lithium Rechargeable Batteries—Charging Current Programmed by Resistors or DAC
  • Adapter Current Limit Allows Maximum Possible Charging Current During System Use*
  • Precision 0.5% Accuracy for Voltage Mode Charging
  • High Efficiency Current Mode PWM with 3A Internal Switch
  • 5% Charge Current Accuracy
  • Adjustable Undervoltage Lockout
  • Automatic Shutdown When AC Adapter is Removed
  • Low Reverse Battery Drain Current: 3µA
  • Current Sensing Can Be at Either Terminal of the Battery
  • Charging Current Soft Start
  • Shutdown Control
  • Available in 20-Lead Exposed Pad TSSOP and 28-Lead Narrow SSOP Packages
典型应用
LT1769 Typical Application
应用
  • Chargers for NiCd, NiMH, Lead-Acid, Lithium Rechargeable Batteries
  • Switching Regulators with Precision Current Limit
封装信息

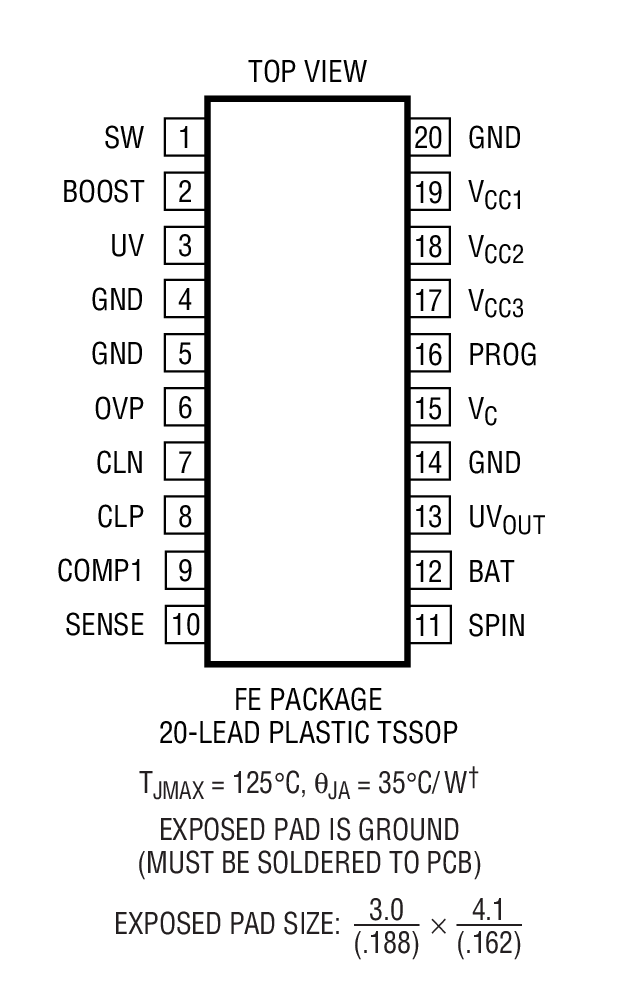

LT1769 Package Drawing
LT1769 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT1769CFE#PBFTSSOP-20C$6.03$5.10
LT1769CFE#TRPBFTSSOP-20C$5.22
LT1769CGN#PBFSSOP-28C$5.60$4.95
LT1769CGN#TRPBFSSOP-28C$5.05
LT1769IFE#PBFTSSOP-20I$6.63$5.60
LT1769IFE#TRPBFTSSOP-20I$5.72
LT1769IGN#PBFSSOP-28I$6.80$6.00
LT1769IGN#TRPBFSSOP-28I$6.10
