LT1996 - Precision, 100µA Gain Selectable Amplifier
The amplifier features a 50µV maximum input offset voltage and a gain bandwidth product of 560kHz. The device operates from any supply voltage from 2.7V to 36V and draws only 100µA supply current on a 5V supply. The output swings to within 40mV of either supply rail.
The internal resistors have excellent matching characteristics; variation is 0.05% over temperature with a guaranteed matching temperature coefficent of less than 3ppm/°C. The resistors are also extremely stable over voltage, exhibiting a nonlinearity of less than 10ppm.

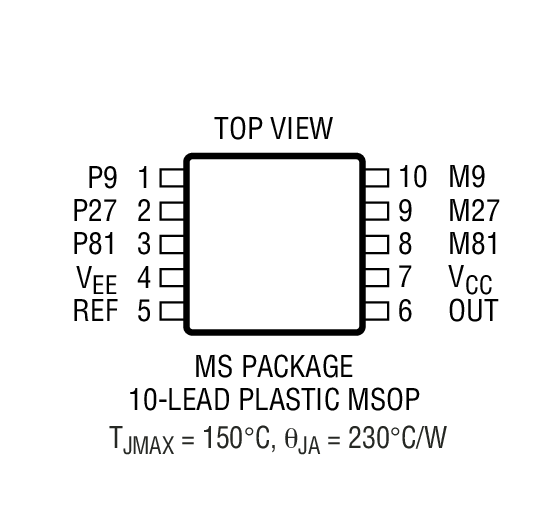

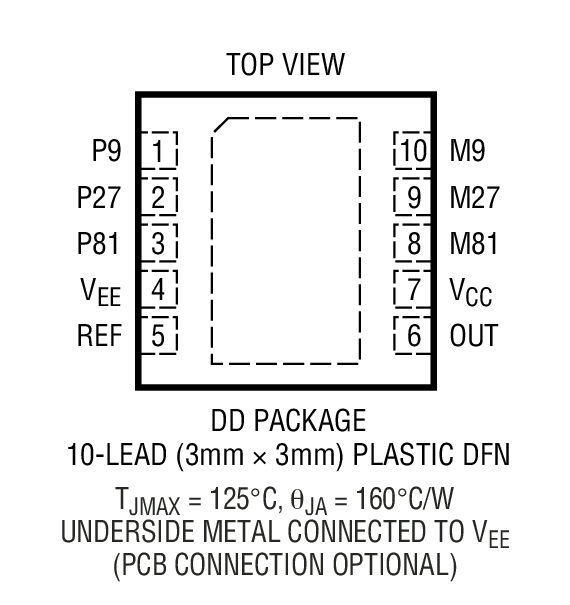

The LT1996 is fully specified at 5V and ±15V supplies and from -40°C to 85°C. The device is available in space saving 10-lead MSOP and DFN packages. For an amplifier with selectable gains from -13 to 14, see the LT1991 data sheet.
特点

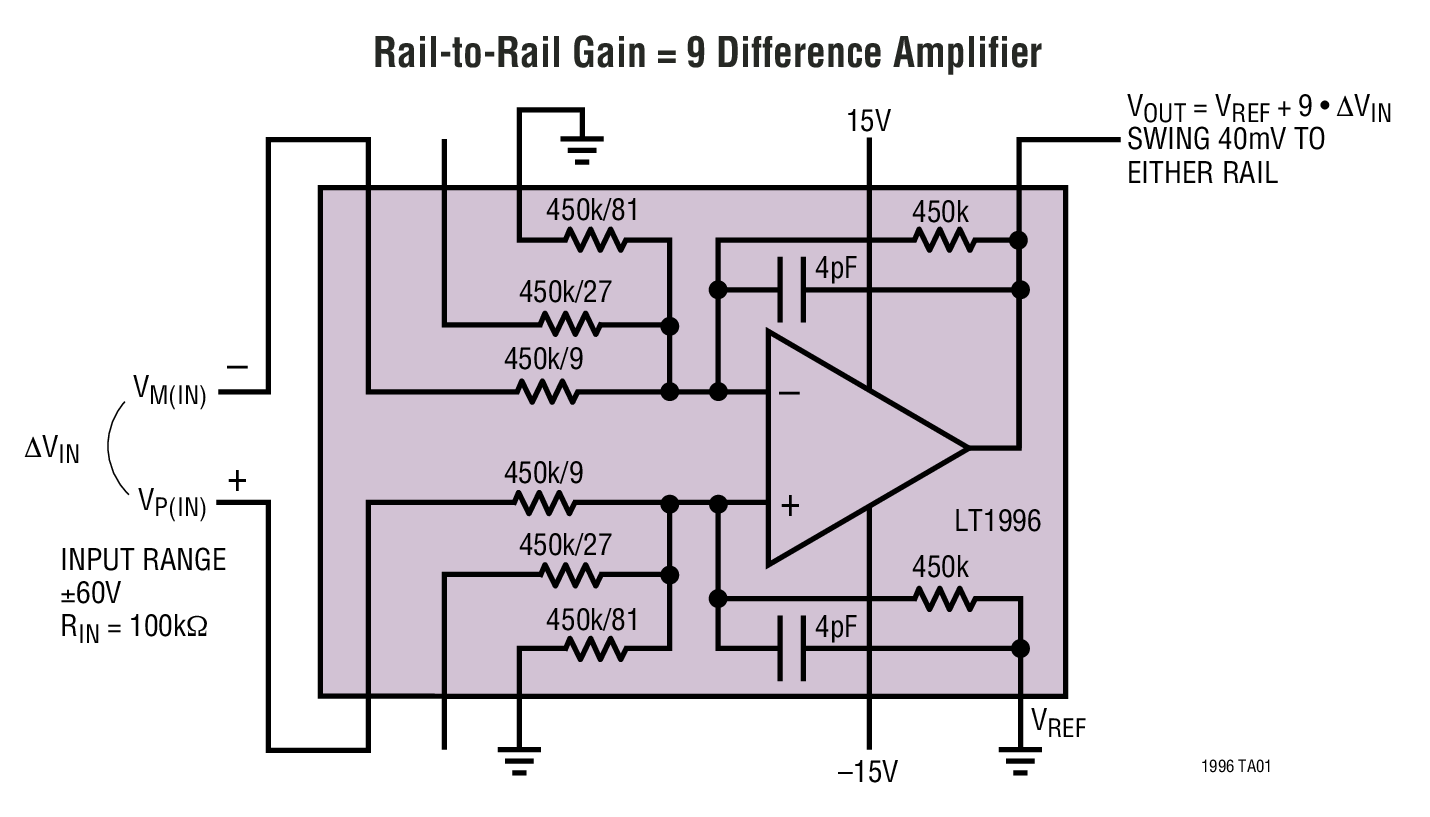

典型应用  | 应用
封装信息  |
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
|---|---|---|---|---|
| LT1996ACDD#PBF | 3x3 DFN-10 | C | $2.52 | $2.09 |
| LT1996ACDD#TRPBF | 3x3 DFN-10 | C | $2.15 | |
| LT1996ACMS#PBF | MS-10 | C | $2.28 | $1.89 |
| LT1996ACMS#TRPBF | MS-10 | C | $1.95 | |
| LT1996AIDD#PBF | 3x3 DFN-10 | I | $3.01 | $2.49 |
| LT1996AIDD#TRPBF | 3x3 DFN-10 | I | $2.55 | |
| LT1996AIMS#PBF | MS-10 | I | $2.77 | $2.29 |
| LT1996AIMS#TRPBF | MS-10 | I | $2.35 | |
| LT1996CDD#PBF | 3x3 DFN-10 | C | $2.10 | $1.59 |
| LT1996CDD#TRPBF | 3x3 DFN-10 | C | $1.65 | |
| LT1996CMS#PBF | MS-10 | C | $1.80 | $1.39 |
| LT1996CMS#TRPBF | MS-10 | C | $1.45 | |
| LT1996IDD#PBF | 3x3 DFN-10 | I | $2.30 | $1.90 |
| LT1996IDD#TRPBF | 3x3 DFN-10 | I | $1.96 | |
| LT1996IMS#PBF | MS-10 | I | $2.05 | $1.69 |
| LT1996IMS#TRPBF | MS-10 | I | $1.75 |
