LTC1049 - Low Power Zero-Drift Operational Amplifier with Internal Capacitors

The LTC1049 is a high performance, low power zero-drift operational amplifier. The two sample-and-hold capacitors usually required externally by other chopper stabilized amplifiers are integrated on the chip. Further, the LTC1049 offers superior DC and AC performance with a nominal supply current of only 200µA.

The LTC1049 has a typical offset voltage of 2µV, drift of 0.02µV/°C, 0.1Hz to 10Hz input noise voltage of 3µVP-P and typical voltage gain of 160dB. The slew rate is 0.8V/µs with a gain bandwidth product of 0.8MHz.

Overload recovery time from a saturation condition is 6ms, a significant improvement over chopper amplifiers using external capacitors.

The LTC1049 is available in a standard 8-pin plastic dual in line, as well as an 8-pin SO package. The LTC1049 can be a plug-in replacement for most standard op amps with improved DC performance and substantial power savings.

特点

Low Supply Current: 200µA
No External Components Required
Maximum Offset Voltage: 10µV
Maximum Offset Voltage Drift: 0.1µV/°C
Single Supply Operation: 4.75V to 16V
Input Common Mode Range Includes Ground
Output Swings to Ground
Typical Overload Recovery Time: 6ms
Available in 8-Pin SO and PDIP Packages

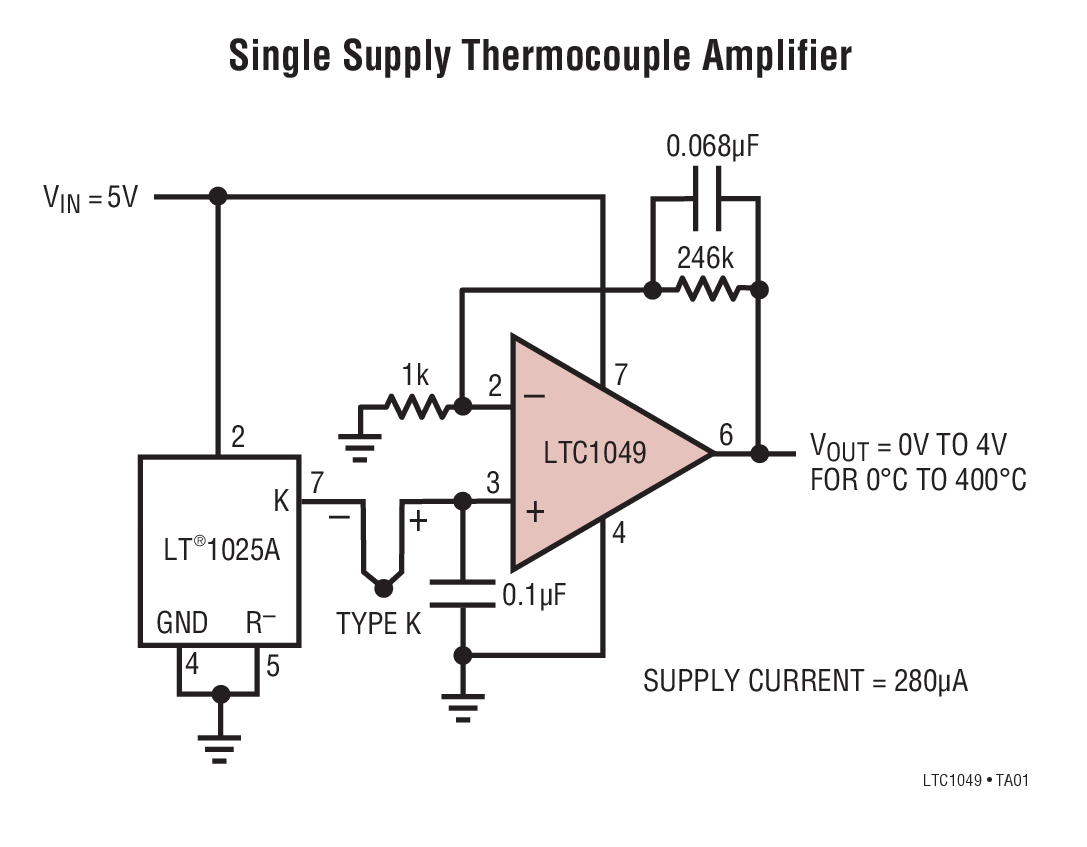

典型应用

应用

4mA to 20mA Current Loops
Thermocouple Amplifiers
Electronic Scales
Medical Instrumentation
Strain Gauge Amplifiers
High Resolution Data Acquisition

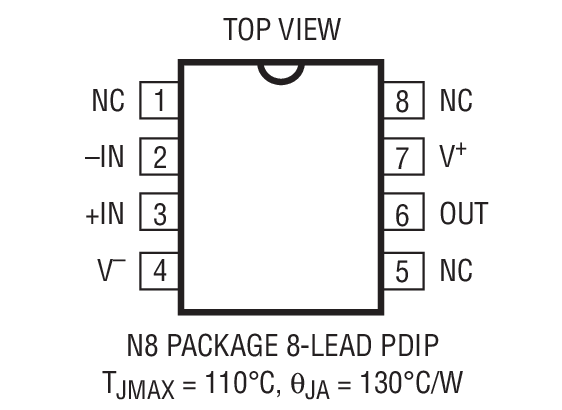

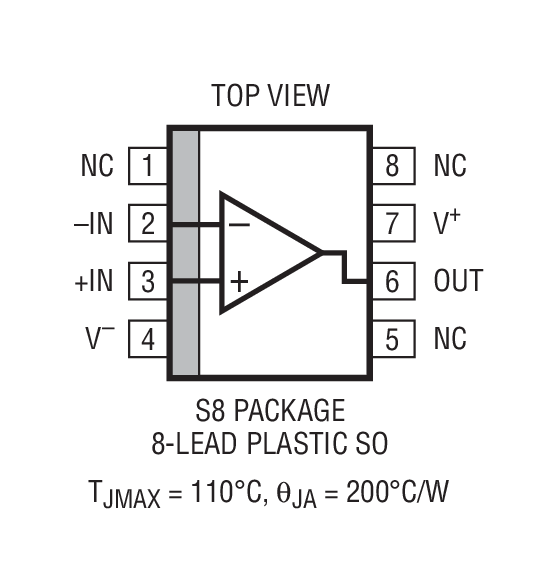

封装信息

**Order Information 订购型号**
器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LTC1049CN8#PBF	N-8	C	$2.70	$2.15
LTC1049CS8#PBF	SO-8	C	$3.35	$2.70
LTC1049CS8#TRPBF	SO-8	C		$2.76

演示电路板


器件型号	描述	价格
DC417B	DIP8, MS8, S8, SOT23-6 \| Multi-Footprint General Purpose Board for Single Op. Amp	$25.00
