特点

• Programmable Output Voltage Tracking
• Sense Resistor Optional
• Spread Spectrum Modulation for Low Noise
• Constant Frequency Current Mode Operation for Excellent Line and Load Transient Response
• Wide VIN Range: 2.75V to 9.8V
• Wide VOUT Range: 0.6V to VIN
• 0.6V ±1.5% Reference
• Low Dropout Operation: 100% Duty Cycle
• True PLL for Frequency Locking or Adjustment (Frequency Range: 250kHz to 750kHz)
• Selectable Burst Mode®/Pulse Skipping/Forced Continuous Operation
• Auxiliary Winding Regulation
• Internal Soft-Start Circuitry
• Power Good Output Voltage Monitor
• Output Overvoltage Protection
• Micropower Shutdown: IQ = 9µA
• Tiny Thermally Enhanced Leadless (4mm × 3mm) DFN or 16-lead SSOP Package

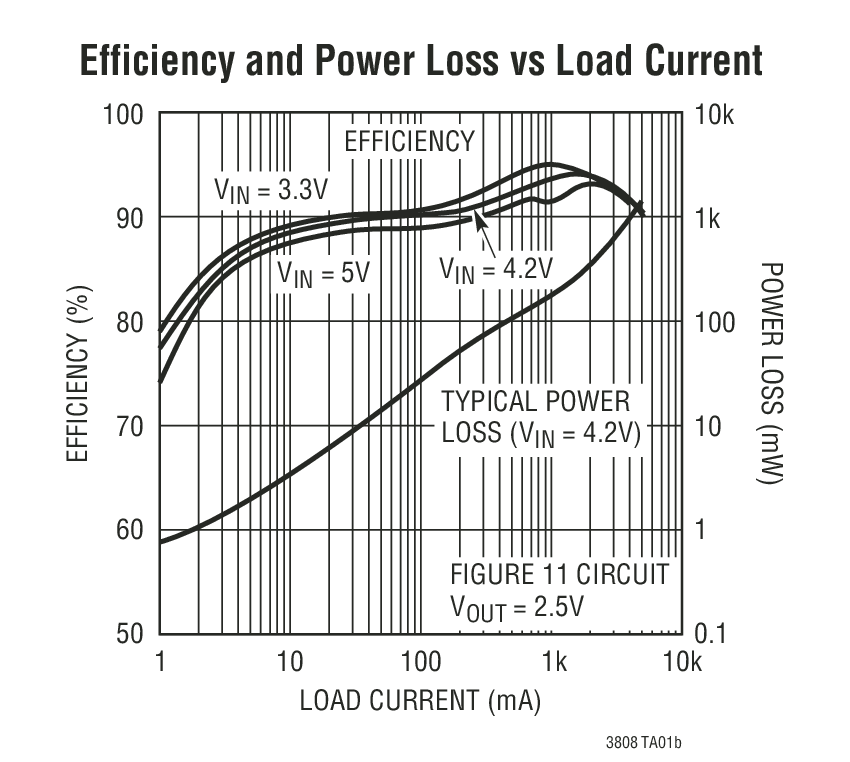

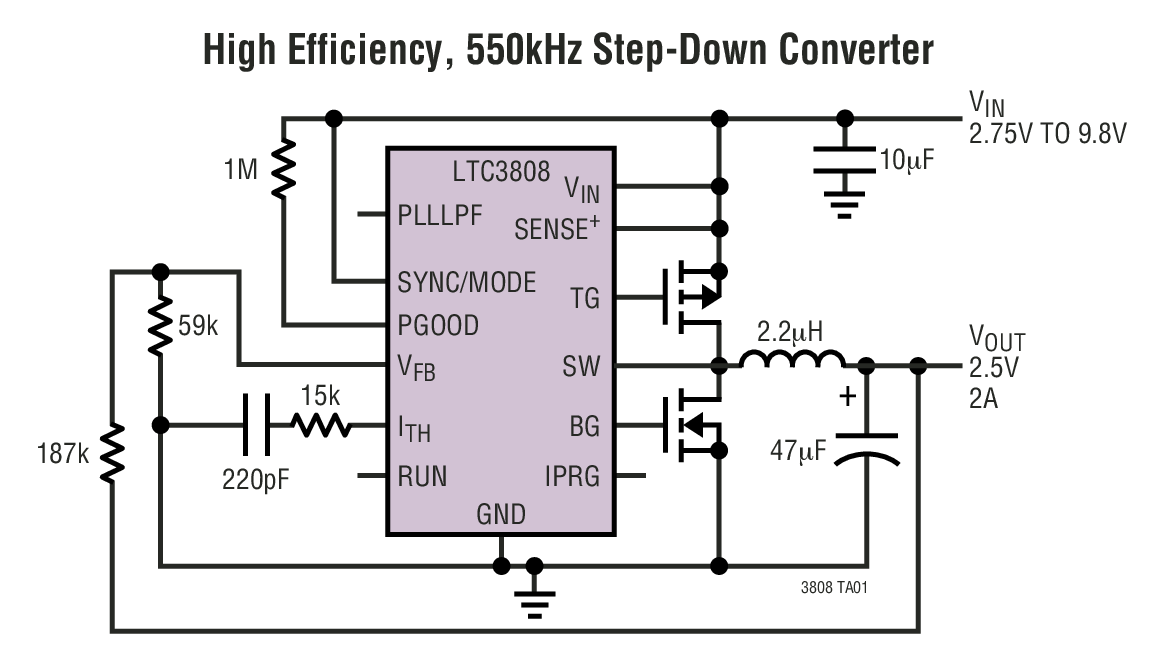

典型应用

应用

• One or Two Cell Lithium-Ion Powered Devices
• Notebook and Palmtop Computers, PDAs
• Portable Instruments
• Distributed DC Power Systems

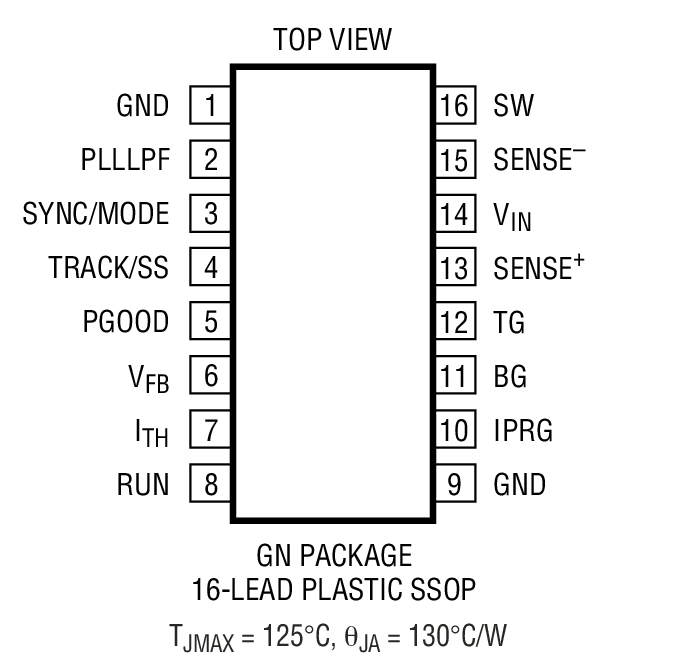

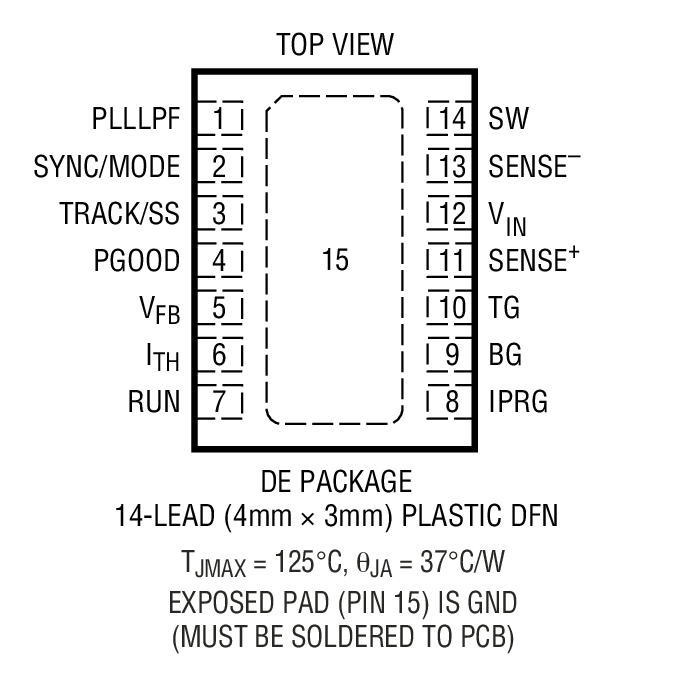

封装信息

数据表

• LTC3808 - No Rsense, Low EMI, Synchronous DC/DC Controller with Output Tracking
• LTC3808 - 具有输出跟踪功能的无检测电阻器 (No Rsense) 型、低 EMI、同步 DC/DC 控制器

设计要点

• DN382 - Low EMI Synchronous DC/DC Step-Down Controllers Offer Programmable Output Tracking

可靠性数据

• R421 Reliability Data

LT Journal

• May 2005 - Low EMI, Output Tracking, High Efficiency, and Too Many Other Features to List in a 3mm x 4mm Synchronous Buck Controller

产品新闻发布

• 具有片上扩频调制功能的低 EMI、低噪声 DC/DC 控制器

CAD 符号

• LTC3808 Footprints and Symbols
