LT3668 - 40V 400mA Step-Down Switching Regulator with Dual Fault Protected Tracking LDOs

The LT®3668 is a monolithic triple power supply composed of a 400mA buck switching regulator and two 200mA low dropout linear tracking regulators (LDOs).This provides a complete and robust power solution for applications that require the power supply of a sensor to tightly track the power supply of a measurement ASIC.

Each tracking LDO supplies 200mA of output current with a typical dropout voltage of 340mV, and each LDO has an accurate resistor programmable current limit.

Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection.

The buck regulator includes a high efficiency switch, a boost diode, and the necessary oscillator, control and logic circuitry. Current mode topology is used for fast transient response and good loop stability. Low ripple Burst Mode operation maintains high efficiency at low output currents while keeping output ripple below 15mV in a typical application.

The LT3668 is available in a thermally-enhanced 16-lead MSOP package with exposed pad for low thermal resistance.

Features
  • Dual Low Dropout Linear Tracking Regulators 200mA Outputs with Programmable Current Limits 1.6V to 45V Input Range Fault Protected to ±45V
  • Triple Output Supply from a Single Input Requires Only One Inductor

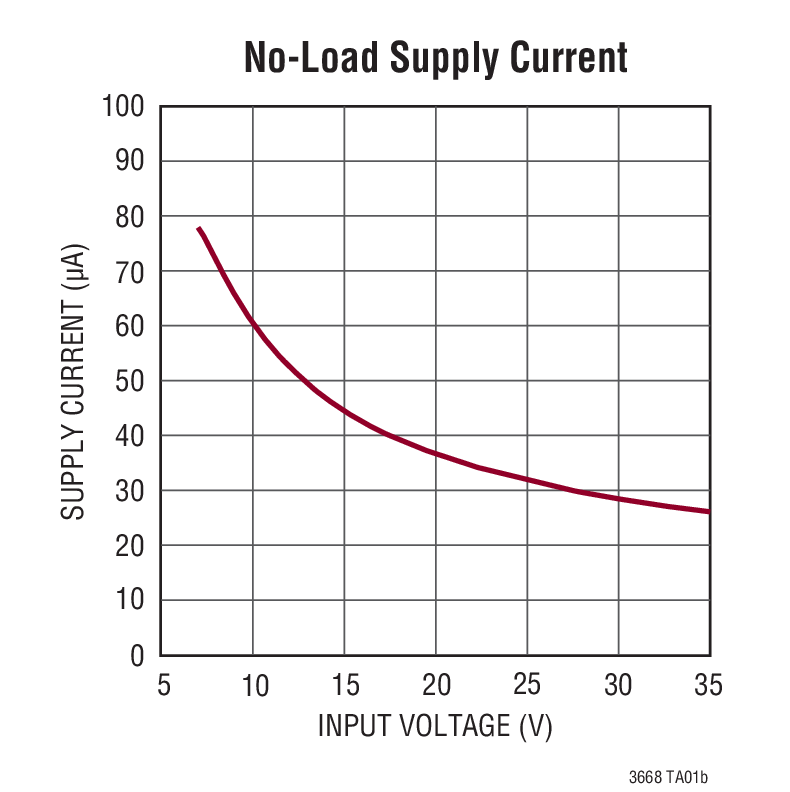

  • IQ = 50μA at 12VIN to 6V and 5V with No Load
  • Buck Regulator: Low Ripple (<15mVP-P) Burst Mode Operation® 400mA Output with Internal Power Switch 4.3V to 40V Input Operation Range (60V Max)
  • Adjustable 250kHz to 2.2MHz Switching Frequency
  • Power Good Indicator
  • Available in a Thermally-Enhanced 16-Lead MSOP Package
Typical Application
LT3668 Typical Application
LT3668 Typical Application
Applications
  • Fault-Protected Sensor Supply
  • Automotive and Industrial Supplies
  • Power for Portable Instrumentation
Packaging

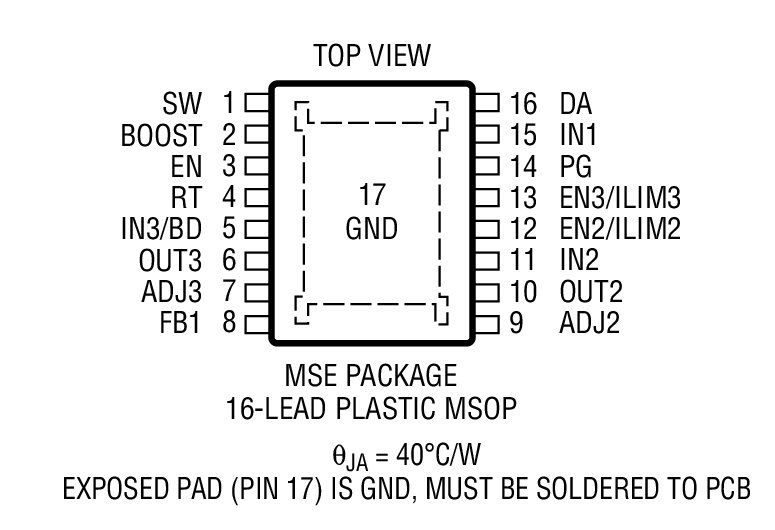

LT3668 Package Drawing
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LT3668EMSE#PBFMS-16EE$3.64$2.55
LT3668EMSE#TRPBFMS-16EE$2.61
LT3668HMSE#PBFMS-16EH$4.37$3.06
LT3668HMSE#TRPBFMS-16EH$3.12
LT3668IMSE#PBFMS-16EI$4.02$2.81
LT3668IMSE#TRPBFMS-16EI$2.87
Demo Boards
Part NumberDescriptionPrice
DC2243ALT3668EMSE Demo Board | Buck Plus Dual Post-Regulator LDOs, 7V ≤ VIN ≤ 40V; VOUT1 = 6V @ 0.4A, VOUT2 = 5V @ 0.2A, VOUT3 = 5V @ 0.2AContact Factory
