LT6402-12 - 300MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV = 12dB)

The LT6402-12 is a low distortion, low noise differential amplifier/ADC driver for use in applications from DC to 300MHz. The LT6402-12 has been designed for ease of use, with minimal support circuitry required. Exceptionally low input-referred noise and low distortion (with either single-ended or differential inputs) make the LT6402-12 an excellent solution for driving high speed 12-bit and 14-bit ADCs. In addition to the normal unfiltered outputs (+OUT and –OUT), the LT6402-12 has a built-in 75MHz differential low pass filter and an additional pair of filtered outputs (+OUTFILTERED, –OUTFILTERED) to reduce external filtering components when driving high speed ADCs. The output common mode voltage is easily set via the VOCM pin, eliminating an output transformer or AC-coupling capacitors in many applications.

The LT6402-12 is designed to meet the demanding requirements of communications transceiver applications. It can be used as a differential ADC driver, a general-purpose differential gain block, or in other applications requiring differential drive. The LT6402-12 can be used in data acquisition systems required to function at frequencies down to DC.

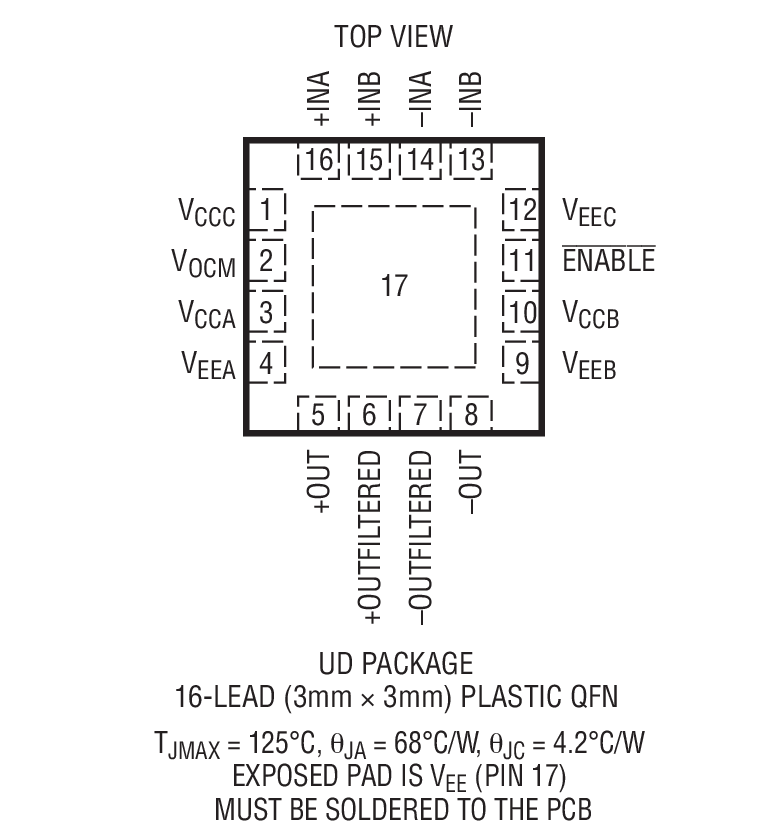

The LT6402-12 operates on a 5V supply and consumes 30mA. It comes in a compact 16-lead 3mm × 3mm QFN package and operates over a –40°C to 85°C temperature range.

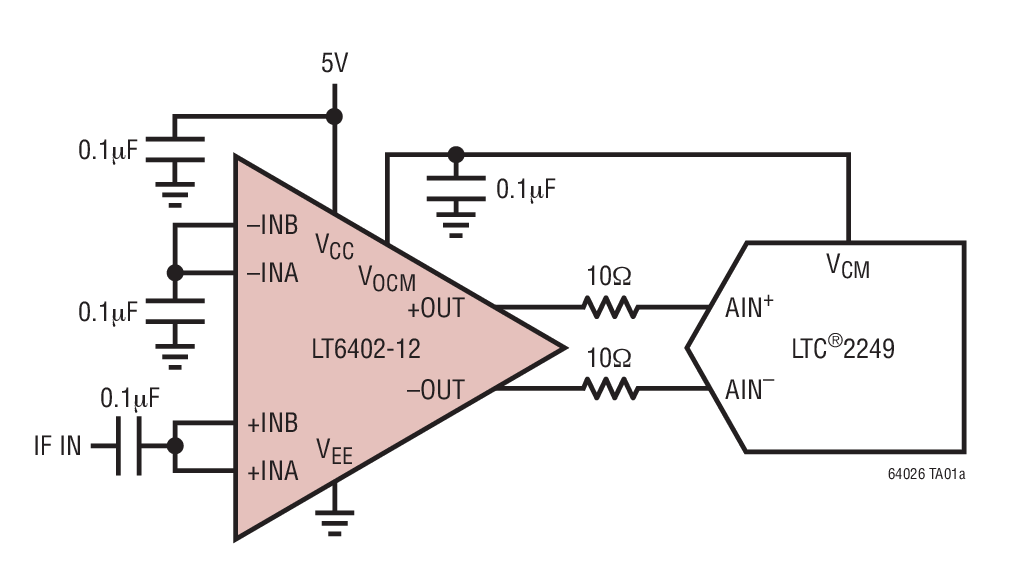

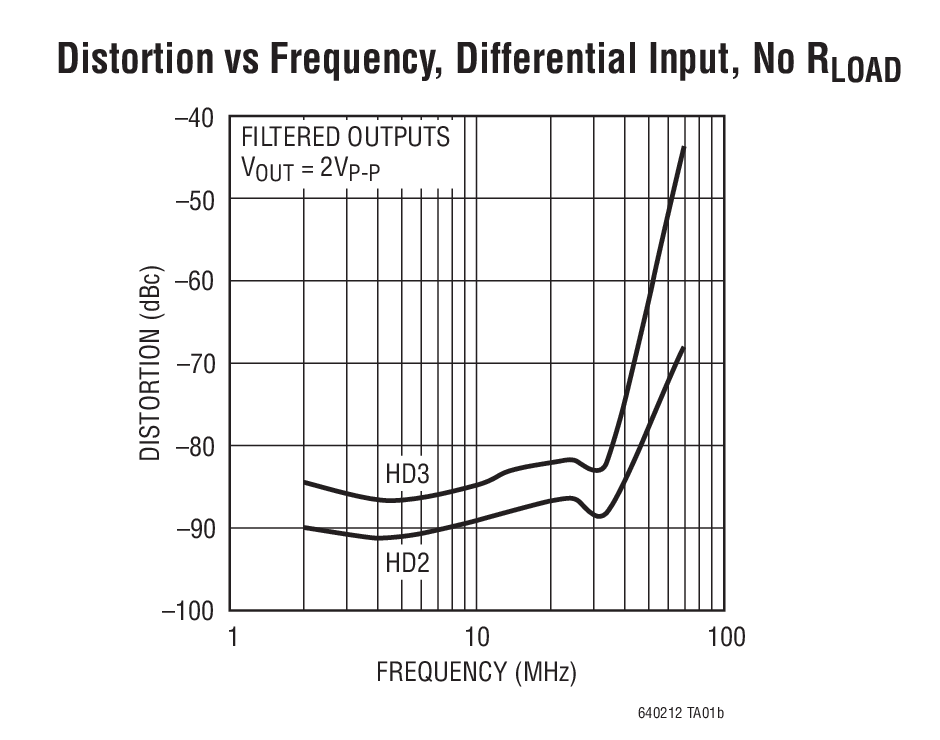

Features 300 MHz –3dB Bandwidth Fixed Gain of 12dB Low Distortion:   43dBm OIP3, –82dBc HD3 (20MHz, 2VP-P) Low Noise:   15dB NF, en = 2.6nV/√Hz (20MHz) Differential Inputs and Outputs Additional Filtered Outputs Adjustable Output Common Mode Voltage DC- or AC-Coupled Operation Minimal Support Circuitry Required Small 0.75mm Profile 16-Lead 3mm × 3mm QFN Package Typical Application

Applications Differential ADC Driver for:   Imaging   Communications Differential Driver/Receiver Single Ended to Differential Conversion Differential to Single Ended Conversion Level Shifting IF Sampling Receivers SAW Filter Interfacing/Buffering Packaging
