Features

• Four Filters in a 0.3 Inch Wide Package
• Maximum Center Frequency: 140kHz
• Customized Version with Internal Resistors Available
• One Half the Noise of the LTC1059/LTC1060/ LTC1061 Devices
• Maximum Clock Frequency: 7MHz
• Clock-to-Center Frequency Ratio of 50:1 and 100:1 Simultaneously Available
• Power Supplies: ±2.375V to ±8V
• Low Offsets
• Low Harmonic Distortion

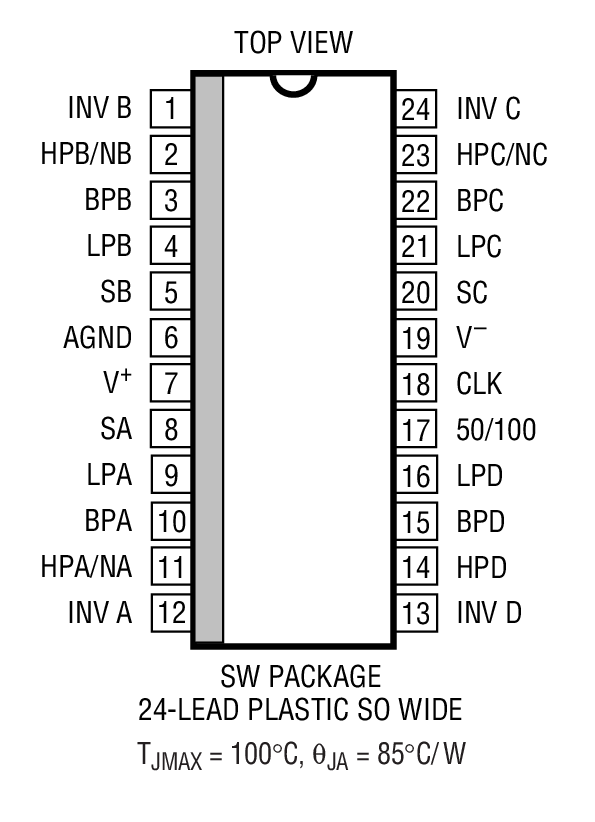

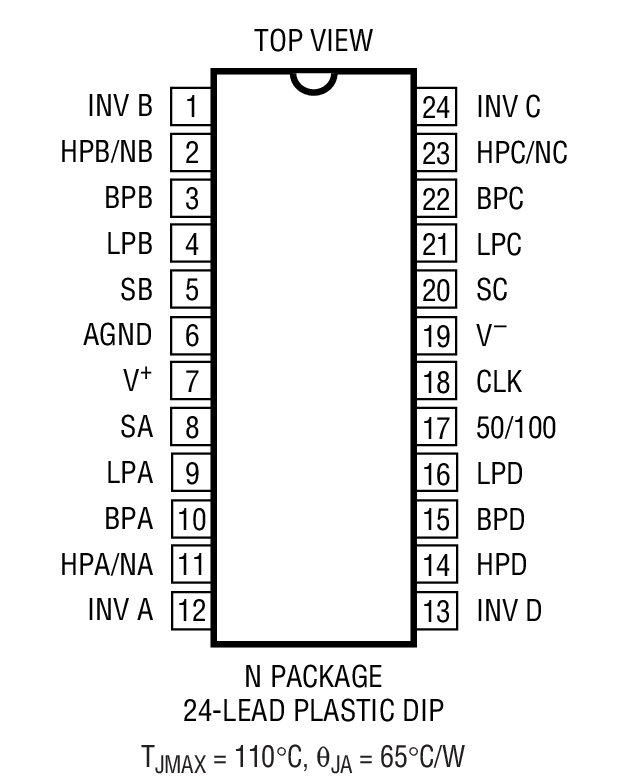

• Available in 24-Pin DIP and SO Wide Packages

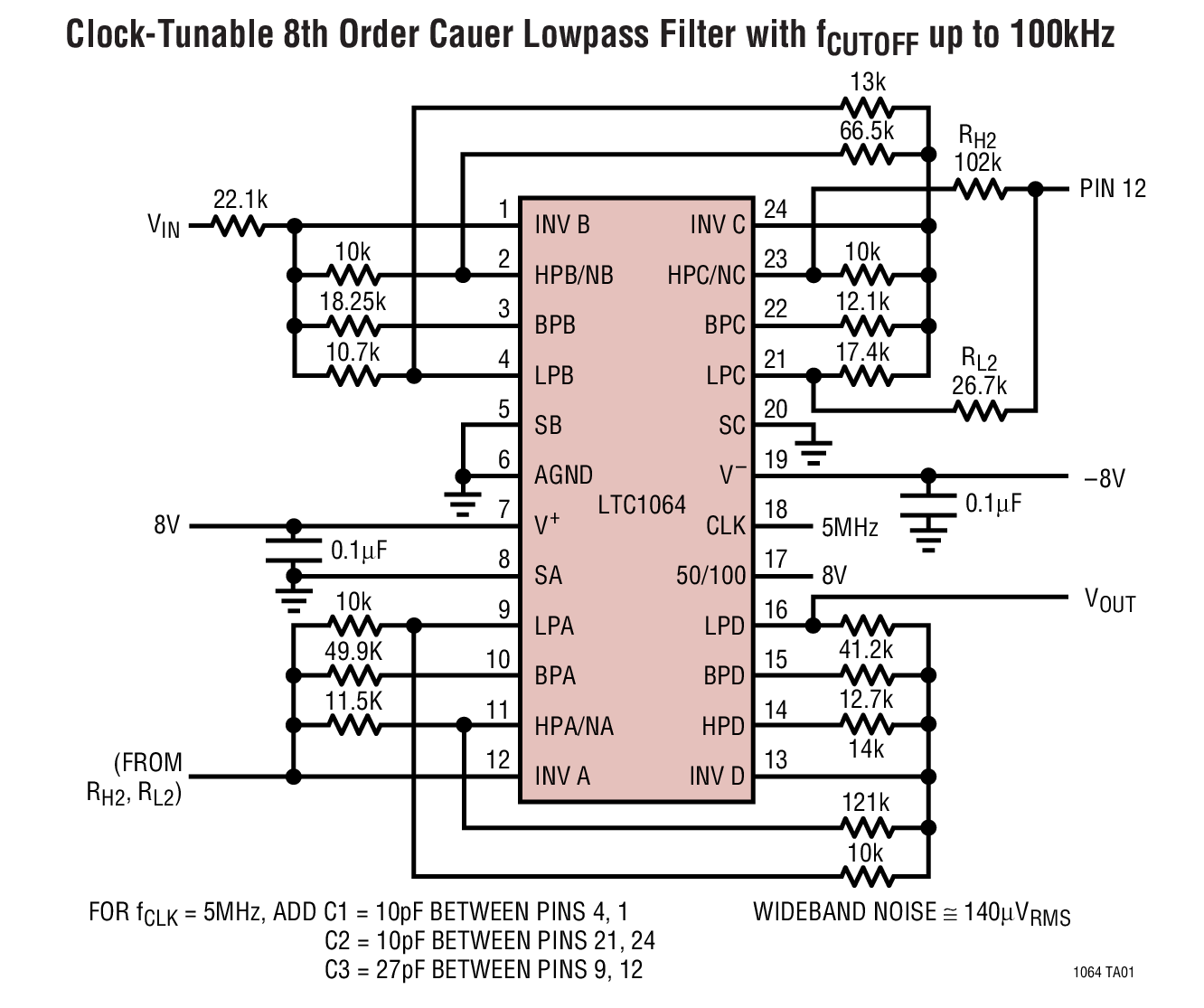

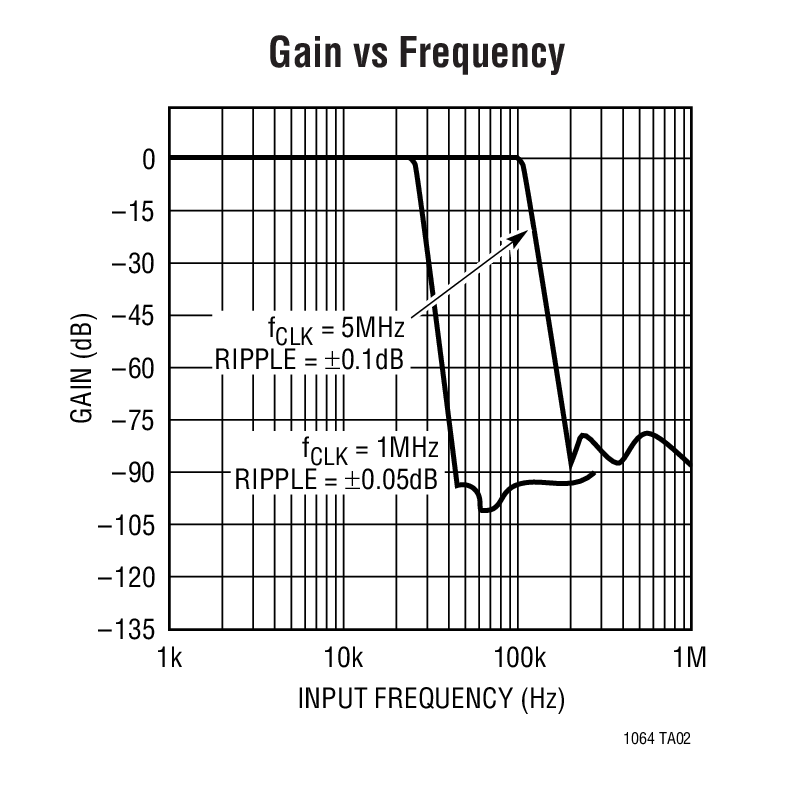

Typical Application
