LTC2952 - Pushbutton PowerPath Controller with Supervisor

The LTC2952 is a power management device that features three main functions: pushbutton on/off control of system power, ideal diode PowerPath controllers and system monitoring. The LTC2952’s pushbutton input, which provides on/off control of system power, has independently adjustable ON and OFF debounce times. A simple microprocessor interface involving an interrupt signal allows for proper system housekeeping prior to power-down.

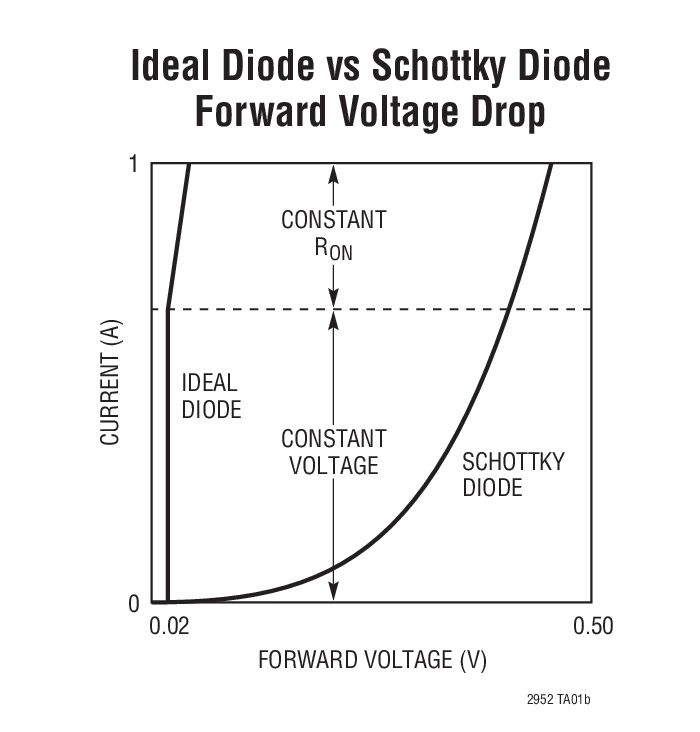

The ideal diode PowerPath controllers provide automatic low loss switchover between two DC sources by regulating two external P-channel MOSFETs to have a small 20mV forward drop.

High reliability systems may utilize the LTC2952’s monitoring features to ensure system integrity. These features include: power-fail, voltage monitoring and μP watchdog.

The LTC2952 operates over a wide operating voltage range to accommodate a large variety of input power supplies. The part’s combination of low 20mV external MOSFET regulation and very low standby current matches battery powered and power conscious application requirements.

Features
  • Pushbutton On/Off Control
  • Automatic Low Loss Switchover Between DC Sources
  • Wide Operating Voltage Range: 2.7V to 28V
  • Low 25μA Shutdown Current
  • Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage Over Temperature
  • Adjustable Pushbutton On/Off Timers
  • Simple Interface Allows Graceful μP Shutdown
  • Extendable Housekeeping Wait Time Prior to Shutdown
  • 200ms Reset Delay and 1.6s Watchdog Timeout
  • ±8kV HBM ESD on PB Input
  • 20-pin TSSOP and QFN (4mm × 4mm) Packages

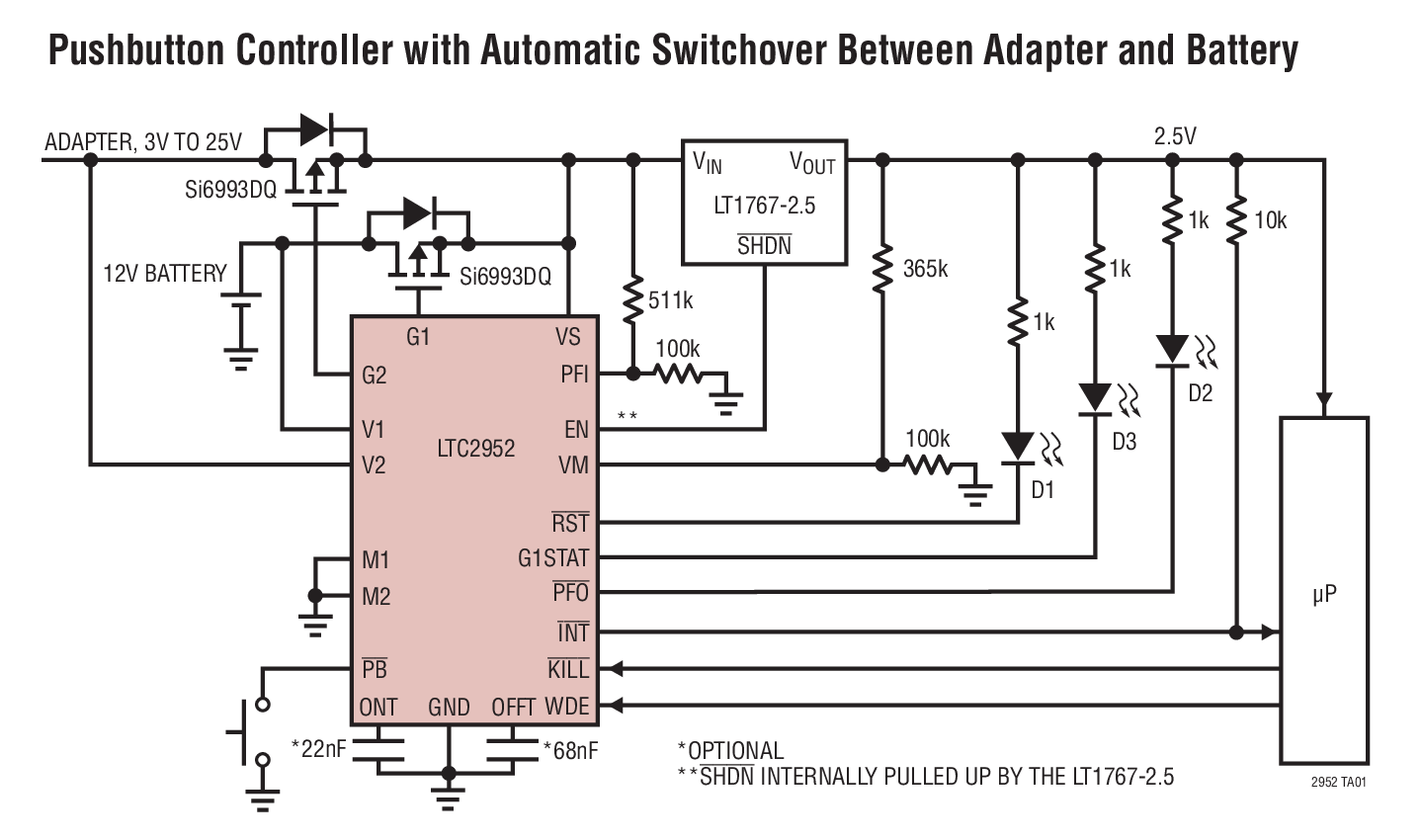

Typical Application
LTC2952 Typical Application
LTC2952 Typical Application
Applications
  • Desktop and Notebook Computers
  • Portable Instrumentations
  • Cell Phones, PDA and Handheld Computers
  • Servers and Computer Peripherals
  • Battery Backup Systems
Packaging

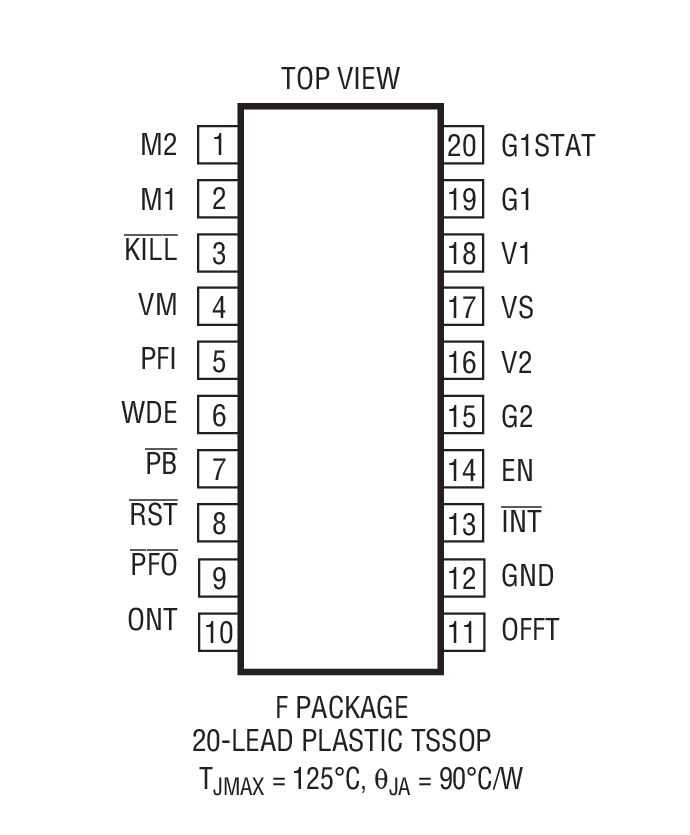

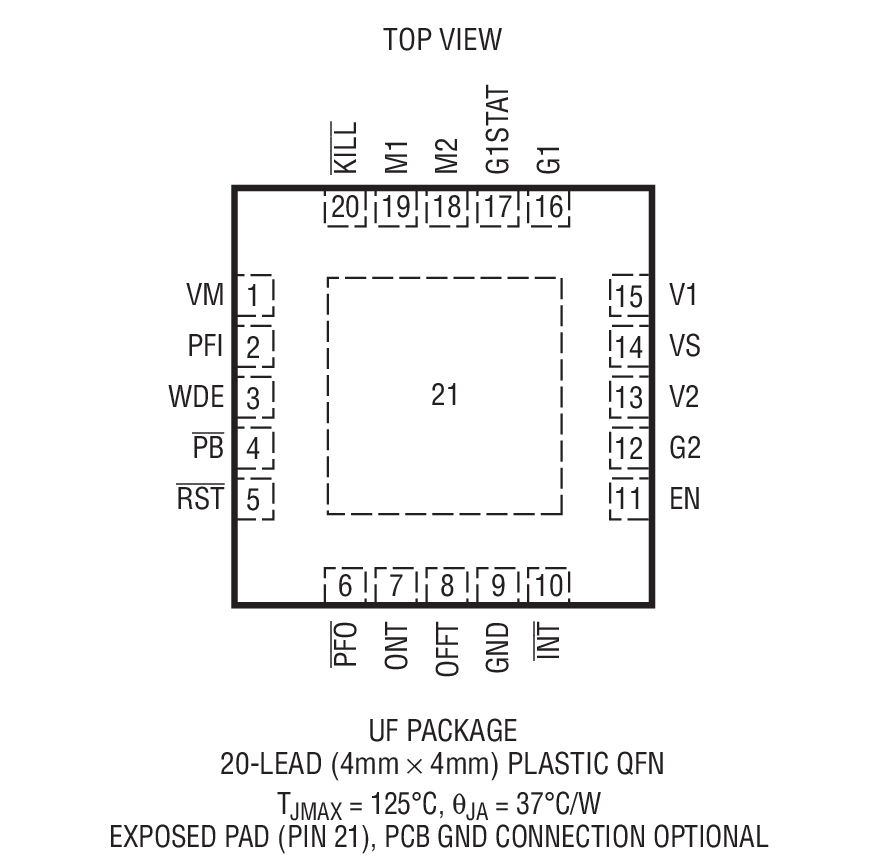

LTC2952 Package Drawing
LTC2952 Package Drawing
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTC2952CF#PBFTSSOP-20C$4.21$2.95
LTC2952CF#TRPBFTSSOP-20C$3.01
LTC2952CUF#PBF4x4 QFN-20C$4.21$2.95
LTC2952CUF#TRPBF4x4 QFN-20C$3.01
LTC2952IF#PBFTSSOP-20I$5.05$3.54
LTC2952IF#TRPBFTSSOP-20I$3.60
LTC2952IUF#PBF4x4 QFN-20I$5.05$3.54
LTC2952IUF#TRPBF4x4 QFN-20I$3.60
Demo Boards
Part NumberDescriptionPrice
DC1033BLTC2952 Demo Board | Push-Button Power Path Controller w/ Supervisor$25.00
