LTC3541-1 - High Efficiency Buck + VLDO Regulator
The LTC3541-1 combines a synchronous buck DC/ DC converter with a very low dropout linear regulator (VLDO) to provide up to two output voltages from a single input voltage with minimal external components. When configured for dual output operation, the LTC3541-1’s auto start-up feature will bring the VLDO/linear regulator output into regulation in a controlled manner prior to enabling the Buck regulator output without the need for external pin control. Buck output prior to VLDO/linear regulator output sequencing may also be obtained via external pin control. The input voltage range is ideally suited for Li-Ion batterypowered applications, as well as powering sub-3.3V logic from 5V or 3.3V rails.

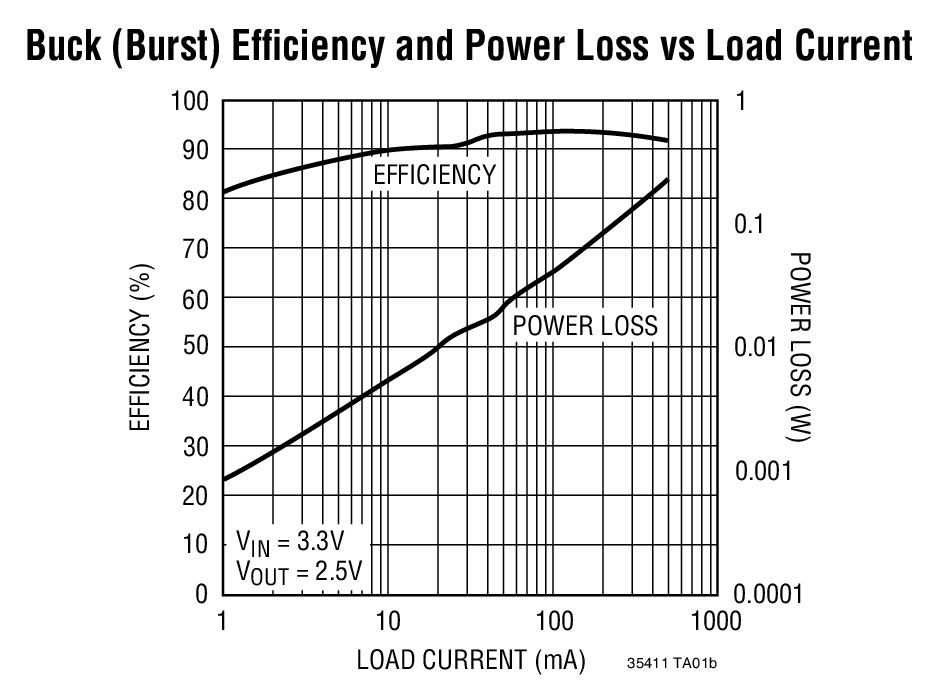

The synchronous buck converter provides a high efficiency output, typically 90%, capable of providing up to 500mA of continuous output current while switching at 2.25MHz, allowing the use of small surface mount inductors and capacitors. A mode-select pin allows Burst Mode operation to be enabled for higher efficiency at light load currents, or disabled for lower noise, constant frequency operation.
The VLDO regulator provides a low noise, low voltage output capable of providing up to 300mA of continuous output current using only a 2.2µF ceramic capacitor. The input supply voltage of the VLDO regulator (LVIN) may come from the buck regulator or a separate supply.
Features

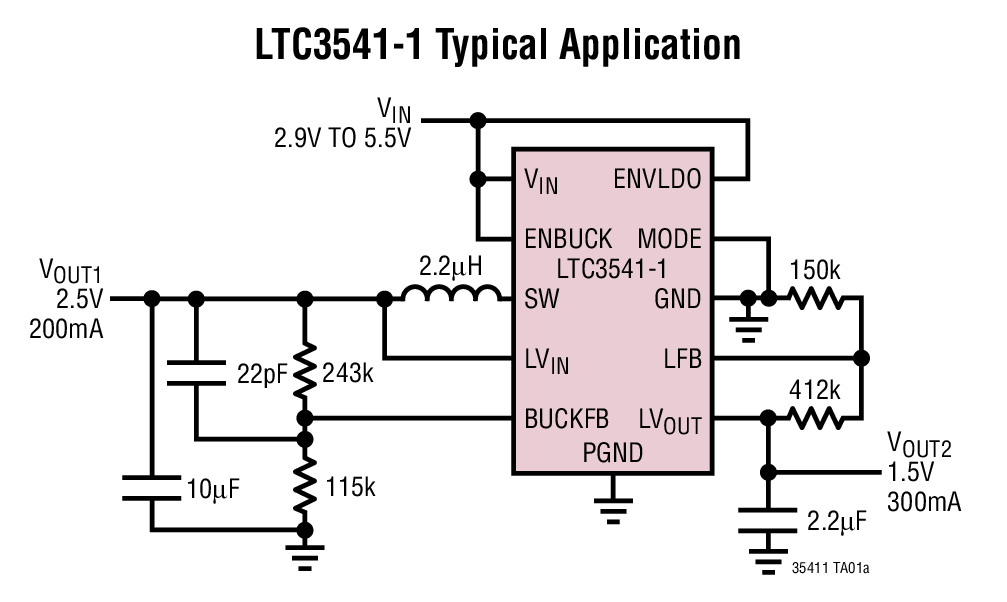

Typical Application  | Applications

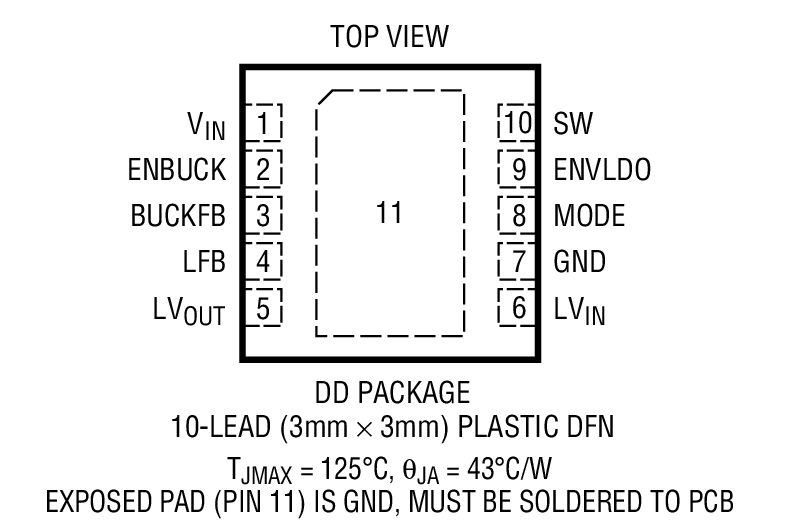

Packaging |
Order Information
| Part Number | Package | Temp | Price(1-99) | Price (1k)* |
|---|---|---|---|---|
| LTC3541EDD-1#PBF | 3x3 DFN-10 | E | $2.70 | $1.89 |
| LTC3541EDD-1#TRPBF | 3x3 DFN-10 | E | $1.95 |
Demo Boards
| Part Number | Description | Price |
|---|---|---|
| DC970A-B | LTC3541-1 Demo Board | 3V ≤ VIN ≤ 5.5V, Vout1 (Buck) = 1.8V or 2.5V @ 500mA, Vout2 (VLDO) = 0.8V/1.2V/1.5V/1.8V @ 300mA | $100.00 |
