LTC4222 - Dual Hot Swap Controller with I2C Compatible Monitoring

Features
  • Allows Safe Insertion Into a Live Backplane
  • 10-Bit ADC Monitors Currents and Voltages
  • I2C/SMBus Interface
  • Wide Operating Voltage Range: 2.9V to 29V

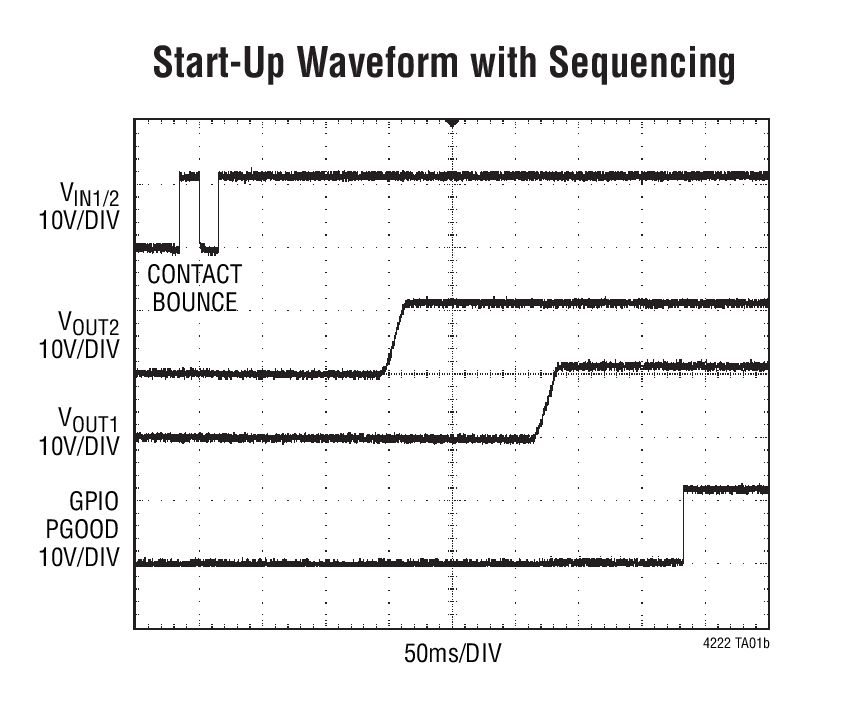

  • dI/dt Controlled Soft-Start
  • High Side Drive for External N-Channel MOSFETs
  • No External Gate Capacitors Required
  • Input Overvoltage/Undervoltage Protection
  • Optional Latchoff or Auto-Retry After Faults
  • Alert Host After Faults
  • Inrush Current Limit with Foldback

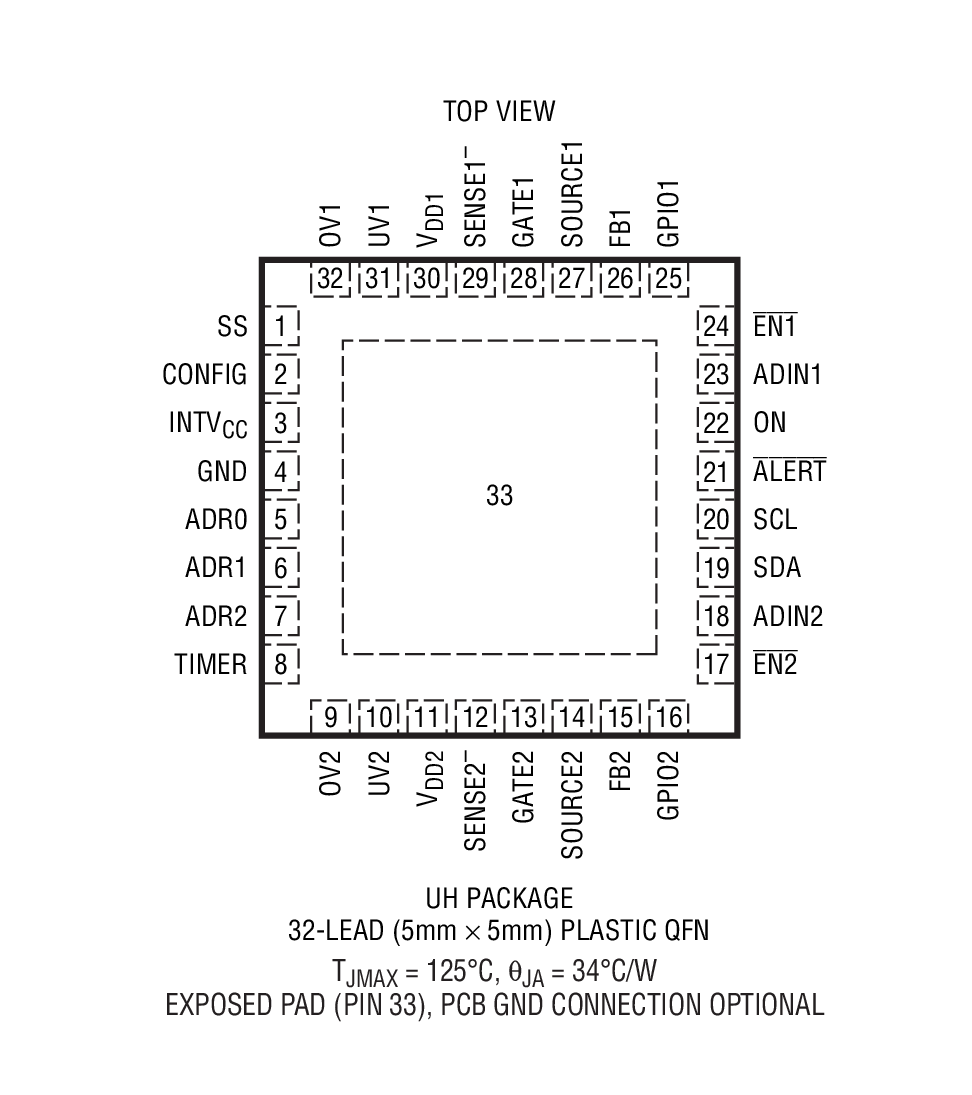

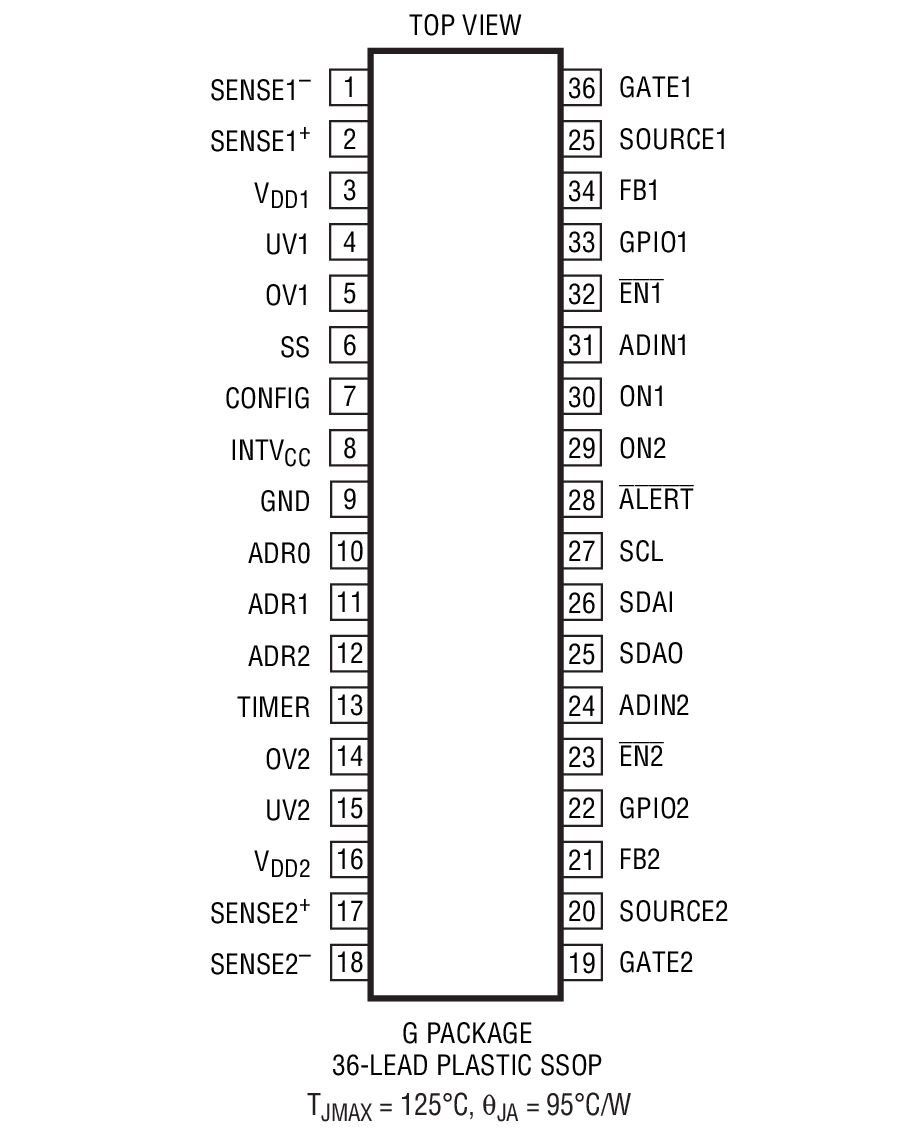

  • Available in 32-Pin (5mm × 5mm) QFN and 36-Pin SSOP Packages
