LTC4234 - 20A Guaranteed SOA Hot Swap Controller

The LTC®4234 is an integrated solution for Hot Swap™ applications that allows a board to be safely inserted and removed from a live backplane. The part integrates a Hot Swap controller, power MOSFET and current sense resistor in a single package for small form factor applications. The MOSFET Safe Operating Area is production tested and guaranteed for the stresses in Hot Swap applications.

The LTC4234 provides separate inrush current control and an 11% accurate 22.5A current limit with output dependent foldback. The current limit threshold can be adjusted dynamically using the ISET pin. Additional features include a current monitor output that amplifies the sense resistor voltage for ground referenced current sensing and a MOSFET temperature monitor output. Thermal limit, overvoltage, undervoltage and power good monitoring are also provided. For a 10A compatible version, see LTC4233.

Features
  • Allows Safe Board Insertion into Live Backplane
  • Small Footprint
  • 4mΩ MOSFET Including RSENSE
  • Safe Operating Area Guaranteed at 81W, 30ms
  • Wide Operating Voltage Range: 2.9V to 15V
  • Adjustable, 11% Accurate Current Limit
  • Current and Temperature Monitor Outputs
  • Overtemperature Protection
  • Adjustable Current Limit Timer Before Fault
  • Power Good and Fault Outputs
  • Adjustable Inrush Current Control
  • 2.5% Accurate Undervoltage and Overvoltage Protection
  • Pin Compatible with LTC4233
  • Available in a 38-Pin (5mm × 9mm) QFN Package
Typical Application

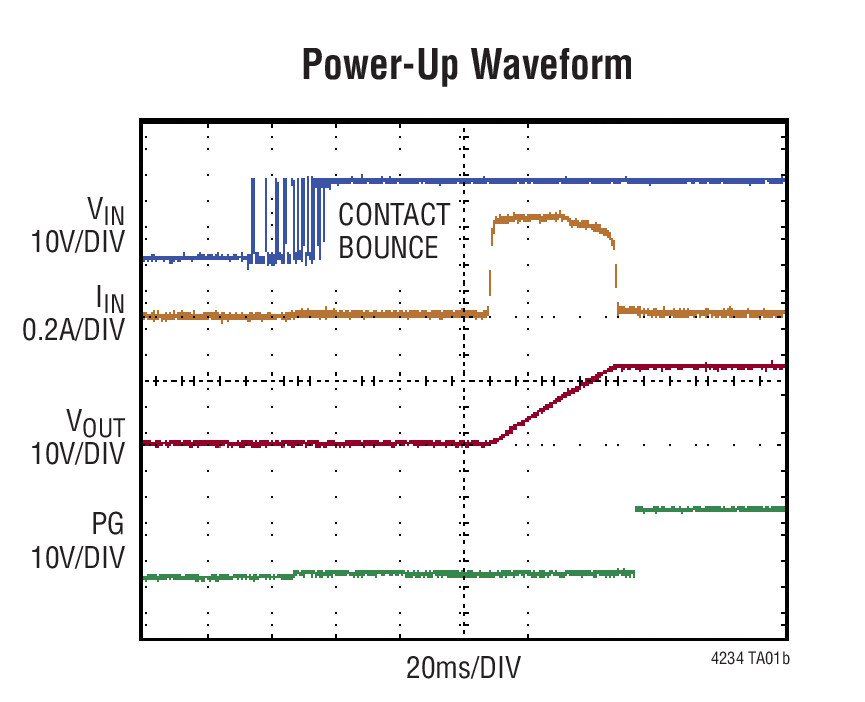

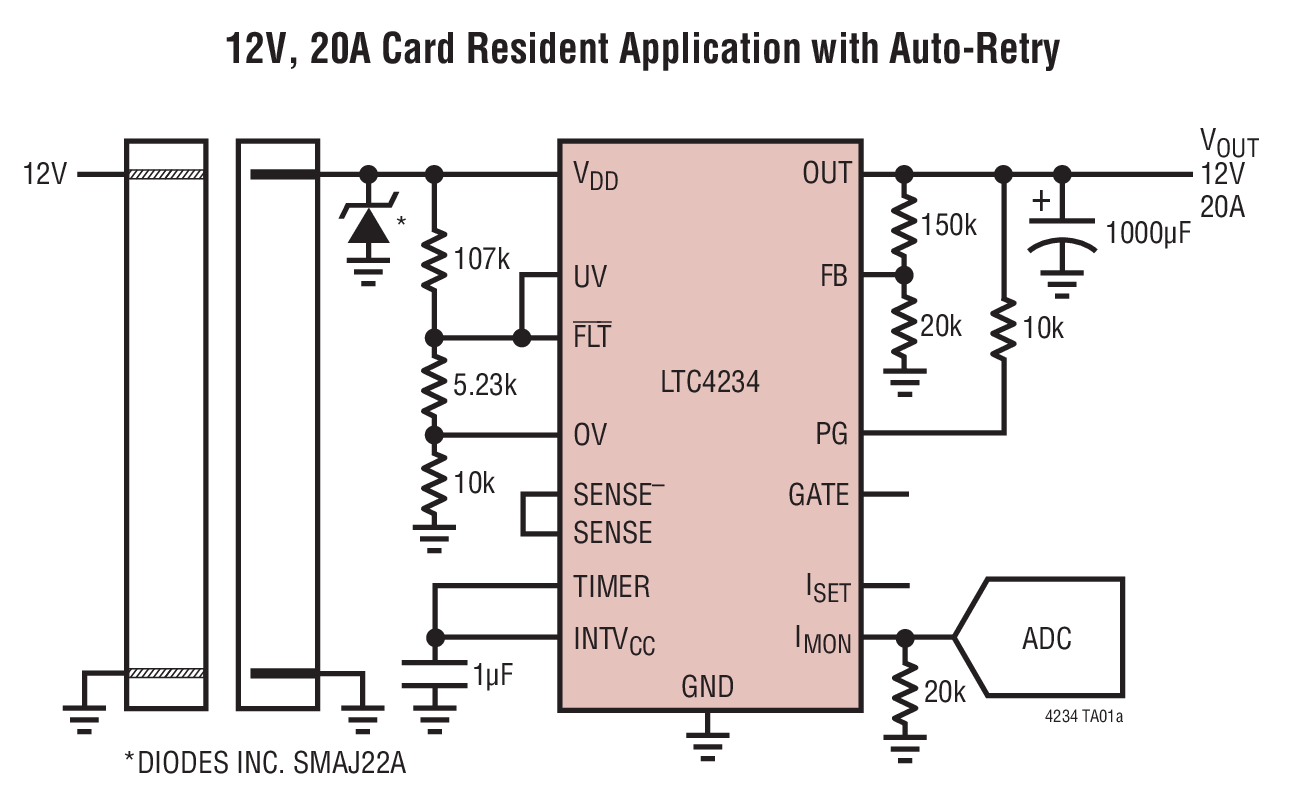

LTC4234 Typical Application
LTC4234 Typical Application
Applications
  • High Availability Servers
  • Solid State Drives
  • Industrial
  • 240W, 12V Systems
Packaging

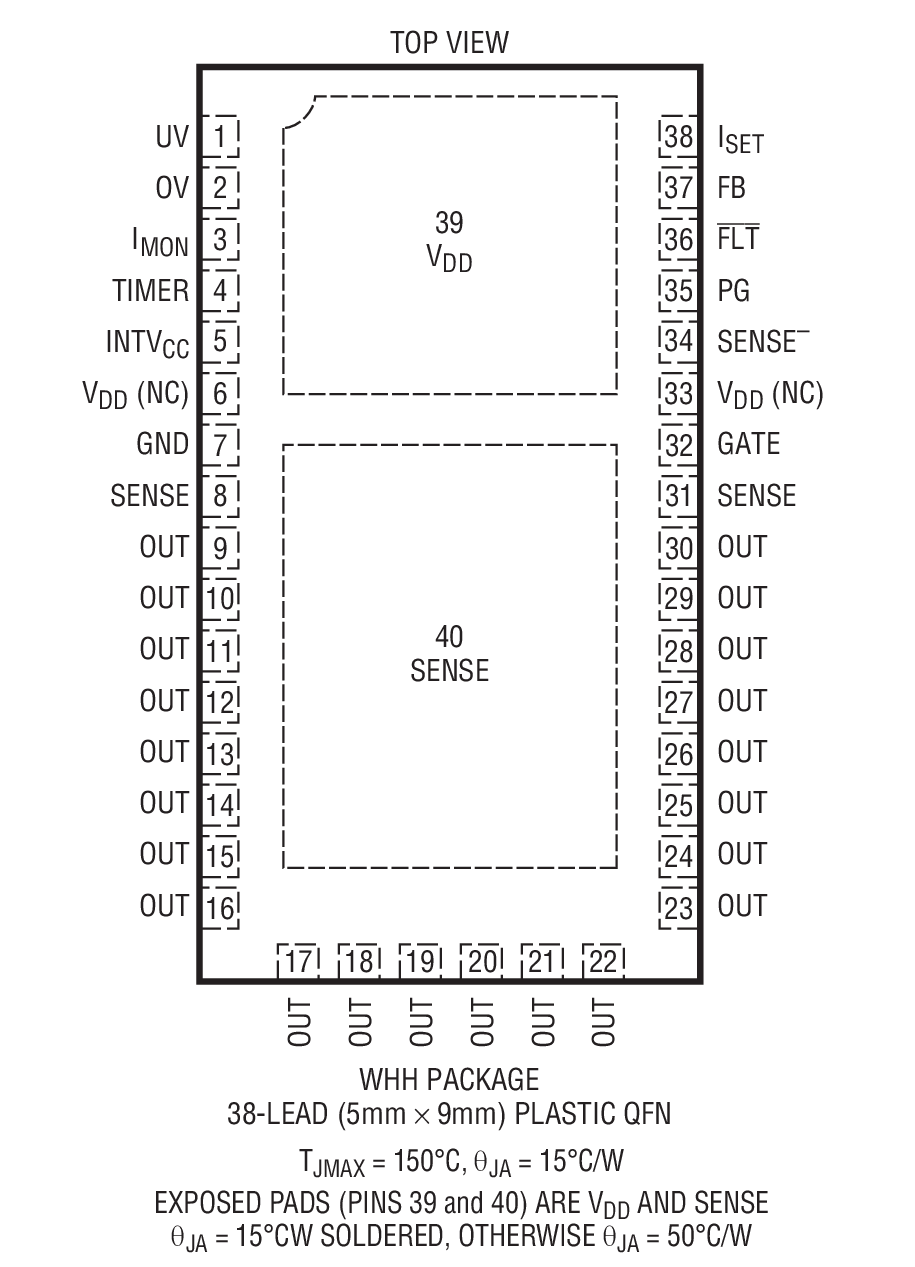

LTC4234 Package Drawing
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTC4234CWHH#PBF5x9 QFN-38C$7.07$4.95
LTC4234CWHH#TRPBF5x9 QFN-38C$7.13$5.01
LTC4234HWHH#PBF5x9 QFN-38H$8.92$6.24
LTC4234HWHH#TRPBF5x9 QFN-38H$8.98$6.30
LTC4234IWHH#PBF5x9 QFN-38I$7.78$5.45
LTC4234IWHH#TRPBF5x9 QFN-38I$7.84$5.51
Demo Boards
Part NumberDescriptionPrice
DC2116A-ALTC4234 Demo Board: 20A Guaranteed SOA Hot Swap Controller$75.00
Datasheet
Reliability Data
Product Selector Card
Press Release
CAD Symbol
LTspice
