LTC6905-XXX - Fixed Frequency SOT-23 Oscillator

Programmed at the factory to a fixed frequency, the LTC6905-XXX series of parts need no external trim components. An internal three-state divider allows for division of the master clock by 1, 2 or 4, providing 3 frequencies (for each device).

The LTC6905-XXX series operate with a single 2.7V to 5.5V power supply and provide a rail-to-rail, 50% duty cycle, square wave output. The OE pin will disable the output when brought low and synchronously enable the output when brought high, avoiding pulse slivers.

The four products of the LTC6905-XXX family are:

The LTC6905-XXX series of parts are designed with a factory trim option to modify the divider ratios from 1, 2, 4 to 8, 16, 32. A second trim option allows for additional master clock frequencies. For the alternate divider ratios and unlisted frequencies, contact LTC marketing.

Protected by U.S. Patents, including 6614313, 6342817.

Features
  • No External Components to Set Frequency
  • Frequency Error ±0.5% Typical
  • Fast Start-Up Time: 100µs Typical
  • ±20ppm/°C Temperature Stability
  • Includes Output Enable
  • Includes Divide by 1, 2 or 4
  • Rise Time: 0.5ns, CL = 5pF
  • Timing Jitter: <0.8% Typical
  • Duty Cycle: 50% ±2.5%
  • IS = 8mA Typical (fOSC = 100MHz, CL = 5pF)
  • CMOS Output Drives 600 Ohm Load
  • Single Supply 2.7V to 5.5V
  • Low Profile (1mm) ThinSOTTM Package
Typical Application

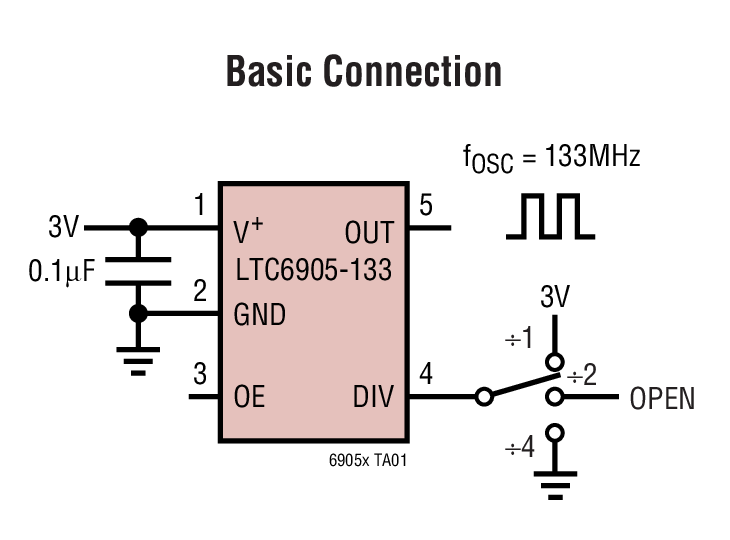

LTC6905-XXX Typical Application

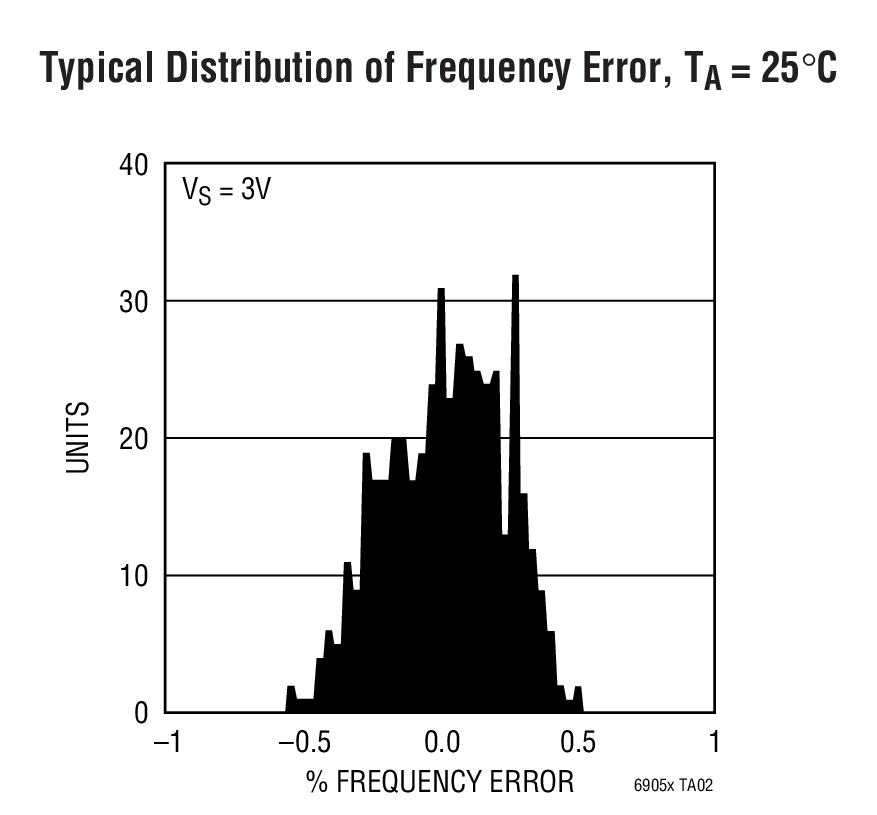

LTC6905-XXX Typical Application
Applications
  • Data Clocks for High Reliability Applications
  • High Vibration, High Acceleration Environments
  • Replacement for Fixed Crystal and Ceramic Oscillators
Packaging

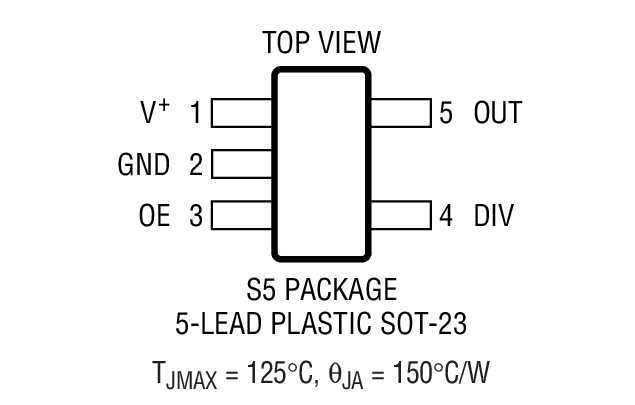

LTC6905-XXX Package Drawing
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTC6905CS5-100#PBFSOT-23C$1.71
LTC6905CS5-100#TRMPBFSOT-23C$1.71$1.17
LTC6905CS5-100#TRPBFSOT-23C$1.71$1.15
LTC6905CS5-133#PBFSOT-23C$1.71
LTC6905CS5-133#TRMPBFSOT-23C$1.71$1.17
LTC6905CS5-133#TRPBFSOT-23C$1.71$1.15
LTC6905CS5-80#PBFSOT-23C$1.71
LTC6905CS5-80#TRMPBFSOT-23C$1.71$1.17
LTC6905CS5-80#TRPBFSOT-23C$1.71$1.15
LTC6905CS5-96#PBFSOT-23C$1.71
LTC6905CS5-96#TRMPBFSOT-23C$1.71$1.17
LTC6905CS5-96#TRPBFSOT-23C$1.71$1.15
LTC6905HS5-100#PBFSOT-23H$2.45
LTC6905HS5-100#TRMPBFSOT-23H$2.45$1.75
LTC6905HS5-100#TRPBFSOT-23H$2.45$1.73
LTC6905HS5-133#PBFSOT-23H$2.45
LTC6905HS5-133#TRMPBFSOT-23H$2.45$1.75
LTC6905HS5-133#TRPBFSOT-23H$2.45$1.73
LTC6905HS5-80#PBFSOT-23H$2.45
LTC6905HS5-80#TRMPBFSOT-23H$2.45$1.75
LTC6905HS5-80#TRPBFSOT-23H$2.45$1.73
LTC6905HS5-96#PBFSOT-23H$2.45
LTC6905HS5-96#TRMPBFSOT-23H$2.45$1.75
LTC6905HS5-96#TRPBFSOT-23H$2.45$1.73
LTC6905IS5-100#PBFSOT-23I$2.04
LTC6905IS5-100#TRMPBFSOT-23I$2.04$1.46
LTC6905IS5-100#TRPBFSOT-23I$2.04$1.44
LTC6905IS5-133#PBFSOT-23I$2.04
LTC6905IS5-133#TRMPBFSOT-23I$2.04$1.46
LTC6905IS5-133#TRPBFSOT-23I$2.04$1.44
LTC6905IS5-80#PBFSOT-23I$2.04
LTC6905IS5-80#TRMPBFSOT-23I$2.04$1.46
LTC6905IS5-80#TRPBFSOT-23I$2.04$1.44
LTC6905IS5-96#PBFSOT-23I$2.04
LTC6905IS5-96#TRMPBFSOT-23I$2.04$1.46
LTC6905IS5-96#TRPBFSOT-23I$2.04$1.44
Demo Boards
Part NumberDescriptionPrice
DC2073A-DLTC6905-133 Silicon Oscillator Demo Board$50.00
DC2073A-ELTC6905-100 Silicon Oscillator Demo Board$50.00
DC2073A-FLTC6905-96 Silicon Oscillator Demo Board$50.00
DC2073A-GLTC6905-80 Silicon Oscillator Demo Board$50.00
DC2073B-BLTC1799 Silicon Oscillator Demo Board$50.00
