LTC6907 - Micropower, 40kHz to 4MHz Resistor Set Oscillator in SOT-23

A single resistor programs the oscillator frequency over a 10:1 range with better than 0.5% initial accuracy. The output frequency can be divided by 1, 3 or 10 to span a 100:1 total frequency range, 40kHz to 4MHz.

The LTC6907 is easily programmed according to this simple formula:

fout = 4MHz / N * (50k/Rset) N = {10 DIV Pin = V+, 3 DIV Pin = Open, 1 DIV Pin = GND}

The LTC6907 is available in the 6-lead SOT-23 (ThinSOT) package. Contact LTC Marketing for a version of the part with a shutdown feature or lower frequency operation.

Features

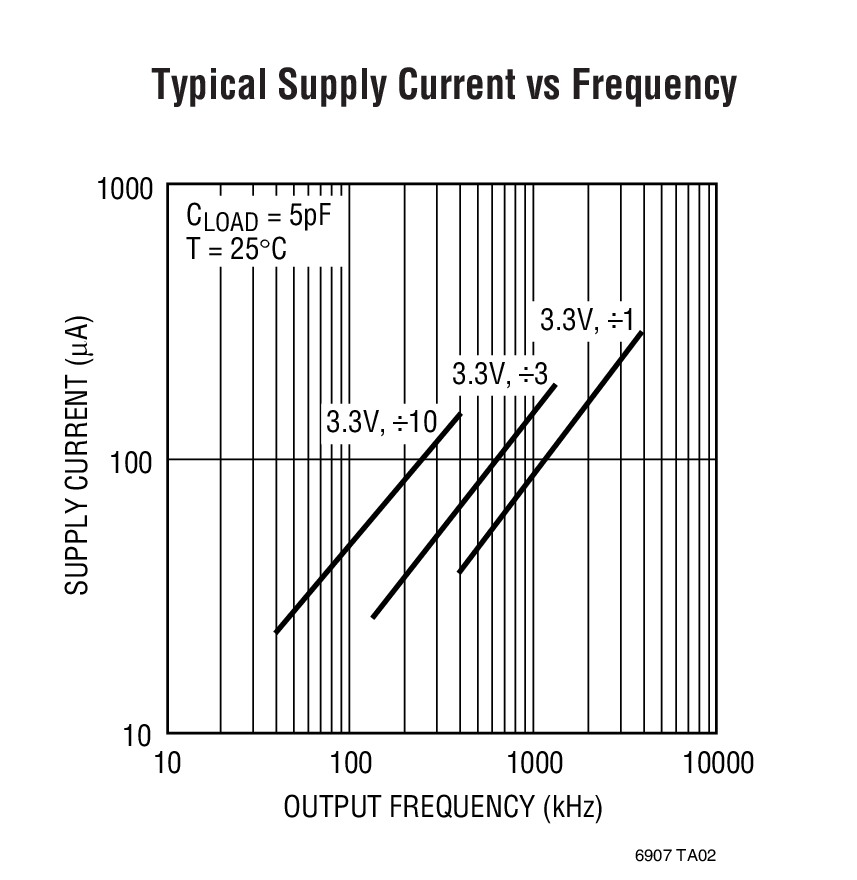

Supply Current: 36µA at 400kHz
1% Frequency Accuracy (from 0°C to 70°C)
Frequency Range: 40kHz to 4MHz
One Resistor Sets the Oscillator Frequency
–40°C to 125°C Operating Temperature Range
Start-Up Time Under 200µs at 4MHz
First Cycle After Power-Up is Accurate
150Ω CMOS Output Driver
Low Profile (1mm) SOT-23 (ThinSOTTM) Package

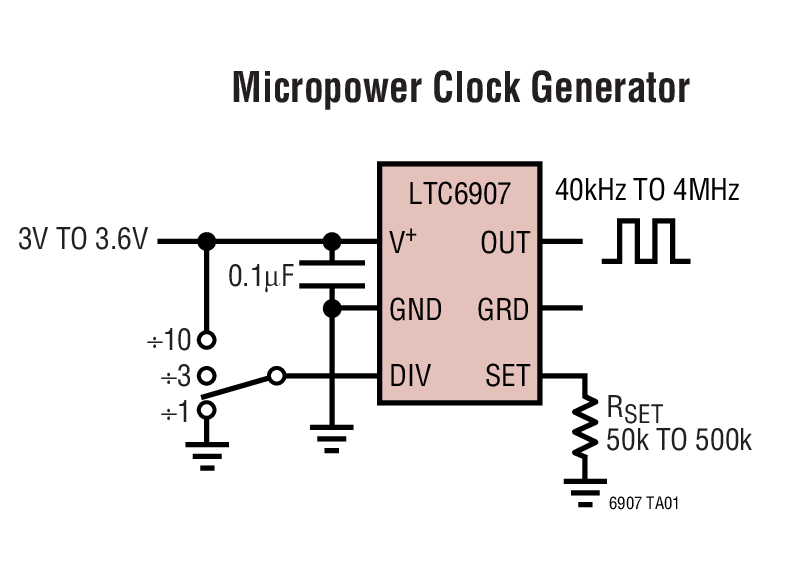

Typical Application

Applications

Low Cost Precision Programmable Oscillator
Rugged, Compact Micropower Replacement for
Crystal and Ceramic Oscillators
High Shock and Vibration Environments
Portable and Battery-Powered Equipment
PDAs and Cellular Phones

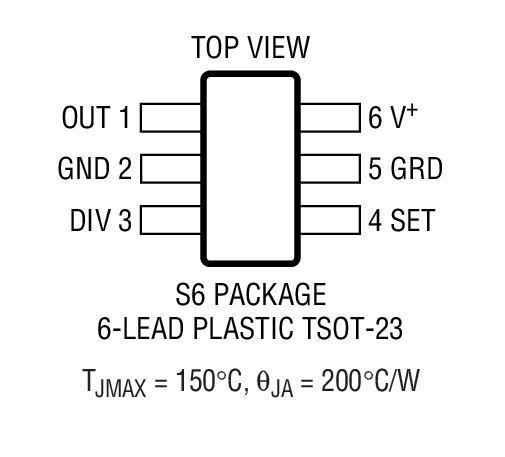

Packaging

**Order Information**
Part Number	Package	Temp	Price(1-99)	Price (1k)*
LTC6907CS6#PBF	SOT-23	C	$1.86
LTC6907CS6#TRMPBF	SOT-23	C	$1.86	$1.27
LTC6907CS6#TRPBF	SOT-23	C	$1.86	$1.25
LTC6907HS6#PBF	SOT-23	H	$2.66
LTC6907HS6#TRMPBF	SOT-23	H	$2.66	$1.89
LTC6907HS6#TRPBF	SOT-23	H	$2.66	$1.87
LTC6907IS6#PBF	SOT-23	I	$2.21
LTC6907IS6#TRMPBF	SOT-23	I	$2.21	$1.58
LTC6907IS6#TRPBF	SOT-23	I	$2.21	$1.56

Demo Boards


Part Number	Description	Price
DC2073A-I	LTC6907 Silicon Oscillator Demo Board	$50.00
DC2073B-B	LTC1799 Silicon Oscillator Demo Board	$50.00
