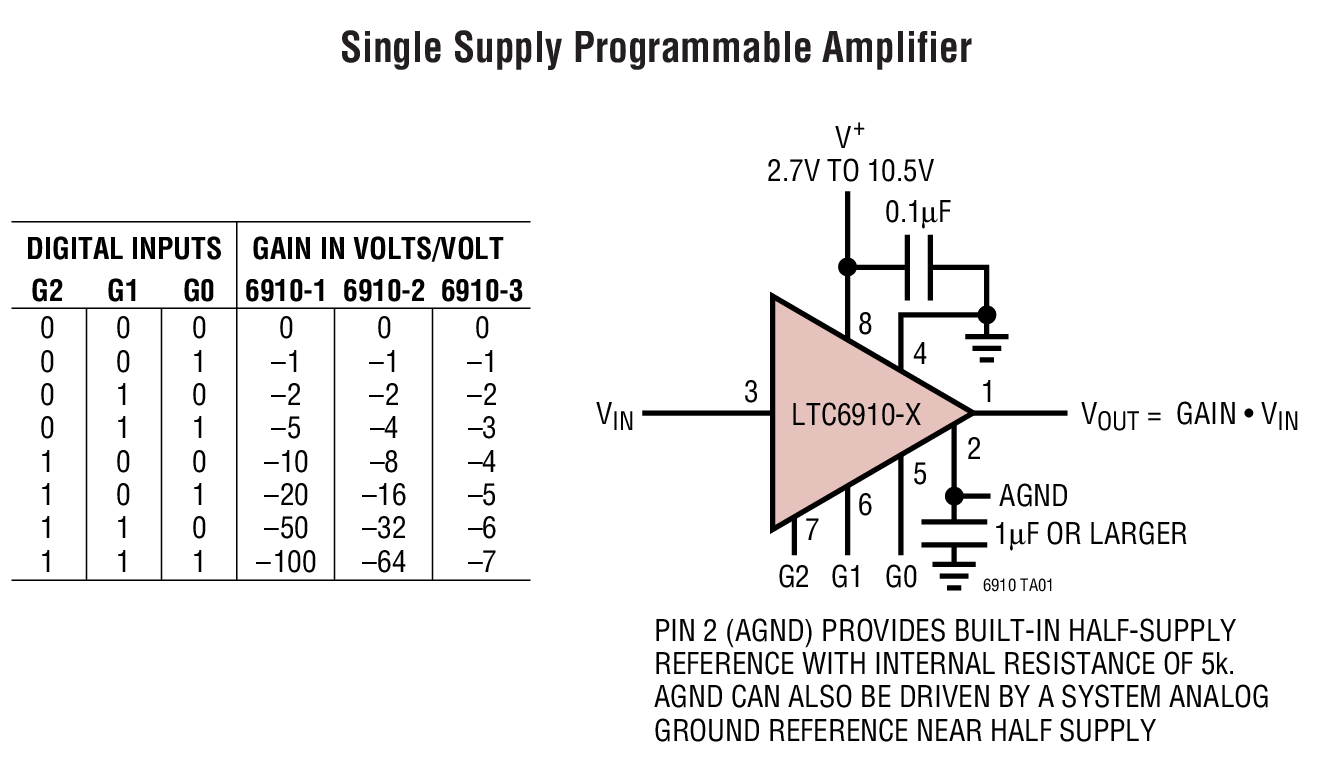

The LTC6910 family are low noise digitally programmable gain amplifiers (PGAs) that are easy to use and occupy very little PC board space. The inverting gain is adjustable using a 3-bit digital input to select gains of 0, 1, 2, 5, 10, 20, 50 and 100V/V in the LTC6910-1; 0, 1, 2, 4, 8, 16, 32 and 64V/V in the LTC6910-2; and 0, 1, 2, 3, 4, 5,6 and 7V/V in the LTC6910-3.

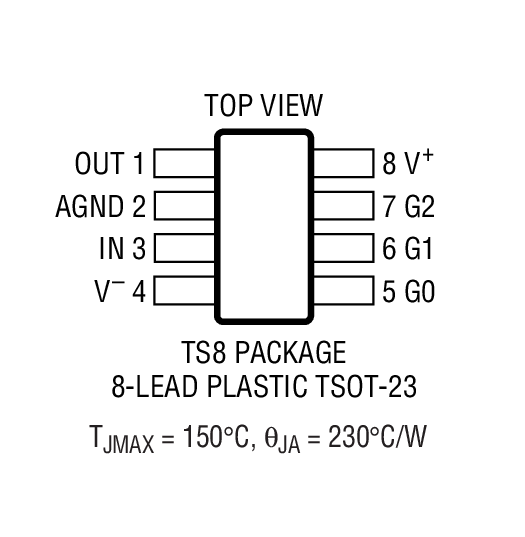

The LTC6910-Xs are inverting amplifiers with rail-to-rail output. When operated with unity gain, they will also process rail-to-rail input signals. A half-supply reference generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V, the LTC6910-X family is offered in an 8-lead SOT-23 package.
Part Number | Package | Temp | Price(1-99) | Price (1k)* |
---|---|---|---|---|
LTC6910-1CTS8#PBF | SOT-23 | C | $2.06 | |
LTC6910-1CTS8#TRMPBF | SOT-23 | C | $2.06 | $1.12 |
LTC6910-1CTS8#TRPBF | SOT-23 | C | $2.06 | $1.10 |
LTC6910-1HTS8#PBF | SOT-23 | H | $2.45 | |
LTC6910-1HTS8#TRMPBF | SOT-23 | H | $2.45 | $1.48 |
LTC6910-1HTS8#TRPBF | SOT-23 | H | $2.45 | $1.46 |
LTC6910-1ITS8#PBF | SOT-23 | I | $2.46 | |
LTC6910-1ITS8#TRMPBF | SOT-23 | I | $2.46 | $1.38 |
LTC6910-1ITS8#TRPBF | SOT-23 | I | $2.46 | $1.36 |
LTC6910-2CTS8#PBF | SOT-23 | C | $2.06 | |
LTC6910-2CTS8#TRMPBF | SOT-23 | C | $2.06 | $1.12 |
LTC6910-2CTS8#TRPBF | SOT-23 | C | $2.06 | $1.10 |
LTC6910-2HTS8#PBF | SOT-23 | H | $2.45 | |
LTC6910-2HTS8#TRMPBF | SOT-23 | H | $2.45 | $1.48 |
LTC6910-2HTS8#TRPBF | SOT-23 | H | $2.45 | $1.46 |
LTC6910-2ITS8#PBF | SOT-23 | I | $2.46 | |
LTC6910-2ITS8#TRMPBF | SOT-23 | I | $2.46 | $1.38 |
LTC6910-2ITS8#TRPBF | SOT-23 | I | $2.46 | $1.36 |
LTC6910-3CTS8#PBF | SOT-23 | C | $2.06 | |
LTC6910-3CTS8#TRMPBF | SOT-23 | C | $2.06 | $1.12 |
LTC6910-3CTS8#TRPBF | SOT-23 | C | $2.06 | $1.10 |
LTC6910-3HTS8#PBF | SOT-23 | H | $2.45 | |
LTC6910-3HTS8#TRMPBF | SOT-23 | H | $2.45 | $1.48 |
LTC6910-3HTS8#TRPBF | SOT-23 | H | $2.45 | $1.46 |
LTC6910-3ITS8#PBF | SOT-23 | I | $2.46 | |
LTC6910-3ITS8#TRMPBF | SOT-23 | I | $2.46 | $1.38 |
LTC6910-3ITS8#TRPBF | SOT-23 | I | $2.46 | $1.36 |
Part Number | Description | Price |
---|---|---|
DC566A-A | LTC6910-1CTS8 | Digitally Controlled Programmable-Gain Amplifier | $50.00 |
DC566A-B | LTC6910-2CTS8 | Digitally Controlled Programmable-Gain Amplifier | $50.00 |
DC566A-C | LTC6910-3CTS8 | Digitally Controlled Programmable-Gain Amplifier | $50.00 |
