LTC6994 - TimerBlox: Delay Block/ Debouncer

The LTC®6994 is a programmable delay block with a range of 1μs to 33.6 seconds. The LTC6994 is part of the TimerBlox® family of versatile silicon timing devices.

A single resistor, RSET , programs an internal master oscillator frequency, setting the LTC6994’s time base. The input-to-output delay is determined by this master oscillator and an internal clock divider, NDIV , programmable to eight settings from 1 to 221:

Features
  • Delay Range: 1μs to 33.6 Seconds
  • Configured with 1 to 3 Resistors
  • Delay Max Error: -  <2.3% for Delay > 512µs -  <3.4% for Delay of 8µs to 512µs -  <5.1% for Delay of 1µs to 8µs
  • Delay One or Both Rising/Falling Edges
  • 2.25V to 5.5V Single Supply Operation
  • 70μA Supply Current at 10μs Delay
  • 500μs Start-Up Time
  • CMOS Output Driver Sources/Sinks 20mA
  • –55°C to 125°C Operating Temperature Range
  • Available in Low Profile (1mm) SOT-23 (ThinSOT™) and 2mm × 3mm DFN
  • Click here to start your design with the LTC6994 Online Design Tool!

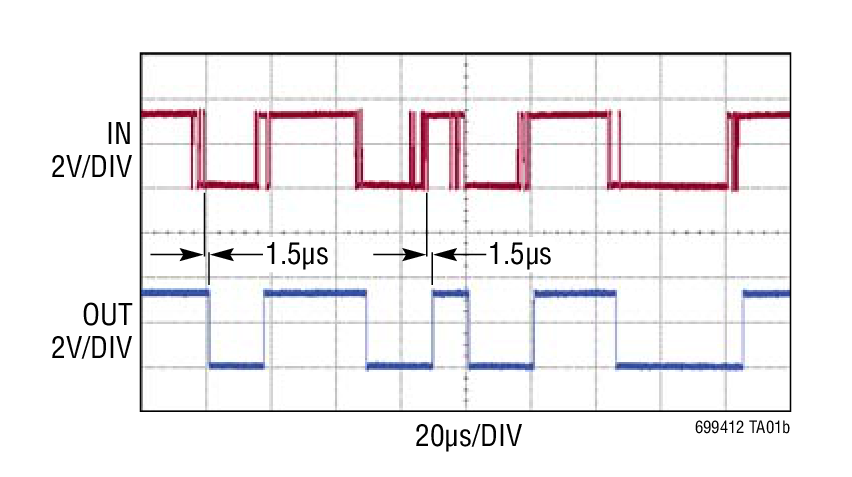

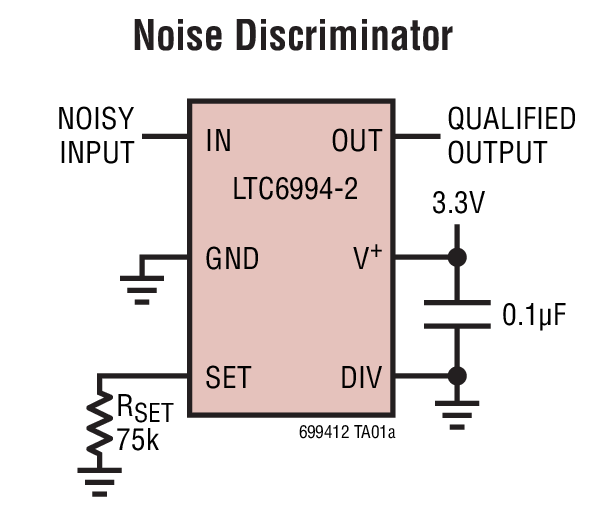

Typical Application
LTC6994-1 Typical Application
LTC6994-1 Typical Application
Applications
  • Noise Discriminators/Pulse Qualifiers
  • Delay Matching
  • Switch Debouncing
  • High Vibration, High Acceleration Environments
  • Portable and Battery-Powered Equipment
Packaging

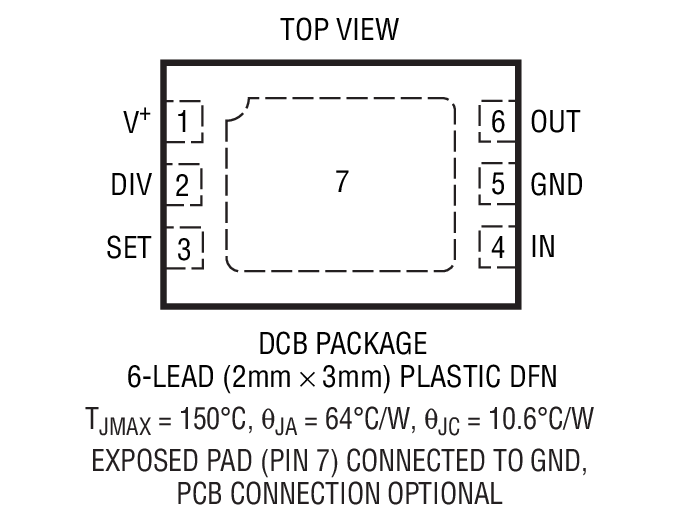

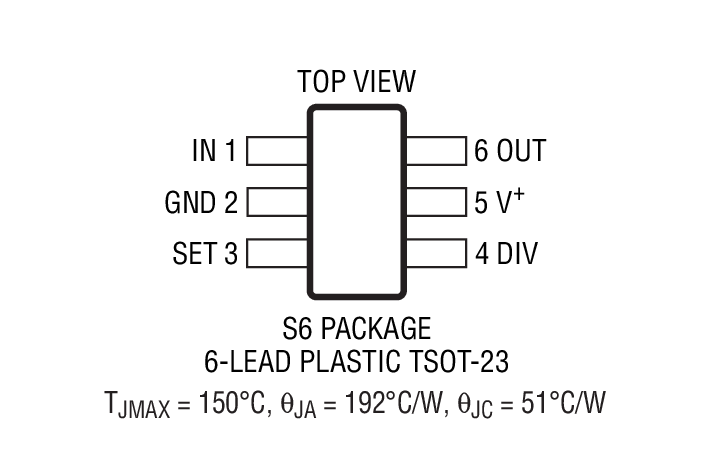

LTC6994-1 Package Drawing
LTC6994-1 Package Drawing
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTC6994CDCB-1#PBF2x3 DFN-6C$1.88
LTC6994CDCB-1#TRMPBF2x3 DFN-6C$1.88$1.40
LTC6994CDCB-1#TRPBF2x3 DFN-6C$1.88$1.35
LTC6994CDCB-2#PBF2x3 DFN-6C$1.88
LTC6994CDCB-2#TRMPBF2x3 DFN-6C$1.88$1.40
LTC6994CDCB-2#TRPBF2x3 DFN-6C$1.88$1.35
LTC6994CS6-1#PBFSOT-23C$1.88
LTC6994CS6-1#TRMPBFSOT-23C$1.88$1.40
LTC6994CS6-1#TRPBFSOT-23C$1.88$1.35
LTC6994CS6-2#PBFSOT-23C$1.88
LTC6994CS6-2#TRMPBFSOT-23C$1.88$1.40
LTC6994CS6-2#TRPBFSOT-23C$1.88$1.35
LTC6994HDCB-1#PBF2x3 DFN-6H$2.63
LTC6994HDCB-1#TRMPBF2x3 DFN-6H$2.63$1.94
LTC6994HDCB-1#TRPBF2x3 DFN-6H$2.63$1.89
LTC6994HDCB-2#PBF2x3 DFN-6H$2.63
LTC6994HDCB-2#TRMPBF2x3 DFN-6H$2.63$1.94
LTC6994HDCB-2#TRPBF2x3 DFN-6H$2.63$1.89
LTC6994HS6-1#PBFSOT-23H$2.63
LTC6994HS6-1#TRMPBFSOT-23H$2.63$1.94
LTC6994HS6-1#TRPBFSOT-23H$2.63$1.89
LTC6994HS6-2#PBFSOT-23H$2.63
LTC6994HS6-2#TRMPBFSOT-23H$2.63$1.94
LTC6994HS6-2#TRPBFSOT-23H$2.63$1.89
LTC6994IDCB-1#PBF2x3 DFN-6I$2.16
LTC6994IDCB-1#TRMPBF2x3 DFN-6I$2.16$1.60
LTC6994IDCB-1#TRPBF2x3 DFN-6I$2.16$1.55
LTC6994IDCB-2#PBF2x3 DFN-6I$2.16
LTC6994IDCB-2#TRMPBF2x3 DFN-6I$2.16$1.60
LTC6994IDCB-2#TRPBF2x3 DFN-6I$2.16$1.55
LTC6994IS6-1#PBFSOT-23I$2.16
LTC6994IS6-1#TRMPBFSOT-23I$2.16$1.60
LTC6994IS6-1#TRPBFSOT-23I$2.16$1.55
LTC6994IS6-2#PBFSOT-23I$2.16
LTC6994IS6-2#TRMPBFSOT-23I$2.16$1.60
LTC6994IS6-2#TRPBFSOT-23I$2.16$1.55
LTC6994MPS6-1#PBFSOT-23MP$5.64
LTC6994MPS6-1#TRMPBFSOT-23MP$5.64$4.10
LTC6994MPS6-1#TRPBFSOT-23MP$5.64$4.05
LTC6994MPS6-2#PBFSOT-23MP$5.64
LTC6994MPS6-2#TRMPBFSOT-23MP$5.64$4.10
LTC6994MPS6-2#TRPBFSOT-23MP$5.64$4.05
Demo Boards
Part NumberDescriptionPrice
DC1562B-KLTC6994-1: 100ms, Falling Edge, Delayed from Trigger Falling Edge$25.00
DC1562B-LLTC6994-2 Demo Board | 100ms, Output Rising Edge Delayed from Trigger Rising Edge$25.00
