MAX4820:+3.3V/+5V, 8-Channel, Cascadable Relay Drivers with Serial/Parallel Interface

8-Channel, +3V/+5V, Cascadable Relay Drivers with Serial/Parallel Interface

The MAX4820/MAX4821 8-channel relay drivers offer built-in kickback protection and drive +3.3V/+5V nonlatching or dual-coil-latching relays. These devices are especially useful when driving +3V relays. Each independent open-drain output features a 2Ω on-resistance and is guaranteed to sink 70mA (min) of load current. Both devices consume less than 50µA (max) quiescent current and have 1µA output off-leakage current. The MAX4820 features an SPI™-/QSPI™-/MICROWIRE™-compatible serial interface. Input data is shifted into an 8-bit shift register and latched to the outputs when active-low CS transitions from low to high. Each data bit in the shift register corresponds to a specific output, allowing independent control of all outputs. The MAX4821 features a 4-bit (A0, A1, A2, LVL) parallel-input interface. The first three bits (A0, A1, A2) determine the output address, and the fourth bit (LVL) determines whether the selected output is switched on or off. Data is latched to the outputs when active-low CS transitions from low to high. Both devices feature separate set and reset functions that allow the user to turn on or turn off all outputs simultaneously with a single control line. Built-in hysteresis (Schmidt trigger) on all digital inputs allows these devices to be used with slow rising and falling signals, such as those from optocouplers or RC power-up initialization circuits. The MAX4820/MAX4821 are available in 20-pin TSSOP and space-saving 20-pin thin QFN packages.

Key Features
  • 8 Independent Output Channels
  • Built-In Inductive Kickback Protection
  • Drive +3V and +5V Relays
  • Guaranteed 70mA (min) Coil Drive Current
  • Active-Low SET Function to Turn On All Outputs Simultaneously
  • Active-Low RESET Function to Turn Off All Outputs Simultaneously
  • SPI-/QSPI-/MICROWIRE-Compatible Serial Interface (MAX4820)
  • Serial Digital Output for Daisy Chaining (MAX4820)
  • Parallel Interface (MAX4821)
  • Low 50µA (max) Quiescent Supply Current
  • Space-Saving 20-Pin Thin QFN Package

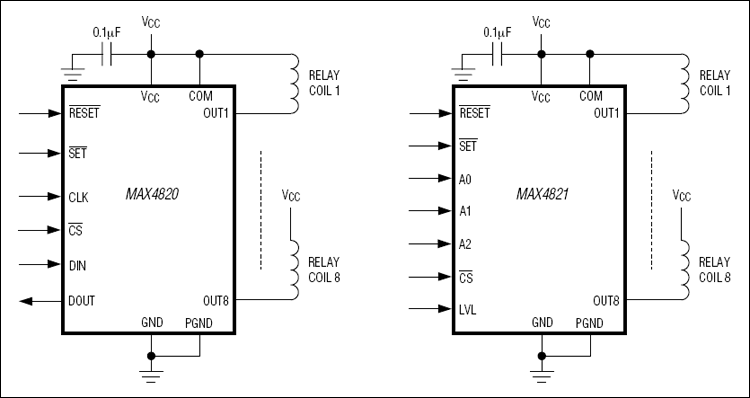

MAX4820, MAX4821: Typical Application Circuits
MAX4820, MAX4821: Typical Application Circuits
Applications/Uses
  • Automated Test Equipment (ATE)
  • Central Office
  • DSL, ADSL Line Cards
  • E1/T1 Redundancy
  • Industrial Equipment
DataSheet
titleDownload file
MAX4820-MAX4821 Data SheetMAX4820-MAX4821.pdf
Parametrics
Part NumberISOURCE @2.7V
(mA)
RON @2.7V
(Ω)
IQ
(µA)
ChannelsInterfaceVSUPPLY
(V)
Package/PinsBudgetary
Price
guar. minmaxmaxSee Notes
MAX4820706508SPI2.3 to 5.5TQFN/20
TSSOP-EP/20
$1.81 @1k
MAX4821ParallelTQFN/20
TSSOP-EP/20
Quality and Environmental Data
Ordering Information
Part NumberStatusRecommended ReplacementPackageTempRoHS
MAX4820ETPNo Longer AvailableMAX4820ETP+TQFN,;20 pin;16.8 mm²-40°C to +85°CNo
MAX4820ETP+ActiveTQFN,;20 pin;16.8 mm²-40°C to +85°CLead Free
MAX4820ETP+TActiveTQFN,;20 pin;16.8 mm²-40°C to +85°CLead Free
MAX4820ETP-TNo Longer AvailableMAX4820ETP+TQFN;20 pin-40°C to +85°CSee data sheet
MAX4820EUPNo Longer AvailableMAX4820EUP+TSSOP-EP,;20 pin;42.9 mm²-40°C to +85°CNo
MAX4820EUP+ActiveTSSOP-EP,;20 pin;42.9 mm²-40°C to +85°CLead Free
MAX4820EUP+TActiveTSSOP-EP,;20 pin;42.9 mm²-40°C to +85°CLead Free
MAX4820EUP-TNo Longer AvailableMAX4820EUP+TTSSOP;20 pin-40°C to +85°CSee data sheet
