LT4256-3 Positive High Voltage Hot Swap Controller with Open-Circuit Detect

The LT®4256-3 is a high voltage Hot Swap™ controller that allows a board to be safely inserted and removed from a live backplane. An internal driver controls the high side N-channel MOSFET gate for supply voltages ranging from 10.8V to 80V. The part features an open-circuit detect (OPEN) output that indicates abnormally low load current conditions.

The LT4256-3 also features an adjustable analog foldback current limit. If the supply remains in current limit for more than a programmable time, the N-channel MOSFET shuts off, the PWRGD output asserts low and the LT4256-3 either automatically restarts after a time-out delay or latches off until the UV pin is cycled low (depending on the status of the RETRY pin).

The PWRGD output indicates when the output voltage rises above a programmed level. An external resistor string from VCC provides programmable undervoltage and overvoltage protection.

The LT4256-3 is available in a 16-lead SSOP package

产品特点 Features
  • Allows Safe Board Insertion and Removal from a Live Backplane
  • Controls Supply Voltage from 10.8V to 80V
  • Foldback Current Limiting
  • Open Circuit and Overcurrent Fault Detect
  • Drives an External N-Channel MOSFET
  • Automatic Retry or Latched Off Operation After Overcurrent Fault
  • Programmable Supply Voltage Power-Up Rate
  • Open MOSFET Detection
  • 1% Over and Undervoltage Detection Accuracy
  • Available in a 16-Lead SSOP Package
参数
LT4256-3 参数
应用
  • Hot Board Insertion
  • Electronic Circuit Breaker/Power Bussing
  • Industrial High Side Switch/Circuit Breaker
  • 24V/48V Industrial/Alarm Systems
  • Ideally Suited for 12V, 24V and 48V Distributed Power Systems
  • 48V Telecom Systems
典型应用图

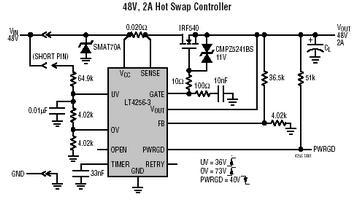

LT4256-3 典型应用
LT4256-3 订购信息和价格参考Package Variations and Pricing
器件型号 封装 引脚 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量) *
LT4256-3CS8 SO 8 C $2.50 $1.75
LT4256-3CS8#PBF SO 8 C $2.50 $1.75
LT4256-3CS8#TR SO 8 C $1.81
LT4256-3CS8#TRPBF SO 8 C $1.81
LT4256-3IS8 SO 8 I $2.86 $2.00
LT4256-3IS8#PBF SO 8 I $2.86 $2.00
LT4256-3IS8#TR SO 8 I $2.06
LT4256-3IS8#TRPBF SO 8 I $2.06
LT4256-2CS8 SO 8 C $2.50 $1.75
LT4256-2CS8#PBF SO 8 C $2.50 $1.75
LT4256-2CS8#TR SO 8 C $1.81
LT4256-2CS8#TRPBF SO 8 C $1.81
LT4256-2IS8 SO 8 I $2.86 $2.00
LT4256-2IS8#PBF SO 8 I $2.86 $2.00
LT4256-2IS8#TR SO 8 I $2.06
LT4256-2IS8#TRPBF SO 8 I $2.06
LT4256-3CGN SSOP 16 C $2.95 $2.10
LT4256-3CGN#PBF SSOP 16 C $2.95 $2.10
LT4256-3CGN#TR SSOP 16 C $2.16
LT4256-3CGN#TRPBF SSOP 16 C $2.16
LT4256-3IGN SSOP 16 I $3.48 $2.45
LT4256-3IGN#PBF SSOP 16 I $3.48 $2.45
LT4256-3IGN#TR SSOP 16 I $2.51
LT4256-3IGN#TRPBF SSOP 16 I $2.51
LT4256-3 数据手册及相关资料下载
  1. 数据手册(英文) : LT4256-3 - Positive High Voltage Hot Swap Controller with Open-Circuit Detect.PDF
  2. 可靠性数据 : R568 Reliability Data .PDF
  3. 产品选型卡 : High Voltage Hot Swap Controllers.PDF
