LT5568 - 700MHz 至 1050MHz 高线性度直接正交调制器

The LT5568 is a direct I/Q modulator designed for high performance wireless applications, including wireless infrastructure. It allows direct modulation of an RF signal using differential baseband I and Q signals. It supports PHS, GSM, EDGE, TD-SCDMA, CDMA, CDMA2000, WCDMA, and other systems. It may also be confi gured as an image reject upconverting mixer, by applying 90° phase-shifted signals to the I and Q inputs. The I/Q baseband inputs consist of voltage-to-current converters that in turn drive double-balanced mixers. The outputs of these mixers are summed and applied to an on-chip RF transformer, which converts the differential mixer signals to a 50Ω single-ended output. The four balanced I and Q baseband input ports are intended for DC coupling from a source with a common mode voltage level of about 0.5V. The LO path consists of an LO buffer with single-ended input, and precision quadrature generators that produce the LO drive for the mixers. The supply voltage range is 4.5V to 5.25V.

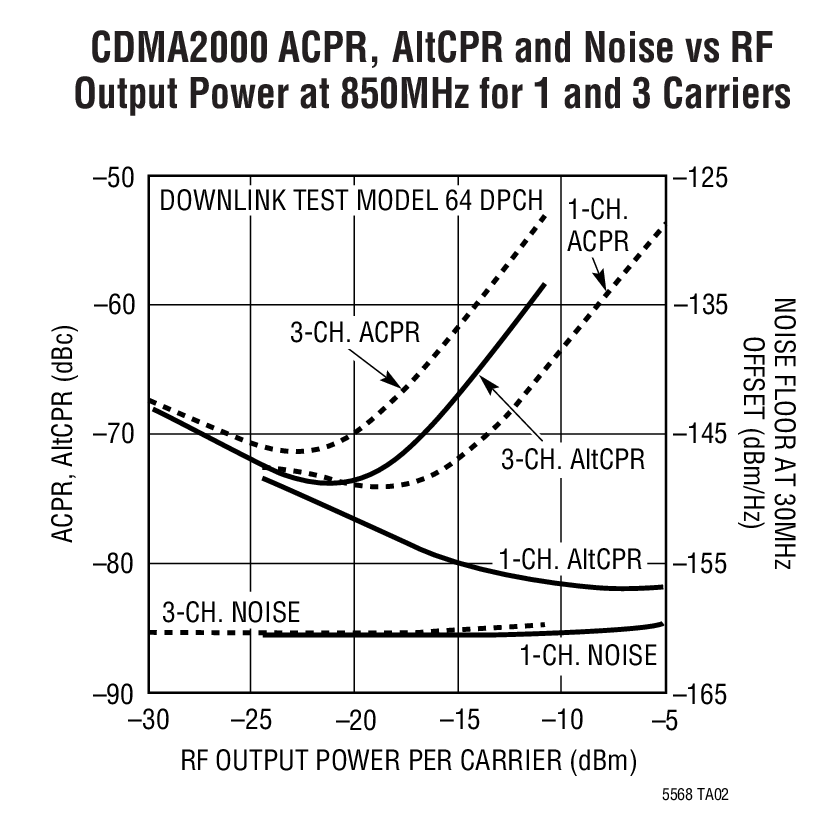

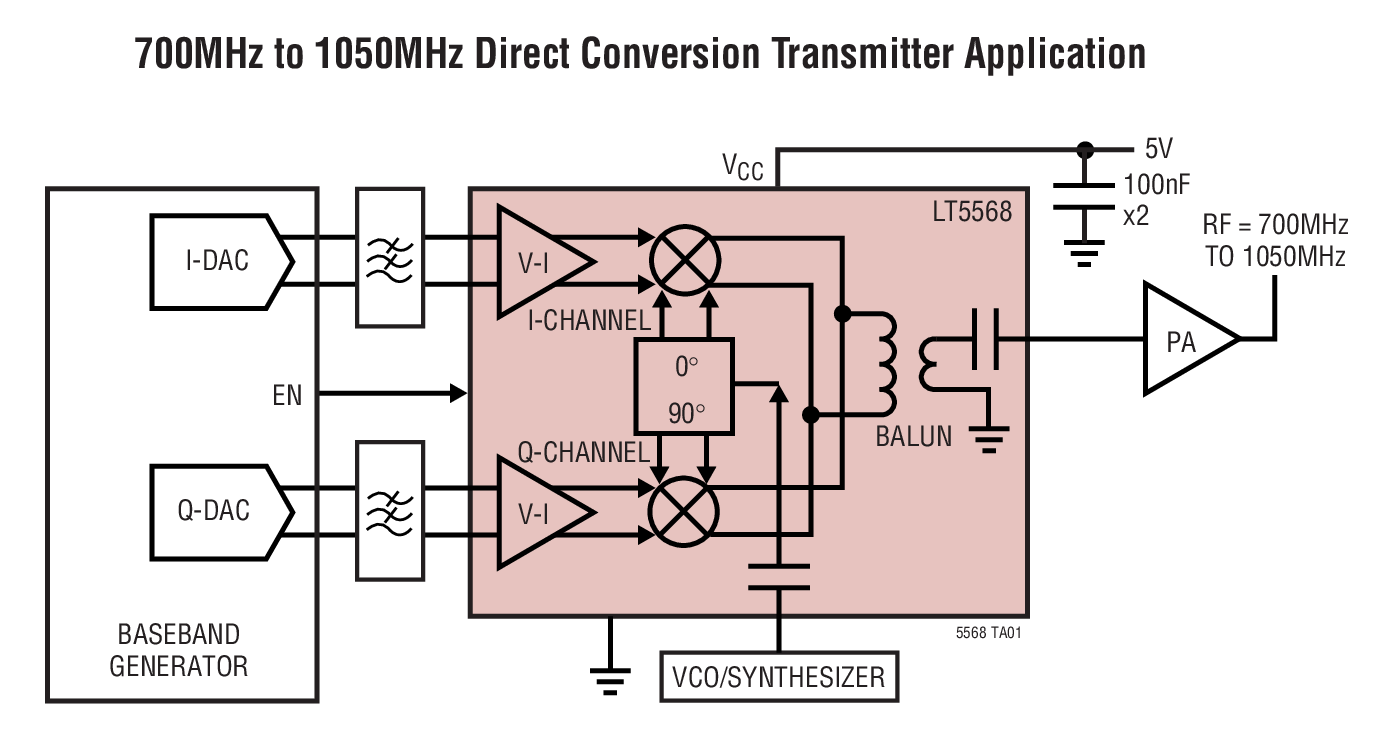

特点 Frequency Range: 700MHz to 1050MHz High OIP3: +22.9dBm at 850MHz Low Output Noise Floor at 5MHz Offset: No RF: –160.3dBm/Hz POUT = 4dBm: –154dBm/Hz 3-Ch CDMA2000 ACPR: –71.4dBc at 850MHz Integrated LO Buffer and LO Quadrature Phase Generator 50Ω AC-Coupled Single-Ended LO and RF Ports 50Ω DC Interface to Baseband Inputs Low Carrier Leakage: –43dBm at 850MHz High Image Rejection: –46dBc at 850MHz 16-Lead 4mm × 4mm QFN Package 典型应用

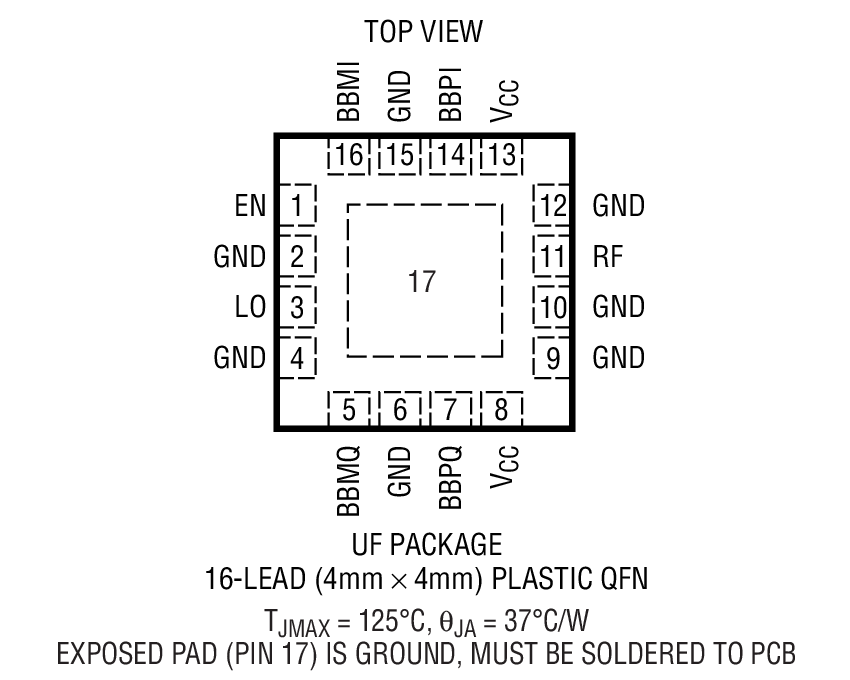

应用 Infrastructure Tx for Cellular Bands Image Reject Up-Converters for Cellular Bands Low-Noise Variable Phase-Shifter for 700MHz to 1050MHz Local Oscillator Signals RFID Reader 封装信息

演示电路板
