LTC4240 CompactPCI Hot Swap Controller with I²C Compatible Interface
The LTC®4240 is a Hot Swap™ controller that allows a board to be safely inserted and removed from a live CompactPCI bus slot. The LTC4240 has a built-in 2-wire I²C compatible interface to allow software control and monitoring of device function and power supply status. Two external N-channel transistors control the 3.3V and 5V supplies, while two internal switches control the –12V and 12V supplies. Electronic circuit breakers protect all four supplies against overcurrent faults. The PWRGD output indicates when all of the supply voltages are within tolerance. The OFF/ON pin is used to cycle the board power or reset the circuit breaker. The I²C interface allows the user to turn the device off or on, set RESETOUT, turn on the status LED driver and ignore 12V, –12V faults. It also allows the user to read the status of the FAULT, RESETIN, RESETOUT, PWRGD, PRSNT1# and PRSNT2# pins. Under a fault condition, the I²C interface can also be used to determine which of the four supplies generated the fault. The LTC4240 is available in a 28-pin narrow SSOP package
产品特点 Features
- Allows Safe Board Insertion and Removal from a Live CompactPCI™ Bus
- I²C™ Compatible 2-Wire Interface
- PRECHARGE Output Biases I/O Pins During Card Insertion and Extraction
- Controls 3.3V, 5V, 12V and –12V Supplies
- Foldback Current Limit with Circuit Breaker
- LOCAL_PCI_RST# Logic On-Board
- QuickSwitch® Enable Output
- Status LED Driver
- User Programmable Supply Voltage Power-Up Rate
- Registers Individual Supply Faults
- Available in a 28-Pin Narrow SSOP Package
|
应用
- Hot Board Insertion into CompactPCI Bus
- Electronic Circuit Breaker

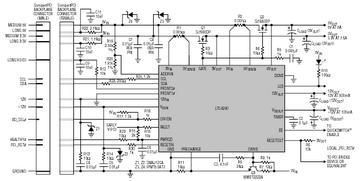

典型应用图
参数
 |
LTC4240 订购信息和价格参考Package Variations and Pricing
| 器件型号 |
封装 |
引脚 |
温度 |
价格 (以 1 ~ 99 片为批量) |
价格 (以 1000 片为批量) * |
| LTC4240CGN |
SSOP |
28 |
C |
$5.25 |
$4.25 |
| LTC4240CGN#PBF |
SSOP |
28 |
C |
$5.25 |
$4.25 |
| LTC4240CGN#TR |
SSOP |
28 |
C |
|
$4.65 |
| LTC4240CGN#TRPBF |
SSOP |
28 |
C |
|
$4.65 |
| LTC4240IGN |
SSOP |
28 |
I |
$6.00 |
$4.90 |
| LTC4240IGN#PBF |
SSOP |
28 |
I |
$6.00 |
$4.90 |
| LTC4240IGN#TR |
SSOP |
28 |
I |
|
$5.00 |
| LTC4240IGN#TRPBF |
SSOP |
28 |
I |
|
$5.00 |
LTC4240 数据手册及相关资料下载
- 数据手册(英文) : LTC4240 - CompactPCI Hot Swap Controller with I²C Compatible Interface.PDF
- 可靠性数据 : R427 Reliability Data .PDF
- 产品选型卡 : Low Voltage Hot Swap Controllers.PDF
