LTC4241 PCI-Bus with 3.3V Auxiliary Hot Swap Controller

The LTC®4241 is a Hot Swap controller that allows a board to be safely inserted and removed from a live PCI-bus slot. It has a primary controller that controls the four PCI supplies and an independent auxiliary controller to controlthe 3.3V auxiliary supply. External N-channel transistors are used to control the 3.3V, 5V and 3.3V auxiliary supplies while on-chip switches control the –12V and 12V supplies. The 3.3V, 5V and 3.3V auxiliary supplies can be ramped upat an adjustable rate. Electronic circuit breakers protect all five supplies against overcurrent faults. The foldback current limit feature reduces current spikes and power dissipation when shorts occur. The PWRGD output of the primary controller indicates when all four PCI supplies are within tolerance. The FAULT output indicates an overcurrent condition for any of the five supplies.

The LTC4241 is available in the 20-pin narrow SSOP package

产品特点 Features
  • Allows Safe Board Insertion and Removal from a Live PCI Slot
  • Controls 3.3V, 5V, –12V, 12V and 3.3V Auxiliary Supplies
  • Independent 3.3V Auxiliary Supply Hot Swap™ Controller
  • Adjustable Foldback Current Limit with Circuit Breaker
  • Adjustable Supply Voltage Power-Up Rate
  • High Side Drive for External N-Channel FETs
  • –12V and 12V On-Chip Switches
  • Fault and Power Good Outputs
参数
LTC4241 参数
应用
  • PCI-Based Servers
  • Computer Systems
典型应用图

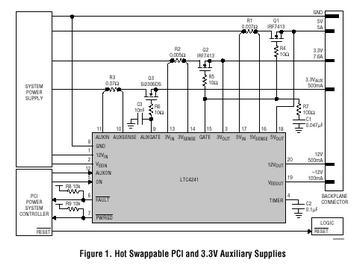

LTC4241 典型应用
LTC4241 订购信息和价格参考Package Variations and Pricing
器件型号 封装 引脚 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量) *
LTC4241CGN SSOP 20 C $2.15 $1.75
LTC4241CGN#PBF SSOP 20 C $2.15 $1.75
LTC4241CGN#TR SSOP 20 C $1.81
LTC4241CGN#TRPBF SSOP 20 C $1.81
LTC4241IGN SSOP 20 I $2.55 $2.05
LTC4241IGN#PBF SSOP 20 I $2.55 $2.05
LTC4241IGN#TR SSOP 20 I $2.11
LTC4241IGN#TRPBF SSOP 20 I $2.11
LTC4241 数据手册及相关资料下载
  1. 数据手册(英文) : LTC4241 - PCI-Bus with 3.3V Auxiliary Hot Swap Controller.PDF
  2. 可靠性数据 : R427 Reliability Data .PDF
  3. 产品选型卡 : Low Voltage Hot Swap Controllers.PDF
