SA575: Low Voltage Compandor
The SA575 Compandor is a precision dual gain control circuit designed for low voltage applications. The SA575's channel 1 is an expandor, while channel 2 can be configured either for expandor, compressor, or automatic level controller (ALC) application.
技术特性
- Operating Voltage Range from 3.0 V to 7.0 V
- Reference Voltage of 100 mVRMS = 0 dB
- One Dedicated Summing Op Amp Per Channel and Two Extra Uncommitted Op Amps
- 600 Ω Drive Capability
- Single or Split Supply Operation
- Wide Input/Output Swing Capability
- 3000 V ESD Protection
终端产品
- Satellite Radios
- Audio Amplifiers
- Electric Organs
- Hearing Aids
- Wireless Microphones
|
应用
- Portable Broadcast Mixers
- Modems

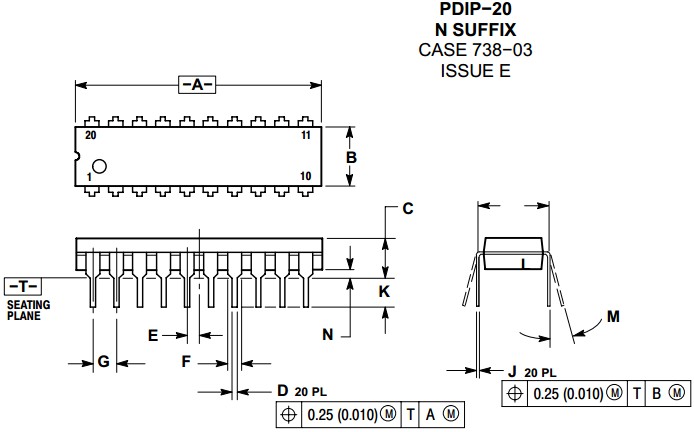

封装图 PACKAGE DIMENSIONS
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| SA575DG |
Active |
|
Low Voltage Compandor |
SOIC-20W |
751D-05 |
3 |
Tube |
38 |
$2.69 |
| SA575DR2G |
Active |
|
Low Voltage Compandor |
SOIC-20W |
751D-05 |
3 |
Tape and Reel |
1000 |
$2.69 |
| SA575DTBG |
Active |
|
Low Voltage Compandor |
TSSOP-20 |
948E-02 |
1 |
Tube |
75 |
$1.4025 |
| SA575DTBR2G |
Active |
|
Low Voltage Compandor |
TSSOP-20 |
948E-02 |
1 |
Tape and Reel |
2500 |
$1.4025 |
| SA575NG |
Lifetime |
|
Low Voltage Compandor |
PDIP-20 |
738-03 |
|
Tube |
18 |
$1.4025 |
