RFHA1006 225MHz to 1215MHz, 9W GaN Wideband Power Amplifier

The RFHA1006 is a wideband Power Amplifier designed for CW and pulsed applications such as wireless infrastructure, RADAR, two way radios and general purpose amplification. Using an advanced high power density Gallium Nitride (GaN) semiconductor process, these high-performance amplifiers achieve high efficiency, flat gain, and large instantaneous bandwidth in a single amplifier design. The RFHA1006 is an input matched GaN transistor packaged in an air cavity ceramic package which provides excellent thermal stability through the use of advanced heat sink and power dissipation technologies. Ease of integration is accomplished through the incorporation of optimized input matching network within the package that provides wideband gain and power performance in a single amplifier. An external output match offers the flexibility of further optimizing power and efficiency for any sub-band within the overall bandwidth.

技术特性 Features

Advanced GaN HEMT Technology
Output Power of 9W
Advanced Heat-Sink Technology
225MHz to 1215MHz Instantaneous Bandwidth
Input Internally Matched to 50Ω
28V Operation Typical Performance
- Output Power 39.5dBm
- Gain 16dB
- Power Added Efficiency 60%
-40°C to 85°C Operating Temperature
Large Signal Models Available

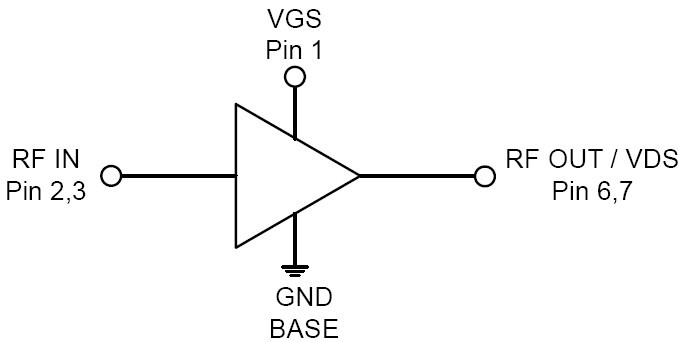

功能框图 Functional Block Diagram

RFHA1006 产品实物图

技术指标

Frequency Range (Min) (MHz):	225
Frequency Range (Max) (MHz):	1215
Gain (dB):	16
VSUPPLY (V):	28
ISUPPLY (mA):	88
Package:	AlN Leadless Chip Carrier/SO8

应用领域 Applications

Class AB Operation for Public Mobile Radio
Power Amplifier Stage for Commercial Wireless Infrastructure
General Purpose Tx Amplification
Test Instrumentation
Civilian and Military Radar

订购信息 Ordering Information

RFHA1006S2 2-Piece sample bag
RFHA1006SB 5-Piece bag
RFHA1006SQ 25-Piece bag
RFHA1006SR 100 Pieces on 7” short reel
RFHA1006TR7 750 Pieces on 7” reel
RFHA1006PCBA-410 Fully assembled evaluation board 225MHz to 1215MHz;28V operation

订购信息 Ordering Information

订购型号	MOQ*	INC*	Packaging and Shipping Details	QTY	Per 1 EA
RFHA1006SB	5 EA	5 EA	Standard 5 Piece Bag Shipping From Greensboro	1+	$128.00
RFHA1006SQ	25 EA	25 EA	Standard 25 Piece Bag Shipping From Greensboro	25+	$75.30
RFHA1006SR	100 EA	100 EA	Standard 100 Piece 7" Short Reel Shipping From Greensboro	100+	$64.00
RFHA1006TR13	750 EA	750 EA	Standard 750 Shipping From Greensboro
RFHA1006PCBA-410	1 EA	1 EA	Standard 1 Shipping From Greensboro	1+	$500.00

应用技术支持与电子电路设计开发资源下载	大小(KB)	版本信息
RFHA1006 数据资料DataSheet下载：PDF	1623	DS120418
