RFHA1020 280W GaN Wide-Band Pulsed Power Amplifier
The RFHA1020 is a 50V 280W high power discrete amplifier designed for L-Band pulsed radar, air traffic control and surveillance and general purpose broadband amplifier applications. Using an advanced high power density Gallium Nitride (GaN) semiconductor process, these high performance amplifiers achieve high output power, high efficiency, and flat gain over a broad frequency range in a single package. The RFHA1020 is a matched power transistor packaged in a hermetic, flanged ceramic package. The package provides excellent thermal stability through the use of advanced heat sink and power dissipation technologies. Ease of integration is accomplished through the incorporation of single, optimized matching networks that provide wideband gain and power performance in a single amplifier.
技术特性 Features
- Wideband Operation: 1.2GHz to 1.4GHz
- Advanced GaN HEMT Technology
- Advanced Heat-Sink Technology
- Supports Multiple Pulse Conditions
- 10% to 20% Duty Cycle
- 100μs to 1ms Pulse Width
- Integrated Matching Components for High Terminal Impedances
- 50V Operation Typical Performance:
- Output Pulsed Power: 280W
- Pulse Width: 100µs, Duty Cycle 10%
- Small Signal Gain: 15dB
- High Efficiency (55%)
- - 40°C to 85°C Operating Temperature

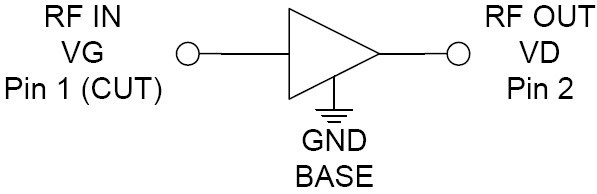

功能框图 Functional Block Diagram
应用领域 Applications
- Radar
- Air Traffic Control and Surveillance
- General Purpose Broadband Amplifier
|
技术指标
| Frequency Range (Min) (MHz): |
1200 |
| Frequency Range (Max) (MHz): |
1400 |
| Gain (dB): |
15 |
| VSUPPLY (V): |
50 |
| ISUPPLY (mA): |
440 |
| Package: |
Flanged Ceramic, 2-pin |
RFHA1020 产品实物图
订购信息 Ordering Information
- RFHA1020S2 2-Piece sample bag
- RFHA1020SB 5-Piece bag
- RFHA1020SQ 25-Piece bag
- RFHA1020SR 50 Pieces on 7” short reel
- RFHA1020TR13 250 Pieces on 13” reel
- RFHA1020PCBA-410 Fully assembled evaluation board 1.2GHz to 1.4GHz; 50V
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| RFHA1020SB |
5 EA |
5 EA |
Standard 5 Piece Bag Shipping From Greensboro |
1+ |
$967.20 |
| RFHA1020SQ |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Greensboro |
25+ |
$669.50 |
| RFHA1020SR |
50 EA |
50 EA |
Standard 50 Piece 7" Short Reel Shipping From Greensboro |
100+ |
$568.80 |
| RFHA1020TR13 |
250 EA |
250 EA |
Standard 250 Piece 13" Reel Shipping From Greensboro |
|
|
| RFHA1020PCBA-410 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$1850.00 |
