RFPA1003 14.4GHz to 15.4GHz High Linearity Power Amplifier

RFMD's RFPA1003 is a high linearity power amplifier in a surface mount package designed for use in transmitters that operate at frequencies between 14.4GHz to 15.4GHz. It provides 25dB of small-signal gain. This power amplifier is optimized for linear operation with an output third order intercept point (OIP3) of ≥ +42.0dBm. The RFPA1003 is manufactured with depletion mode GaAs pHEMT process.

技术特性 Features

Frequency Range: 14.4GHz to 15.4GHz
Small Signal Gain: 25dB
IM3 at +17dBm (SCL): +50dBc
IM3 at +22dBm (SCL): +40dBc
IM3 at +25dBm (SCL): +35dBc
OIP3 at +25dBm (SCL): +42.5dBm
P1dB: +32.5dBm
RL (Input): 7dB
RL (Output): 18dB
VD: 7.5V
ID: 1.0A
6mm x 6mm QFN

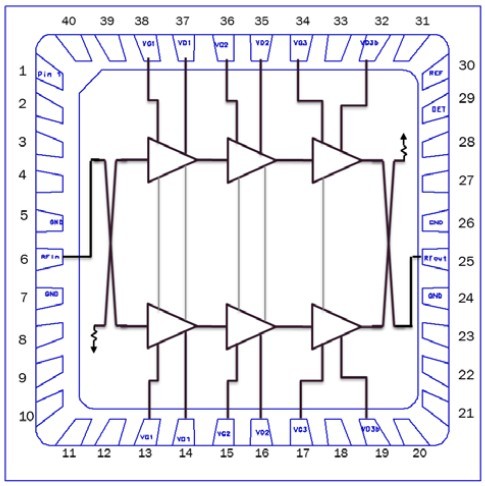

功能框图 Functional Block Diagram

技术指标

Frequency Range (Min) (MHz):	14400
Frequency Range (Max) (MHz):	15400
Gain (dB):	25
OIP3 (dBm):	42.5
VSUPPLY (V):	7.5
Package:	Ceramic QFN

应用领域 Applications

 Point-Point Radio
 Point-Multipoint Radio

产品实物图

订购信息 Ordering Information

RFPA1003S2 2-Piece sample bag
RFPA1003SB 5-Piece bag
RFPA1003SQ 25-Piece bag
RFPA1003SR 100-Piece reel
RFPA1003TR7 750-Piece 7” reel
RFPA1003PCBA-410 Evaluation Board

应用技术支持与电子电路设计开发资源下载	大小(KB)	版本信息
RFPA1003 数据资料DataSheet下载：RFPA1003 PCS CDMA/TDMA/GSM1800 3V PA Driver Amplifier	904	DS120604
