RFPA2013 GaAs HBT Power Amplifier, 0.5W, 400MHz to 2700MHz
The RFPA2013 is a single-stage GaAs HBT power amplifier specifically designed for Wireless Infrastructure applications. It offers ultra-linear operation at a comparably low DC power, making it ideal for next generation radios requiring high efficiency. Its external matching allows for use across various radio platforms within 400MHz to 2700MHz. The RFPA2013 offers a low noise figure, making it an excellent solution for 2nd and 3rd stage LNAs.
技术特性 Features
- -60dBc ACPR at 15.5dBm WCDMA
- 0.5W Output Power (P1dB)
- NF = 3.8dB at 2140MHz
- Gain = 15.7dB at 2140MHz
- Power-Down Capability
应用领域 Applications
- GaAs Pre-Driver for Base Station Amplifiers
- PA Stage for Commercial Wireless Infrastructure
- 2nd or 3rd Stage LNAs
- Class AB Operation for GSM,DCS, PCS, UMTS, WiMAX, TDSCDMA,LTE Transceiver Applications

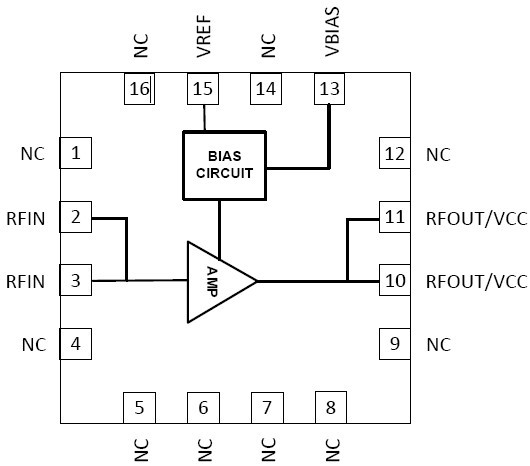

功能框图 Functional Block Diagram
|
技术指标
| Frequency Range (Min) (MHz): |
400 |
| Frequency Range (Max) (MHz): |
2700 |
| Gain (dB): |
15.7 |
| NF (dB): |
3.8 |
| OP1dB (dBm): |
27 |
| OIP3 (dBm): |
41.5 |
| VSUPPLY (V): |
5 |
| ISUPPLY (mA): |
165 |
| Package: |
QFN |
产品实物图
订购信息 Ordering Information
- RFPA2013SR 7” Sample reel with 100 pieces
- RFPA2013SQ Sample bag with 25 pieces
- RFPA2013TR7 7” Reel with 750 pieces
- RFPA2013TR13 13” Reel with 2500 pieces
- RFPA2013PCK-410 2110MHz to 2170MHz PCBA with 5-piece sample bag
- RFPA2013PCK-411 2600MHz to 2700MHz PCBA with 5-piece sample bag
- RFPA2013PCK-412 2550MHz to 2650MHz PCBA with 5-piece sample bag
|
| 应用技术支持与电子电路设计开发资源下载 |
大小(KB) |
版本信息 |
| RFPA2013 数据资料DataSheet下载：RFPA2013 PCS CDMA/TDMA/GSM1800 3V PA Driver Amplifier |
2135 |
DS120227 |
