RFPA2089 InGaP HBT Power Amplifier 0.25W, 50MHz to 2700MHz
The RFPA2089 is a single-stage InGaP HBT power amplifier specifically designed for wireless infrastructure applications. It offers high-gain linear operation at a comparably low DC power making it ideal for next generation radios requiring high efficiency. Its external matching allows for use across various radio platforms.
技术特性 Features
- -60dBc ACPR at 13dBm WCDMA
- 0.25W Output Power (P1dB)
- Excellent Linearity to DC Power Ratio
- High Gain: 17.6dB at 2.65GHz
- Single-Supply 5V Operation
- Class 2 (2000V) HBM ESD

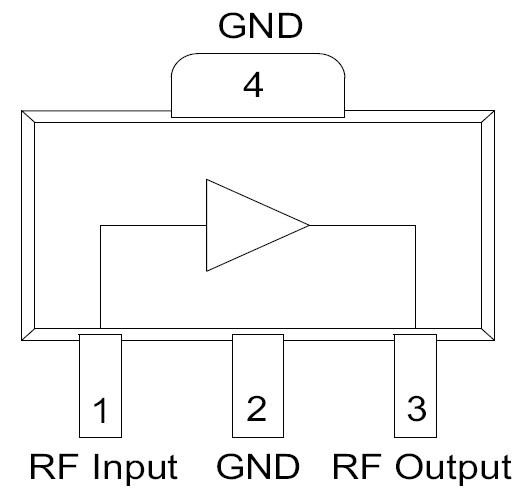

功能框图 Functional Block Diagram
应用领域 Applications
- Driver Amplifier for Base Station Transceivers
- PA Stage for Commercial Wireless Infrastructure
- IF Amplifier
- GSM, DCS, PCS, UMTS, WiMAX,LTE Transceiver Application
|
技术指标
| Frequency Range (Min) (MHz): |
50 |
| Frequency Range (Max) (MHz): |
2700 |
| Gain (dB): |
17.6 |
| NF (dB): |
3.9 |
| OP1dB (dBm): |
24 |
| OIP3 (dBm): |
38.5 |
| VSUPPLY (V): |
5 |
| ISUPPLY (mA): |
138 |
| Package: |
SOT-89 |
产品实物图
订购信息 Ordering Information
- RFPA2089SR 7” Reel with 100 pieces
- RFPA2089SQ Sample bag with 25 pieces
- RFPA2089TR7 7” Reel with 750 pieces
- RFPA2089TR13 13” Reel with 2500 pieces
- RFPA2089PCK-410 2.11GHz to 2.17GHz PCBA with 5-piece sample bag
- RFPA2089PCK-411 2.6GHz to 2.7GHz PCBA with 5-piece sample bag
- RFPA2089PCK-412 869MHz to 894MHz PCBA with 5-piece sample bag
|
| 应用技术支持与电子电路设计开发资源下载 |
大小(KB) |
版本信息 |
| RFPA2089 数据资料DataSheet下载：RFPA2089 PCS CDMA/TDMA/GSM1800 3V PA Driver Amplifier |
1439 |
DS120620 |
