RFPA2189 GaAs HBT Power Amplifier 0.5W, 400MHz to 2700MHz
The RFPA2189 is a single-stage GaAs HBT power amplifier specifically designed for Wireless Infrastructure applications. It offers ultra-linear operation at a comparably low DC power making it ideal for next generation radios requiring high efficiency. Its external matching allows for use across various radio platforms within 400MHz to 2700MHz. The RFPA2189 offers low noise figure making it an excellent solution for 2nd and 3rd stage LNAs.
技术特性 Features
- -60dBc ACPR at 16dBm WCDMA
- 0.5W Output Power (P1dB)
- Excellent Linearity to DC Power Ratio
- NF = 3.0dB at 880MHz
- Single-Supply 5V Operation
- Class 1C (1000V) HBM ESD

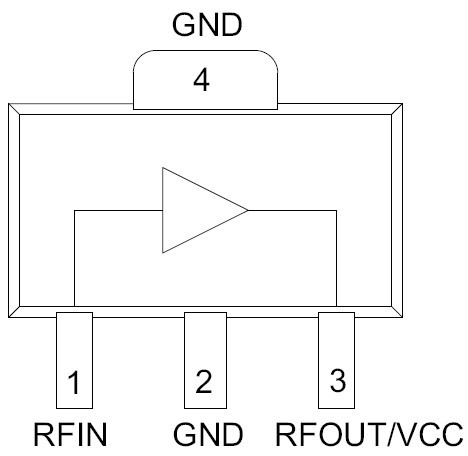

功能框图 Functional Block Diagram
产品实物图
|
技术指标
| Frequency Range (Min) (MHz): |
400 |
| Frequency Range (Max) (MHz): |
2700 |
| Gain (dB): |
19.5 |
| NF (dB): |
2.8 |
| OP1dB (dBm): |
27.5 |
| OIP3 (dBm): |
43 |
| VSUPPLY (V): |
5 |
| ISUPPLY (mA): |
155 |
| Package: |
SOT-89 |
应用领域 Applications
- GaAs Pre-Driver for Base Station Amplifiers
- PA Stage for CommercialWireless Infrastructure
- 2nd or 3rd Stage LNAs
- Class AB Operation for GSM,DCS, PCS, UMTS, WiMAX, LTE
Transceiver Applications
订购信息 Ordering Information
- RFPA2189SR 7” Reel with 100 pieces
- RFPA2189SQ Sample bag with 25 pieces
- RFPA2189TR7 7” Reel with 2500 pieces
- RFPA2189PCK-410 869MHz to 894MHz PCBA with 5-piece sample bag
- RFPA2189PCK-411 2110MHz to 2170MHz PCBA with 5-piece sample bag
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| RFPA2189PCK-410 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$150.00 |
| RFPA2189SQ |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Greensboro |
1+ |
$4.29 |
| RFPA2189SR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Greensboro |
100+ |
$3.00 |
| RFPA2189TR7 |
750 EA |
750 EA |
Standard 750 Piece 7" Reel Shipping From Greensboro |
750+ |
$2.00 |
| RFPA2189TR13 |
2500 EA |
2500 EA |
Standard 2500 Piece 13" Reel Shipping From Greensboro |
|
|
| RFPA2189PCK-411 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$150.00 |
| 应用技术支持与电子电路设计开发资源下载 |
大小(KB) |
版本信息 |
| RFPA2189 数据资料DataSheet下载：RFPA2189 PCS CDMA/TDMA/GSM1800 3V PA Driver Amplifier |
858 |
DS110420 |
