RFPA3807 GaAs HBT 400 MHz to 2700 MHz Linear Power Amplifier
The RFPA3807 is a GaAs HBT linear power amplifier specifically designed for Wireless Infrastructure applications. Using a highly reliable GaAs HBT fabrication process, this high performance single-stage amplifier achieves ultra-high linearity over a broad frequency range. It also offers low noise figure making it an excellent solution for 2nd and 3rd stage LNAs. The RFPA3807 also exhibits excellent thermal performance through the use of a thermally-enhanced plastic surface-mount slug package.
技术特性 Features
- High Linearity: OIP3=46dBm at 880MHz
- Low Noise: NF<4dB
- Low DC Power: 5V, 90mA
- 400MHz to 2700MHz Operation
- Thermally Enhanced Slug Package

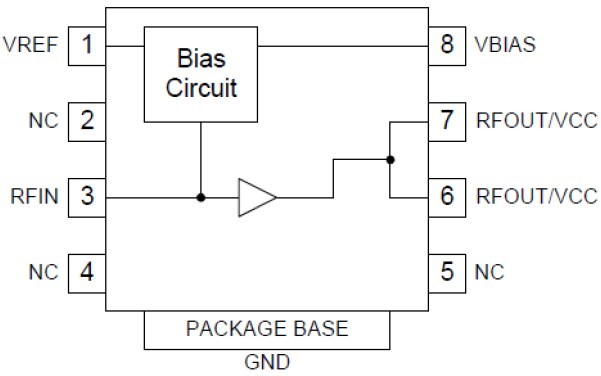

功能框图 Functional Block Diagram
应用领域 Applications
- GaAs Pre-Driver for Base Station Amplifiers
- PA Stage for Commercial Wireless Infrastructure
- Class AB Operation for DCS, PCS,UMTS, and WLAN Transceiver Applications
- 2nd/3rd Stage LNA for Wireless Infrastructur
|
技术指标
| Frequency Range (Min) (MHz): |
400 |
| Frequency Range (Max) (MHz): |
2700 |
| Gain (dB): |
15.8 |
| NF (dB): |
3.5 |
| OP1dB (dBm): |
25 |
| OIP3 (dBm): |
43 |
| VSUPPLY (V): |
5 |
| ISUPPLY (mA): |
90 |
| Package: |
SOIC-8 |
产品实物图
订购信息 Ordering Information
- RFPA3807SQ Sample Bag with 25 pieces
- RFPA3807SR 7” Reel with 100 pieces
- RFPA3807TR7 7” Reel with 750 pieces
- RFPA3807TR13 13” Reel with 2500 pieces
- RFPA3807PCK-410 869MHz to 960MHz PCBA with 5-piece Sample Bag
- RFPA3807PCK-411 2110MHz to 2170MHz PCBA with 5-piece Sample Bag
|
