RFPA3809 GaAs HBT 400MHz to 2700MHz Linear Power Amplifier
The RFPA3809 is a GaAs HBT linear power amplifier specifically designed for Wireless Infrastructure applications. Using a highly reliable GaAs HBT fabrication process, this high performance single-stage amplifier achieves ultra-high linearity over a broad frequency range. It also offers low noise figure making it an excellent solution for 2nd and 3rd stage LNAs. The RFPA3809 also exhibits excellent thermal performance through the use of a thermally-enhanced plastic surface-mount slug package.
技术特性 Features
- High Linearity: OIP3=49dBm (880MHz)
- Low Noise: NF=3.1dB (2140MHz)
- P1dB>29dBm
- 400MHz to 2700MHz Operation
- Thermally Enhanced Slug Package
应用领域 Applications
- GaAs Pre-Driver for Base Station Amplifiers
- PA Stage for Commercial Wireless Infrastructure
- Class AB Operation for DCS, PCS,UMTS, LTE, and WLAN Transceiver Applications
- 2nd/3rd Stage LNA for Wireless Infrastructure

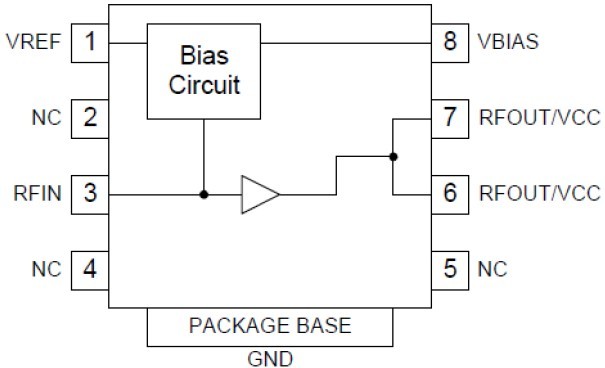

功能框图 Functional Block Diagram
|
技术指标
| Frequency Range (Min) (MHz): |
400 |
| Frequency Range (Max) (MHz): |
2700 |
| Gain (dB): |
17 |
| NF (dB): |
3.9 |
| OP1dB (dBm): |
29 |
| OIP3 (dBm): |
49 |
| VSUPPLY (V): |
5 |
| ISUPPLY (mA): |
275 |
| Package: |
SOIC-8 |
产品实物图
订购信息 Ordering Information
- RFPA3809SQ Sample Bag with 25 pieces
- RFPA3809SR 7" Reel with 100 pieces
- RFPA3809TR7 7" Reel with 750 pieces
- RFPA3809TR13 13" Reel with 2500 pieces
- RFPA3809PCK-410 869MHz to 894MHz PCBA with 5-piece Sample Bag
- RFPA3809PCK-411 2110MHz to 2170MHz PCBA with 5-piece Sample Bag
|
订购信息 Ordering Information
| |
|
|
|
|
|
| RFPA3809SQ |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Greensboro |
1+ |
$4.99 |
| RFPA3809SR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Greensboro |
100+ |
$3.49 |
| RFPA3809TR13 |
2500 EA |
2500 EA |
Standard 2500 Piece 13" Reel Shipping From Greensboro |
750+ |
$2.42 |
| RFPA3809PCK-411 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$150.00 |
| 应用技术支持与电子电路设计开发资源下载 |
大小(KB) |
版本信息 |
| RFPA3809 数据资料DataSheet下载：RFPA3809 PCS CDMA/TDMA/GSM1800 3V PA Driver Amplifier |
2698 |
DS100910 |
