ACS108-6S Overvoltage protected AC switch (ACS)
The ACS108-6S belongs to the AC line switch family. This high performance switch can control a load of up to 0.8 A.
The ACS108-6S switch includes an overvoltage crowbar structure to absorb the overvoltage energy, and a gate level shifter driver to separate the digital controller from the main switch. It is triggered with a negative gate current flowing out of the gate pin
技术特性
- Needs no external protection snubber or varistor
- Enables equipment to meet IEC 61000-4-5
- Reduces component count by up to 80%
- Interfaces directly with the micro-controller
- Common package tab connection supports connection of several alternating current switches (ACS) on the same cooling pad
- Integrated structure based on A.S.D.®technology
- Overvoltage protection by crowbar technology
- High noise immunity - static dV/dt > 500 V/μs

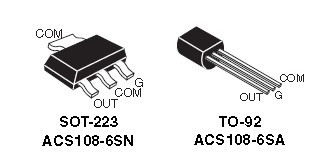

管脚定义图
 |
应用领域
- AC ON/OFF static switching in appliances and
industrial control systems
- Drive of low power high inductive or resistive
loads like:
– relay, valve, solenoid,
– dispenser, door lock
– pump, fan, micro-motor
Benefits
- Needs no external protection snubber or
varistor.
- Enables equipment to meet IEC 61000-4-5.
- Reduces component count by up to 80%.
- Interfaces directly with the micro-controller.
- Common package tab connection supports
- connection of several alternating current
switches (ACS) on the same cooling pad.
- Integrated structure based on ASD(a)
technology
|
ACS108-6S 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| ACS108-6SUF-TR |
Active |
0.45 |
1000 |
SMBflat-3L |
Tape And Reel |
|
ACS108-6SUF-TR |
DATASHEET
| 描述 |
版本 |
大小 |
| ACS108-6S :DS4577: Overvoltage protected AC switch (ACS™) |
4 |
246KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN1296: Ring wave tests with ACS108-6S driving valves and pumps |
3 |
88KB |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM1494: STEVAL-IHT007V1, extension board with AC switches for the STM8S-DISCOVERY kit |
1 |
718KB |
| UM1044: STEVAL-IHT005V1 3.3 V control of ACS™/Triac with STM32™ |
1 |
1649KB |
BOARDS AND TOOLS
| 描述 |
版本 |
| STEVAL-IHT007V1 |
Extension board with ACS switches for STM8S Discovery Kit |
SPICE MODELS
FLYERS
| 描述 |
版本 |
大小 |
| FLACS0606 : New 600V AC switches bring higher capability |
1.0 |
532KB |
