ACS110 Overvoltage protected AC switch
The ACS110 belongs to the AC line switch family built around the ASD concept. This high performance switch circuit is able to control a load up to 1 A.
The ACS switch embeds a high voltage clamping structure to absorb the inductive turn off energy and a gate level shifter driver to separate the digital controller from the main switch. It is triggered with a negative gate current flowing out of the gate pin
技术特性
- Blocking voltage : VDRM / VRRM = +/-700V
- Avalanche controlled : VCL typ = 1100 V
- Nominal conducting current : IT(RMS) = 1A
- Switch integrated driver
- High noise immunity : static dV/dt >500V/µs

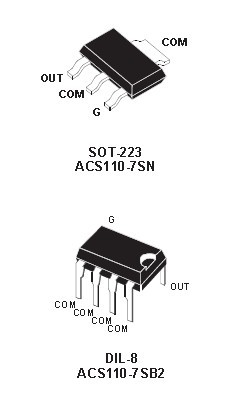

管脚定义图
 |
MAIN APPLICATIONS
- AC static switching in appliance control systems
- Drive of low power high inductive or resistive
loads like
- relay, valve, solenoid, dispenser
- pump, fan, micro-motor
- defrost heater
Benefits
- No external protection snubber or varistor
needed
- Enables equipment to meet IEC 61000-4-5& IEC 335-1 (DIL-8 package)
- Reduces component count up to 80 %
- Interfaces directly with the microcontroller
- Eliminates any gate kick back on the
microcontroller
- Allows straightforward connection of several
ACS™ on same cooling pad (SOT-223)
|
ACS110 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| ACS110-7SN |
Active |
0.556 |
1000 |
SOT-223 |
Tape And Reel |
|
ACS110-7SN |
