ACST10 Overvoltage protected AC switch
The ACST10 series belongs to the ACS™/ACST power switch family built with A.S.D.® (application specific discrete) technology. This high performance device is suited to home appliances or industrial systems, and drives loads up to 10 A.
This ACST10 switch has a Triac structure and a high voltage clamping device to absorb the inductive turn-off energy and withstand transients such as those described in the IEC 61000-4-5 standard. The ACST1010-7 needs a low gate current to be activated (IGT< 10 mA) and still shows a high noise immunity complying with IEC 61000-4-4 standard. The ACST1035-7 offers a high static dV/dt immunity of 2 kV/μs minimum
技术特性
- Triac with overvoltage crowbar technology
- Low IGT(< 10 mA) or high immunity(IGT < 35 mA) version
- High noise immunity: static dV/dt > 2000 V/μs
- TO-220FPAB insulated package: 1500 V rms
- Benefits
- Enables equipment to meet IEC 61000-4-5
- High off-state reliability with planar technology
- Need no external over voltage protection
- Reduces the power passive component count
- High immunity against fast transients described in IEC 61000-4-4 standards
|
应用领域
- AC mains static switching in appliance and
industrial control systems
- Drive of medium power AC loads like:
– Universal drum motor of washing machine
– Compressor for fridge or air conditioner

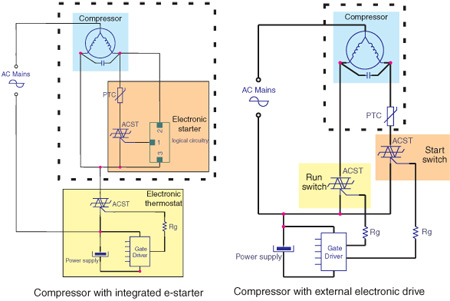

功能框图
 |
