ACST8 Overvoltage protected AC switch

The ACST8 series belongs to the ACS™/ ACST power switch family built around A.S.D.®(application specific discrete) technology. This high performance device is suited to home appliances or industrial systems and drives an induction motor up to 8 A.

This ACST8 device embeds a Triac structure with a high voltage clamping device to absorb the inductive turn off energy and withstand line transients such as those described in the IEC 61000-4-5 standards.

ACST8 shows a high noise immunity complying with IEC standards such as IEC 61000-4-4 (fast transient burst test).

技术特性
  • Triac with overvoltage protection
  • High noise immunity: static dV/dt > 2000 V/μs
  • TO-220FPAB insulated package: 1500 V rms
  • Benefits
    • Enables equipment to meet IEC 61000-4-5
    • High off-state reliability with planar technology
    • Needs no external overvoltage protection
    • Reduces the power passive component count
    • High immunity against fast transients described in IEC 61000-4-4 standards
MAIN APPLICATIONS
  • AC static switching in appliance & industrial control systems
  • Washing machine with bi-rotational induction motor drive
  • Induction motor drive for:
    - refrigerator / freezer compressor
    - air conditioning compresso



BENEFITS
  • Enables equipment to meet EN61000-4-5 standard
  • High off-state reliability with planar technology
  • Need no external overvoltage protection
  • Reduces the power component count
功能框图

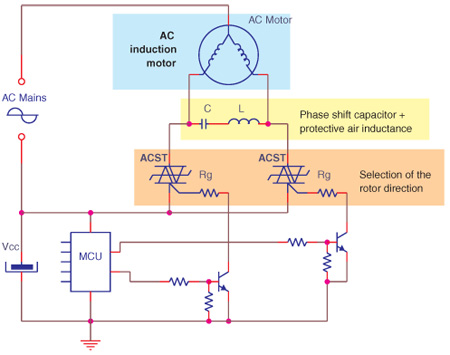

ACST8 功能框图
ACST8 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
ACST830-8FP Active 0.885 1000 TO-220FPAB Tube   ACST830-8FP
ACST830-8GTR Active 0.924 1000 D²PAK Tape And Reel   ACST830-8GTR
ACST830-8T Active 0.813 1000 TO-220AB Tube   ACST830-8T
